SoundTube RF31-EZ-T 3 inch Premium Ceiling Speaker with Transformer

Home /

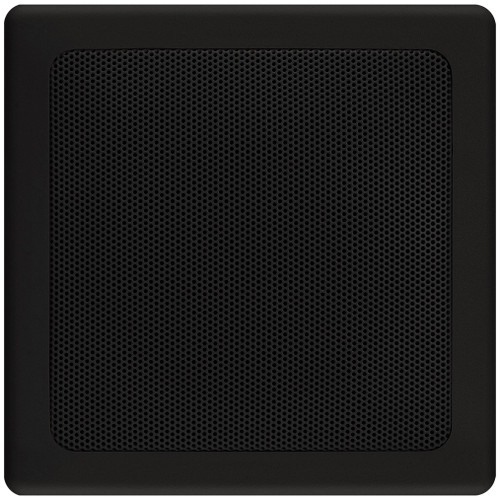

SoundTube RF31-EZ-T 3" Premium Ceiling Speaker with Transformer - Black (Discontinued)

Description

Details

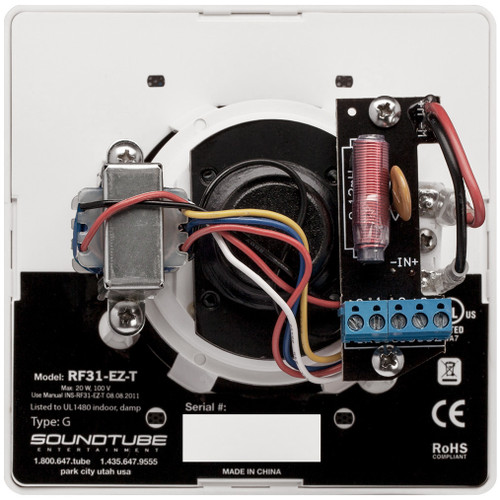

The SoundTube RF31-EZ-T is a premium full-range 3" speaker with a 10W transformer for applications requiring 25, 70, and 100V audio solutions. The RF31-EZ-T mounts in most dual-gang junction boxes. The RF31- EZ-T incorporates a low-profile grille with a total visible footprint of 4.75" square for ultra-compact installations. All exposed components in the RF31-EZ-T are completely weatherized for indoor and outdoor applications.

Features

Features

Integrated 10w transformer
One 3" full-range high-excursion, weather-resistant, high-fidelity polypropylene driver with butyl rubber surround and neodymium magnet
Ultra-compact design with a total visible footprint of 4.75" square
Weatherized components for indoor/outdoor applications
Corrosion-resistant, powder-coated aluminum grille with snap fit attachment
Rapid installation into dual-gang junction box using four stainless steel screws (junction box not included)
UL 1480 planned
High-quality white paint finish grille
Included accessories: Paintable white aluminum snap-on grille, paint mask and four stainless steel mounting screws
Optional accessories: Theft-resistant stainless steel grille (AC-RF31-TRG) and 10" powered subwoofer (SM1001p)

Specification

Frequency Response (-3 dB)	150 Hz - 22 kHz
Low Frequency (-10 dB)	100 Hz - 22 kHz
Sensitivity	86.0 dB
Power Capacity RMS	20W
Max SPL dB @ 1 M	99 dB
Nominal Impedance	8 ohm
Full-Range Drivers	76.1 mm (3") Polypropylene driver with butyl rubber surround
Connections	Four-position terminal block
Colors	White (paintable grille)
Visible Dimensions (H x W)	4.75" (120.7 mm) x 4.75" (120.7 mm)
Weight	1.3 lbs (0.58 kg)
Shipping Weight	2.4 lbs (1.1 kg)
