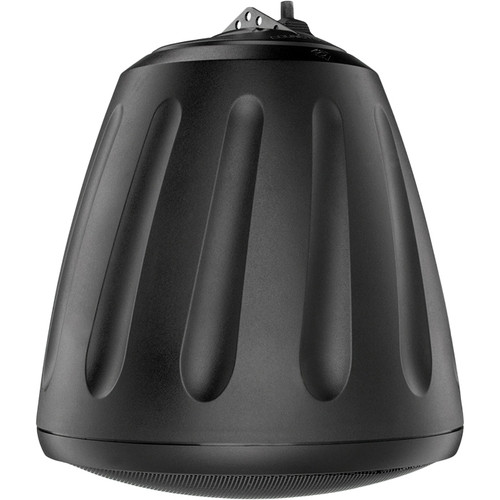

SoundTube RS1001i-II-T 10" Hanging Ceiling Subwoofer with Transformer - Black

SoundTube RS1001i-II-T 10" Hanging Ceiling Subwoofer with Transformer - Black

SoundTube RS1001i-II-T 10" Hanging Ceiling Subwoofer with Transformer - Black

By SoundTube

SoundTube RS1001i-II-T 10" Hanging Ceiling Subwoofer with Transformer - Black

Part #:

RS1001i-II-T-BK

Model #:

RS1001i-II-T

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The SoundTube RS1001i-II-T is a 10" open-ceiling or surface mount subwoofer tuned for maximum output and performance across the operating bandwidth.

Description

SoundTube RS1001i-II-T 10" Hanging Ceiling Subwoofer with Transformer

The RS1001i is a 10" open-ceiling or surface mount subwoofer tuned for maximum output and performance across the operating bandwidth. By incorporating a 10" polypropylene woofer and a butyl rubber surround in a tuned and ported enclosure, this speaker delivers maximum low-frequency response (38 Hz 450 Hz, - 10 dB, independently verified) and high SPL (105 dB). Mounting hardware includes high-quality UL listed cables and integrated SpeedClamp™ self-locking wire clamp for fast, easy and secure installation. For easy ordering, stocking, and installation, the RS1001i-II-T includes a five-position tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position.

Features

One 10" polypropylene cone with butyl rubber surround attached to a reinforced baffle
Baffle-mounted, flared and tuned ports for maximum efficiency and frequency response
High-output and maximum efficiency with an accentuated 70 Hz peak to maximize listener's low-frequency experience
150W, low insertion-loss transformer with an easy-access, five-position tap switch for 25-, 70.7-, 100V and transformer bypass positions
Weatherized components including powder-coated steel grille, hanging hardware and a durable ABS enclosure for indoor/outdoor applications
Includes UL listed hanging hardware with high-quality cables and integrated SpeedClamp self-locking wire clamp
UL 1480 (UEAY) and CE-approved. Hanging hardware is UL 2239-approved
High-quality black or white painted finish, custom colors available
Included accessories: hanging hardware, Euroblock connector, terminal weather boot

Specifications

Enclosure Properties	ABS Glass Fiber Reinforced, Injection Molded, Ported
Source Inputs	4 Pin 5.08 mm Euroblock
Crossover Frequency	100.0 Hz
Frequency Response (± 10 dB)	38 Hz - 450 Hz
Frequency Response (± 3 dB)	53 Hz - 175 Hz
Grille Properties	Powder-Coated, Steel
Max. Continuous Power RMS	150W
Nominal Impedance (Ω Ohms)	8 Ohms
Subwoofer Driver	10" Polypropylene Cone w/ Butyl Rubber Surround
Dimensions (H x Dia)	17.23" (437.6 mm) x 14.82" (376.4 mm)
Shipping Weight	30.2 lbs (13.7 kg)
