SoundTube SM500i-II 5.25" High Power Surface Mount Speaker - White (Discontinued)
SoundTube SM500i-II 5.25" High Power Surface Mount Speaker - White (Discontinued)
SoundTube SM500i-II 5.25" High Power Surface Mount Speaker - White (Discontinued)
SoundTube SM500i-II 5.25" High Power Surface Mount Speaker - White (Discontinued)
SoundTube SM500i-II 5.25" High Power Surface Mount Speaker - White (Discontinued)
SoundTube SM500i-II 5.25" High Power Surface Mount Speaker - White (Discontinued)
By SoundTube

SoundTube SM500i-II 5.25" High Power Surface Mount Speaker - White (Discontinued)

Write a Review
Part #:
SM500i-II-WH
Model #:
SM500i-II
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The SoundTube SM500i-II 5.25" surface mount speaker features BroadBeam waveguide technology delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker. It has one 5.25" (133 mm) polypropylene woofer and one 1" (25 mm) convex titanium tweeter with FerroFluid cooling.

Description

SoundTube SM500i-II 5.25" Surface Mount Speaker

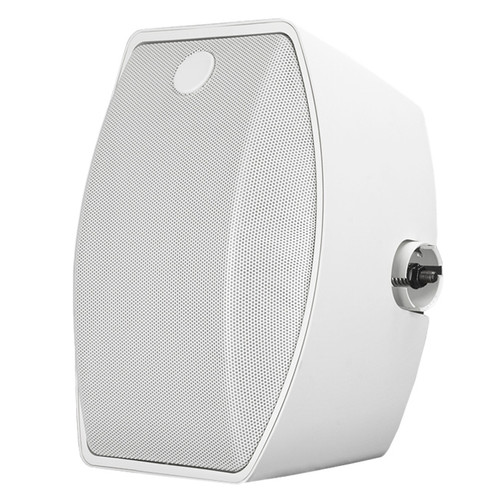

The SM500i-II utilizes the patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity as well as BroadBeam® waveguide technology to deliver a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker. The SM500I-II has one 5.25 inch (133 mm) polypropylene woofer and one 1.0 inch (25 mm) convex titanium tweeter with FerroFluid™ cooling. The speakers 86.0 dB average sensitivity offers high output capabilities and reduced amplification costs and the six-position selectable tap switch for 25-, 70.7- and 100-volt applications provides easy access. The included mounting system with vertical and horizontal pivoting allow the SM500i-II to be aimed anywhere within the installation space and the low profile enclosure design keeps the speaker close to the wall. Safety cable with speaker mounting bolt, Euroblock connector, and wall mount bracket are included.

Features
  • BroadBeam waveguide technology delivers a consistent dispersion pattern
  • Up to 10 kHz for maximum coverage area per speaker
  • One 5.25" polypropylene woofer and one 1.0" convex titanium tweeter with FerroFluid cooling
  • 86.0 dB average sensitivity offers high output capabilities and reduced amplification costs
  • Includes stainless steel screws and grille for severe weather, outdoor applications
  • Easy access, six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position
  • Patented ZeroReflection enclosure technology for optimal sound reproduction and cabinet rigidity
  • Aluminum grille with powder-coat finish
  • Includes the new SM500i-II-WX Stealth bracket mounting system
  • Vertical and horizontal pivoting allow the SM500i-II-WX to be aimed anywhere within the installation space
  • Low profile enclosure design keeps the speaker close to the wall
  • UL 1480 (UEAY) planned
  • High-quality black or white paint finish
  • Included Accessories: Safety cable with speaker mounting bolt, Euroblock connector, wall mount bracket and terminal weather boot

Specifications
Frequency Response (-3 dB) 86 Hz – 22 kHz
Low Frequency (-10 dB) 60 Hz – 22 kHz
Sensitivity 86 dB
Power Capacity RMS 75W
Max SPL dB @ 1 M 102 dB
Nominal Impedance 4 ohm
Transformer Options 25 / 70.7 / 100 Volt option with a 4 Ohm direct
Tweeter 1.0" (25 mm) Convex Aluminum w/BroadBeam Waveguide
Connections 4-pin Euroblock
Regulatory- IP IP44 Approved
Color White
Dimensions (H x W x D) 11.4" (289.56 mm) x 8.36" (212.26 mm) x 10.48" (266.30 mm)
Weight 9.5 lbs (4.3 kg)
Shipping Weight 11 lbs (5 kg)
