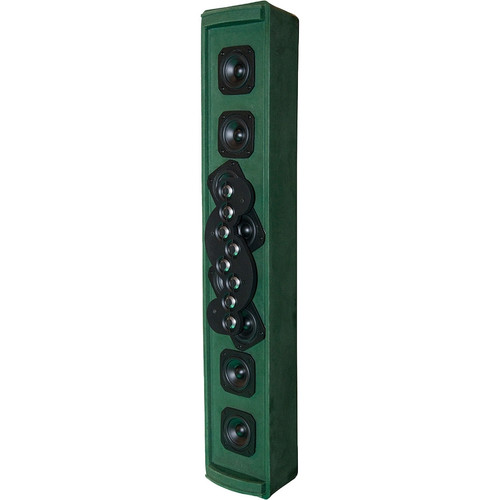

SoundTube XT-Spyke Outdoor Line Array Pole Mount Speaker

The SoundTube XT-Spyke is not a typical line array column loudspeaker. It is an advanced LAPS (Line Array-Point Source) 2-way design that provides a very short near-field extent and robust far-field performance. Frequency tapering of low and high-frequency pass bands allows the XTSpyke to maintain a more consistent ratio of array height to radiated wavelength, ensuring a stable vertical beamwidth that out-performs many other single box line arrays. Featuring eight 3" woofers and eight 1" high-frequency drivers for extremely smooth high-frequency response, the XT-Spyke achieves superb coverage in an enclosure measuring only 37.37" x 6.8" x 5.5" and includes pole mounting options.

Features

Features

Passive, fixed length, column line array with 2-way design
Eight 3" (76 mm) woofers polypropylene woofers and eight 1" (25 mm) titanium dome tweeters
Optional 120W transformer for 25/70.7/100 Volt applications
Line Array – Point Source (LAPS) technology provides short near-field extent and robust far-field performance
UV-, scratch-, chlorine- and weather resistant with professional-grade components for long-lasting performance and durability
Painted stainless steel grille - custom paintable
Available in green, black or white finish
Flexible mounting options include surface-mount and pole-mount
Weatherproof SpeakOn connectors allow for fast connections and easy daisy chaining
UL 1480 UEAY planned
Included accessories: Stainless steel mounting plate, mounting bolts and safety cable

Specification

System Type	2-way full range line array (Optional 120W transformer for 25/70.7/100 Volt applications)
Impedance (Rated)	8 ohm
Sensitivity dB @ 2.83V / 1 m	92.0 dB
Sensitivity dB @ 1 W/1 m	92.0 dB
Frequency Response (-3 dB)	100 Hz - 20 kHz
Frequnecy Response (-10 dB)	65 Hz - 22 kHz
Max. Program Power	150 W
Max. Continuous Power	300 W
Max. SPL dB @ 1 m	114 dB
Coverage Angle (-6 dB @ 2 kHz)	174° horizontal 25° vertical
Coverage Angle (-6 dB @ 10 kHz)	50° horizontal 20° vertical
Coverage Angle (Avg. 2 to 10 kHz)	180° horizontal 50° vertical (200-10k)
Tap Selector - Optional	5-Position rotary switch with transformer bypass position
Low-Frequency Driver	8 - 3" (76 mm) woofers, polypropylene
High-Frequency Driver	8 - 1" (25 mm) titanium dome tweeters
Enclosure Material	Roto-molded polyethylene plastic
Grille	Painted coated stainless steel
Inputs	Weatherproof SpeakOn
Dimensions (H x W x D)	37.37" (949.3 mm) x 6.8" (172.7 mm) x 5.85" (148.5 mm)
Net Weight	17.2 lbs (7.8 kg)
Shipping Weight	26.15 lbs (11.86 kg)
