SpeakerCraft Profile AIM LCR 5 One
By SpeakerCraft

SpeakerCraft Profile AIM LCR 5 One 5.25" In-Wall Loudspeaker

Write a Review
Part #:
ASM54611-2
Model #:
ASM54611-2
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The Profile AIM LCR 5 One delivers powerful, compelling home theater sound in a slim, easy-to-mount in-wall model. The front baffles tilt so you can aim the sound exactly where you want it.

Description
The Profile AIM LCR 5 One delivers powerful, compelling home theater sound in a slim, easy-to-mount in-wall model. The front baffles tilt so you can aim the sound exactly where you want it. The AIM LCR and AIM LCR3 models are available with Profile grilles as an option.

Features
  • Pivoting Woofer Baffle
  • Two 5 1/4" Injection Molded Graphite Cone Woofers with Phase Plugs
  • Pivoting 1" Silk Dome Tweeter
  • Timbre-Matched to All One Series Speakers
  • Sensitivity: 89dB 1W/1m
  • U.S. Patent No. 7,522,742 B2
  • Power Handling: 80 Watts
  • Impedance: 8 Ohms
  • Frequency Response: 55Hz - 20kHz
  • Dimensions: (H x W x D) 9 1/4" x 17 7/16" x 4" (235 mm x 443 mm x 102 mm)
  • Wall Cut-Out: (H x W) 7 1/2" x 14 1/4" (190 mm x 362 mm)

Specifications
Appearance Flangeless Appearance
Woofers Two 5 1⁄4" Graphite Woofers with Phase Plugs
Tweeter Pivoting 1" Silk Dome Tweeter, Pivoting ¾" Silk Dome Tweeter
Timbre-Matched All One Series
Sensitivity 89dB 1W/1m
Power Handling 80 Watts
Impedance 8 Ohms
Frequency Response 55Hz - 20kHz
Wall Cut-Out (H x W) 7 1⁄2" x 14 1⁄4" (190 x 362 mm)
Dimensions with grille (H x W x D) 17 1⁄8" x 9" x 4" (235 x 443 x 102 mm)

DOCUMENTS

Related Products

Sold Out

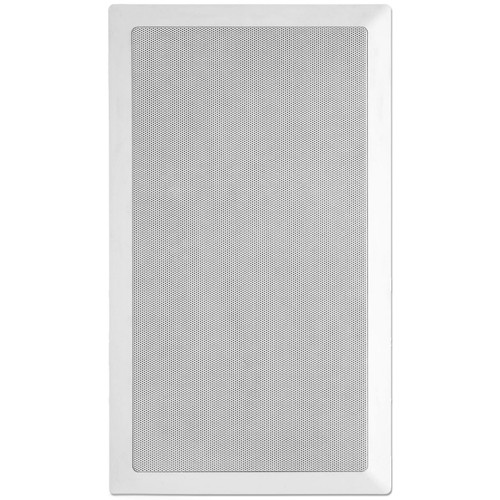

Presence A-LCRS 5.25" In-Wall Center Loudspeaker Presence A-LCRS 5.25" In-Wall Center Loudspeaker Grille On
