Inside the Design
This complete Community stadium sound system is designed to deliver powerful, clear audio for outdoor athletic facilities, stadiums, arenas, and large gathering areas where reliable sound coverage and speech intelligibility are essential. Featuring five Community R.5-94TZ weather-resistant loudspeakers, this system provides high-output sound reinforcement for play-by-play announcements, music, and general public address applications. Each loudspeaker features a 90° x 40° coverage pattern, allowing speakers to be strategically positioned and aimed toward bleachers, spectator seating, athletic fields, and other designated listening areas. The durable, weather-resistant enclosures are engineered to withstand demanding outdoor conditions, while the 70V/100V transformer design supports flexible distributed speaker installations. With 1,000 feet of West Penn 14/2 Aquaseal speaker wire included, this system provides a practical solution for distributing sound throughout larger outdoor facilities.
At the center of the system, the Yamaha MG12 12-channel mixing console provides flexible control over announcements, music, and multiple audio sources. Operators can connect microphones, laptops, media players, and other compatible audio equipment, allowing them to adjust individual input levels and create a balanced mix for different events and activities. The Crown CDi 4000 2-channel power amplifier delivers reliable, high-power amplification with built-in DSP processing for speaker optimization and protection. For music and prerecorded content, the Tascam CD-400U CD and media player supports Bluetooth streaming from compatible smartphones and tablets, CD playback, USB flash drives, SD cards, and AM/FM radio. This versatility allows stadium operators to play warm-up music, team introductions, walk-up songs, halftime entertainment, sponsor messages, prerecorded announcements, and other audio content throughout an event.
For live announcements, this stadium audio system includes both wired and wireless microphone options. The Pure Resonance Audio UC1S dynamic vocal microphone pairs with an adjustable AtlasIED desktop microphone stand to provide a dependable solution for play-by-play announcers, press box operators, and public address personnel. The Pure Resonance Audio WMS1-HH handheld wireless microphone system provides additional flexibility for on-field presentations, award ceremonies, halftime activities, and other events where a microphone cable would limit movement. With automatic frequency scanning, simple pairing, and an operating range of up to 328 feet under suitable conditions, the wireless microphone makes it easy to communicate with audiences from different locations throughout the venue.
Designed for organized operation and convenient transportation, the Gator GRC-12X10 PU mobile audio console rack brings the system's primary audio equipment together in one portable setup. The Yamaha MG12 mixer is secured in the 12U pop-up top section using the Yamaha RKMG12 rackmount kit, allowing operators to adjust the console to a comfortable working angle. The lower 10U rack section accommodates the Tascam media player, wireless microphone receiver, Crown power amplifier, and Gator 3U locking rack drawer for secure accessory storage. Heavy-duty casters allow the rack to be moved between equipment rooms, press boxes, and event locations, while the locking wheels help keep it securely positioned during operation. Complete with the necessary audio interconnect cables and outdoor-rated speaker wire, this versatile stadium sound system is ideal for football, baseball, and soccer facilities, racetracks, school athletic complexes, fairgrounds, and other outdoor venues requiring dependable sound reinforcement.
Sound System Features:
- Five Community R.5-94TZ weather-resistant loudspeakers deliver powerful, high-quality audio with excellent speech intelligibility for stadium announcements, music, and public address applications
- Each loudspeaker features a 90° x 40° coverage pattern, allowing strategic speaker placement and directional sound coverage across bleachers, athletic fields, spectator seating, and other outdoor listening areas
- Durable, UV-resistant enclosures with weather-treated components and corrosion-resistant grilles provide reliable performance in demanding outdoor environments
- Built-in 70V/100V transformers with selectable wattage taps support flexible distributed speaker installations across larger outdoor facilities
- The Crown CDi 4000 2-channel power amplifier delivers 1200 watts per channel at 4 ohms and supports 70V distributed audio applications with built-in DSP processing for speaker optimization
- The Yamaha MG12 12-channel mixing console provides flexible audio control for wired and wireless microphones, media players, laptops, and other compatible audio sources
- Multiple microphone and line-level inputs allow operators to manage play-by-play commentary, announcements, music, and additional audio sources from one central mixing console
- The Tascam CD-400U provides CD, USB, SD card, Bluetooth, and AM/FM playback for pre-game entertainment, team introductions, walk-up music, sponsor messages, and prerecorded announcements
- Pure Resonance Audio WMS1-HH wireless handheld microphone system offers an operating range of up to 328ft under suitable conditions, providing greater freedom of movement for on-field presentations
- The Pure Resonance Audio UC1S wired dynamic vocal microphone features an on/off switch and pairs with the adjustable AtlasIED desktop stand for convenient hands-free announcements and play-by-play commentary
- The Gator GRC-12X10 PU mobile rack features a 12U pop-up mixer section and a separate 10U equipment rack, keeping the audio system organized and conveniently accessible
- The Yamaha RKMG12 rackmount kit secures the mixing console inside the adjustable top section, allowing operators to raise or lower the mixer for comfortable operation and transportation
- Heavy-duty casters, including two locking wheels, allow the equipment rack to be transported and securely positioned at different event locations
- The Gator 3U locking rack drawer provides convenient, secure storage for microphones, cables, connectors, and other small audio accessories

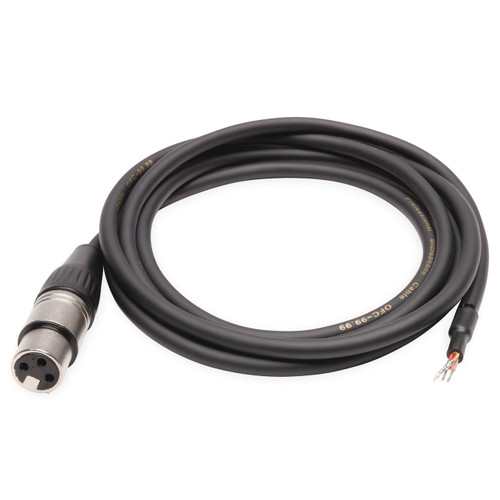

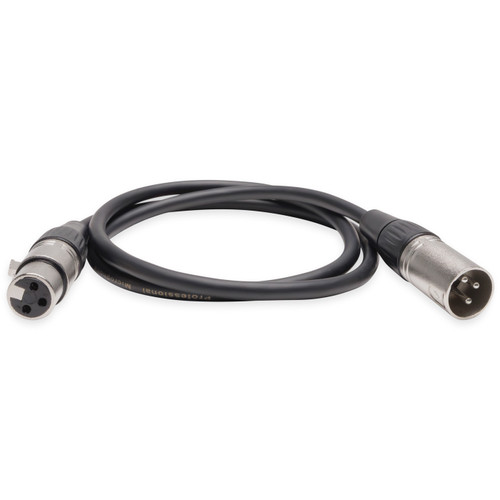

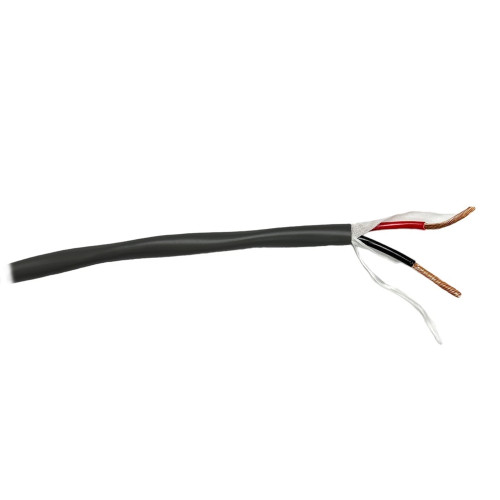

- Included audio patch cables and 1,000 feet of West Penn 14/2 Aquaseal speaker wire provide dependable connectivity and support distributed outdoor speaker installations
About the System Components
Community R.5-94TZ Weather Resistant Loudspeakers
The Community R.5-94TZ is a high-performance, 2-way horn-loaded loudspeaker designed to deliver powerful, intelligible sound for stadiums, athletic fields, and outdoor venues. Featuring a 12" low-frequency driver, 1" high-frequency compression driver, and controlled 90° x 40° coverage pattern, it provides focused sound projection and clear reproduction of speech and music. Its UV-resistant rotomolded enclosure, weather-treated components, and corrosion-resistant grille provide long-term outdoor durability. A built-in 70V/100V autoformer with selectable wattage taps supports flexible distributed audio installations, while the included mounting yoke allows secure positioning and aiming for optimized coverage.

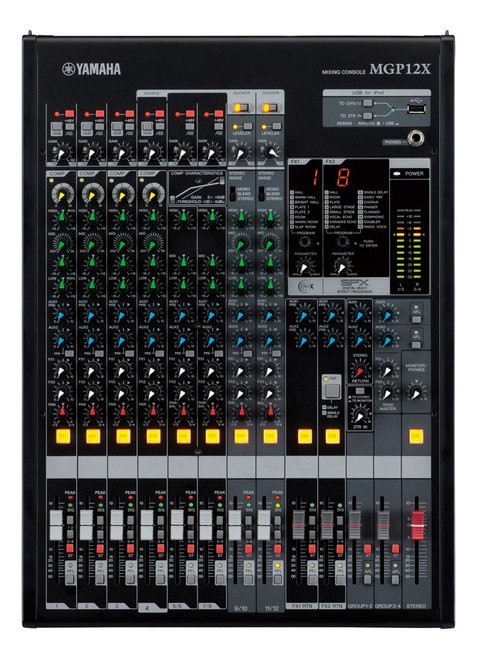

Yamaha MG12 12-Channel Mixing Console
The Yamaha MG12 is a professional 12-channel analog mixing console offering flexible audio control for stadium announcements, music playback, and live events. Its high-quality D-PRE microphone preamps provide clear, natural sound, while multiple microphone and line-level inputs accommodate wired and wireless microphones, media players, laptops, and other compatible audio sources. Individual channel controls, 3-band EQ, high-pass filters, and 1-knob compressors allow precise adjustments for different audio sources. With balanced outputs, flexible routing options, and durable metal construction, the MG12 provides dependable performance and convenient operation for demanding public address applications.

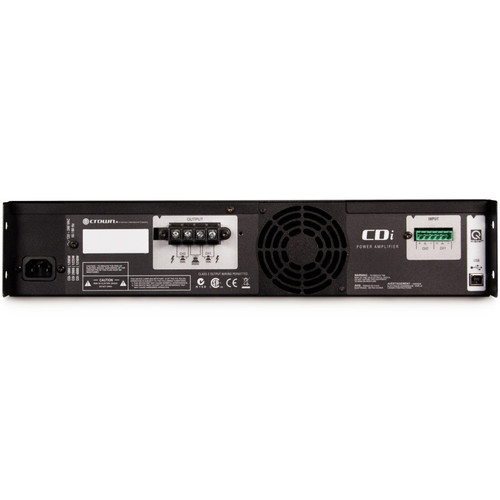

Crown CDi 4000 Power Amplifier 2-Channel, 1200W at 4Ω, 70V/140V
The Crown CDi 4000 is a professional 2-channel power amplifier engineered for powerful, reliable performance in installed sound and distributed audio systems. Delivering 1200 watts per channel at 4 ohms and supporting 70V operation, it provides flexible amplification for the Community stadium loudspeakers. Built-in DSP processing includes crossover filters, EQ, delay, and output limiting to optimize audio performance and help protect connected speakers. Its intuitive front-panel LCD, user-definable presets, integrated protection circuitry, and durable 2U rackmount design make the CDi 4000 a dependable choice for stadiums, athletic facilities, and large outdoor sound installations.

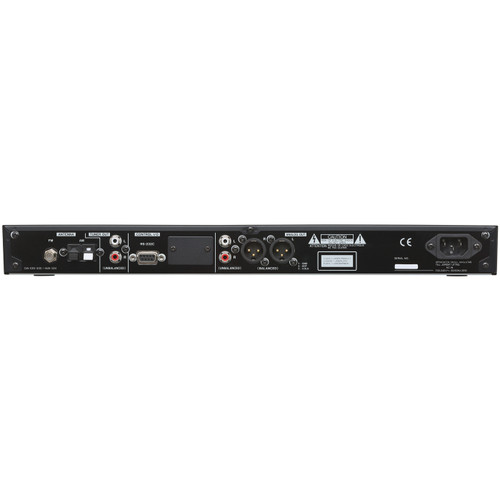

Tascam CD-400U CD/Media Player with AM/FM and Bluetooth
The Tascam CD-400U is a versatile professional media player offering CD, USB, SD card, Bluetooth, and AM/FM playback options for stadium entertainment and public address applications. Operators can play pre-game music, team introductions, walk-up songs, sponsor messages, and prerecorded announcements from multiple sources, while Bluetooth allows wireless streaming from compatible smartphones and tablets. Balanced XLR and unbalanced RCA outputs provide convenient integration with the Yamaha mixer, and features such as Power-on Play, Panel Lock, and an included remote control simplify operation. Its compact 1U rackmount design allows convenient installation in the mobile equipment rack.

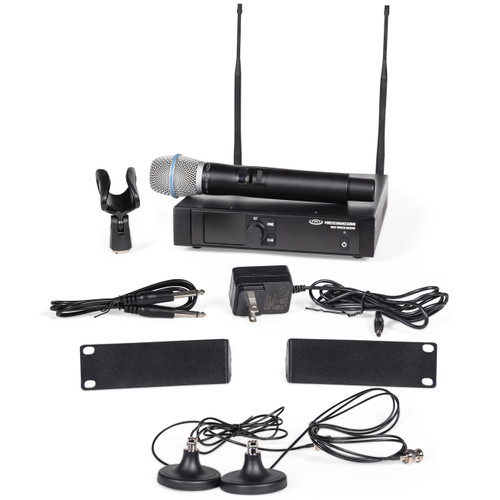

Pure Resonance Audio WMS1-HH Handheld Wireless Microphone System (Band A: 540 - 590 MHz)
The Pure Resonance Audio WMS1-HH is a professional UHF handheld wireless microphone system designed for clear, reliable announcements and presentations without the restrictions of a microphone cable. Operating within the 540 to 590 MHz frequency range, it offers up to 328 feet of wireless range under suitable conditions, making it ideal for on-field announcements, award ceremonies, halftime presentations, and special events. Automatic frequency scanning and infrared synchronization simplify setup, while adjustable EQ allows convenient vocal adjustments. The handheld transmitter provides up to 10 hours of operation using two AA batteries, and the rackmountable receiver offers balanced XLR and unbalanced 1/4" outputs for easy connection to the Yamaha mixer.
Pure Resonance Audio UC1S Microphone with On/Off Switch
The Pure Resonance Audio UC1S dynamic vocal microphone delivers clear, natural speech reproduction for stadium announcements, play-by-play commentary, and public address applications. Its cardioid pickup pattern helps isolate the speaker's voice while minimizing unwanted background noise and feedback. A built-in on/off switch provides convenient microphone control, while the rugged housing, steel mesh grille, and integrated wind and breath noise filter support dependable operation. Paired with the AtlasIED desktop microphone stand, the UC1S provides a practical hands-free solution for press box announcers and public address personnel.

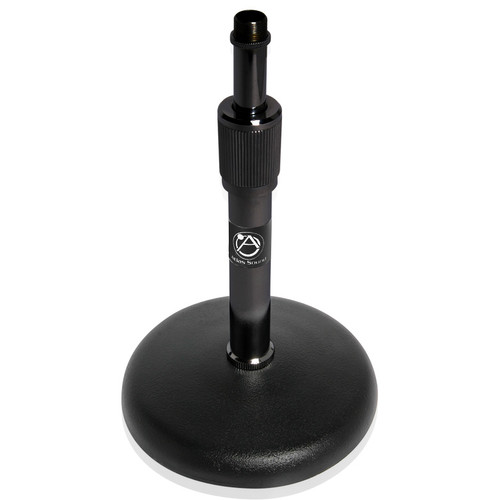

AtlasIED DS7E Desktop Mic Stand
The AtlasIED DS7E adjustable desktop microphone stand provides stable, convenient microphone positioning for stadium announcers, presenters, and public address operators. Its 8" to 13" adjustable height allows comfortable microphone placement at a desk, podium, or press box workstation, while the weighted cast iron base provides dependable stability. Featuring a durable ebony finish and compact design, the DS7E pairs with the included Pure Resonance Audio UC1S microphone to provide hands-free operation during play-by-play commentary and announcements.
Gator GRC-12X10 PU 12U Top, 10U Side Mobile Audio Pop-Up Console Rack with Casters
The Gator GRC-12X10 PU mobile audio console rack provides a durable, portable solution for organizing and protecting professional audio equipment. Featuring a 12U pop-up top section and a separate 10U lower equipment compartment, it accommodates the Yamaha mixer, Crown amplifier, Tascam media player, wireless microphone receiver, and locking storage drawer in one convenient setup. Its adjustable ratcheting top allows the mixer to be raised to a comfortable operating angle and lowered for transportation. Rugged polyethylene construction, threaded rack rails, side handles, and four heavy-duty casters, including two locking wheels, make it ideal for stadiums, press boxes, and mobile sound applications.
