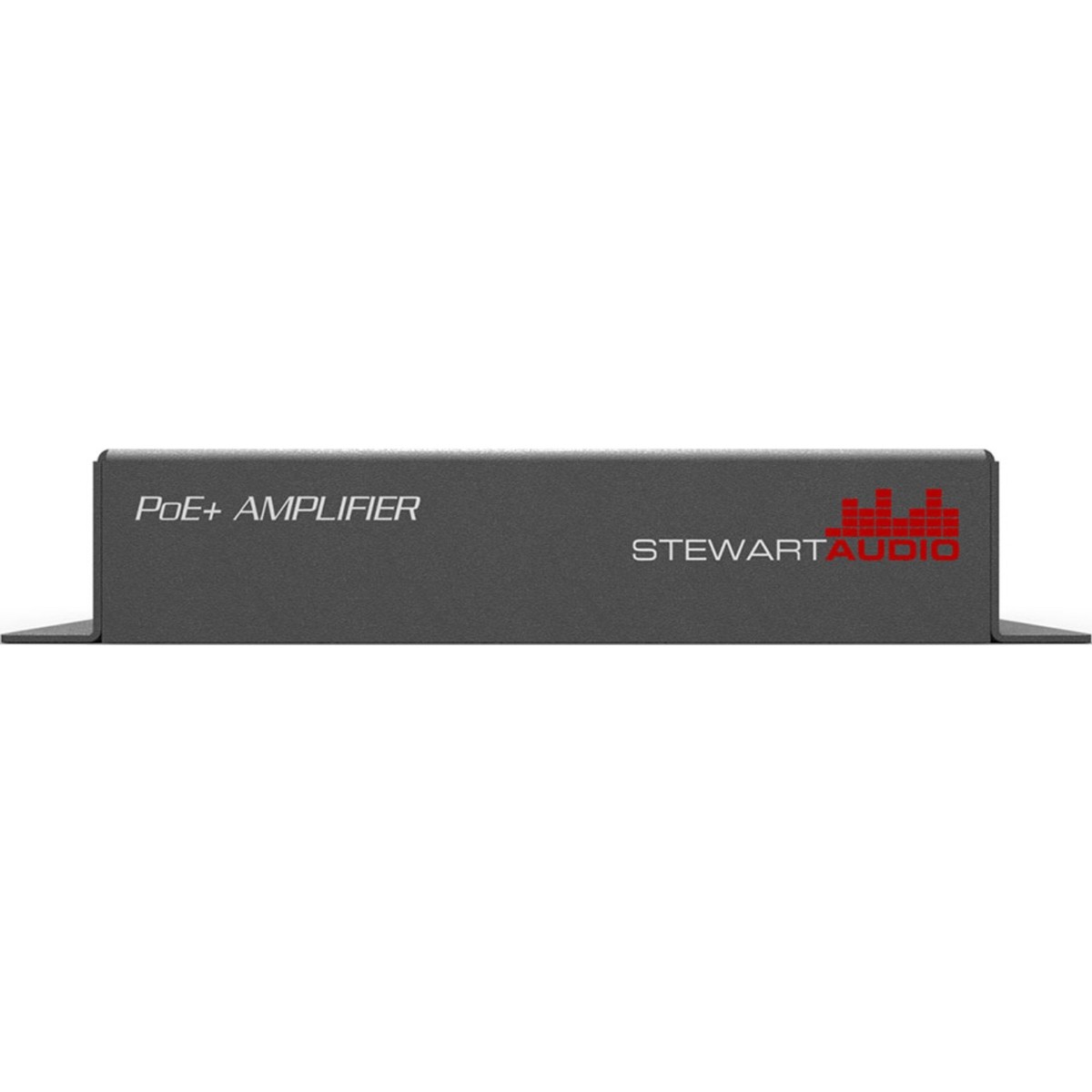

Stewart Audio AV8-2-LZ-D 2-Channel Dante Subcompact PoE plus Amplifier 8W x 2 @ 4/8Ω (Discontinued)
Stewart Audio AV8-2-LZ-D 2-Channel Dante Subcompact PoE+ Amplifier
By Stewart Audio

Stewart Audio AV8-2-LZ-D 2-Channel Dante Subcompact PoE plus Amplifier 8W x 2 @ 4/8Ω (Discontinued)

Write a Review
Part #:
AV8-2-LZ-D
Model #:
AV8-2-LZ-D
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Stewart Audio AV8-2-LZ-D is a 2-channel PoE plus (30W port power) Dante amplifier in a plenum rated compact, flange mount enclosure. The PoE+ Amplifiers leverage the higher power 802.3at PoE+ standard (30W port power) to power two amplifier models, the AV8-2-LZ-D (8W x 2 at 4/8Ω) and the CVA16-1-CV-D (16W x 1 at 70V/100V). These compact Dante amplifiers are designed to be single cable solutions for smaller zones without the need for a local power outlet.

Description

Stewart Audio AV8-2-LZ-D 2-Channel Dante Subcompact PoE+ Amplifier

The PoE+ Amplifier Series leverages the higher power 802.3at PoE+ standard (30W port power) to power two amplifier models, the AV8-2-LZ-D (8W x 2 @ 4/8Ω) and the CVA16-1-CV-D (16W x 1 @ 70V/100V). These compact Dante™ amplifiers are designed to be single cable solutions for smaller zones without the need for a local power outlet. This amplifier series leverages the ubiquitous nature of existing CAT 5e/6 cable in zones and also the inexpensive process of pulling new cable to zones. It creates an opportunity to reduce labor costs with a single, reliable, twisted pair cable that carries power and data to where you need it. Simply plug the PoE+ CAT 5e/6 cable into the amplifier, wire the speakers and route audio and repeat for the next zone. The plenum rating and compact size allow this amplifier series to be placed in the air handling space, closets, the rack or any other convenient space. The confluence of readily available and inexpensive CAT 5e/6 cabling, Dante networked audio and quick installation, makes this amplifier series an essential problem solver.

Features
  • Two Dante input channels
  • Single category cable solution for both signal and power
  • Plenum rated package
  • AES67 support

Specifications
Output Power 8WRMS x 2 @ 4/8Ω
Frequency Response 20 Hz - 20 kHz (4/8Ω)
Signal-to-Noise Ratio >90dB
Input Connector RJ-45
Output Connector 5mm Euro Block
Construction Aluminum Enclosure
Mounting Flange Mount Enclosure
Cooling Convection–Cooling (No Fans)
Certifications Plenum UL 2043, FCC, CE
Dimensions (H x W x D) 1.2" (31 mm) x 6.7" (170 mm) x 4.31" (110 mm)
Weight 0.6 lb (0.3 kg)
