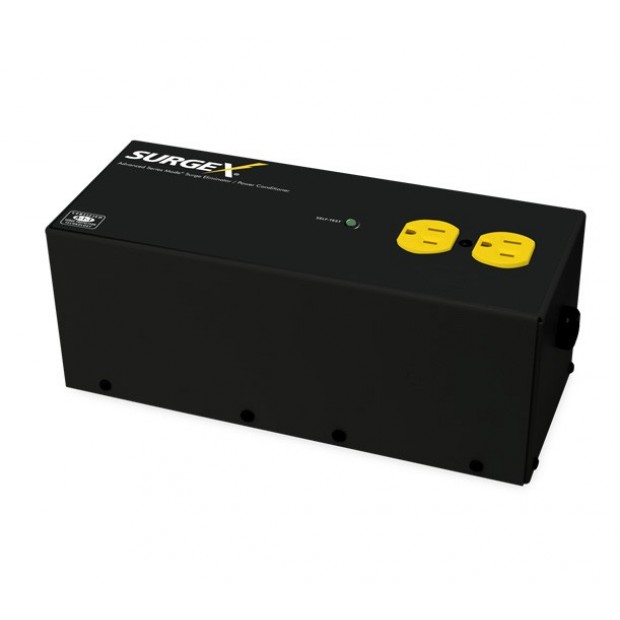

The SA-20 Standalone Surge Eliminator provides premium protection for sensitive equipment that relies on audio and video performance. Unlike common protection solutions, our patented protection technology is non-sacrificial and eliminates surge energy up to 6,000 volts, without producing harmful side effects such as ground contamination or common-mode disturbances that can degrade the performance of AV systems. With SurgeX, your connected equipment will be protected from destructive spikes, surges, and inductive transients that can cause disruptions and catastrophic damage.
| Load Rating | 15/20 amps @ 120 volts |
|---|---|
| Power Requirement (no load) | 10 watts |
| Surge Let-Through Voltage(6000-volt surge) | 0 volts |
| UL 1449 Adjunct ClassificationTest Results | 1000 surges, 6000 volts, 3000 amps,B3 pulse |
| Measured suppressed voltage | 170 volts; no failures |
| Federal Guidelines | Grade A, Class 1, Mode 1 (CIDA-A-55818) |
| Maximum Applied Surge PulseJoule Rating | Unlimited, due to current limiting(8 x 20 μs) |
| EMI/RFI Filter, Normal Mode(50-ohm load) | 40 dB @ 100 kHz; 50 dB @ 300 kHz;50 dB @ 3 MHz; 50 dB @ 30 MHz |
| EMI/RFI Filter, Common Mode(50-ohm load) | 18 dB @ 300 kHz; 30 dB @ 1 MHz;50 dB @ 5 MHz; 50 dB @ 20 MHz |
| Maximum Applied Surge Voltage | 6000 volts |
| Maximum Applied Surge Current | Unlimited, due to current limiting |
| Maximum Applied Surge Energy | Unlimited, due to current limiting |
| Endurance (C62.41-1991 CategoryB3 pulses) | 1 kV>500,000; 3 kV>10,000; 6 kV>1000 |
| Temperature Range | 5º to 35º C |
| Humidity Range | 5% to 95% R.H., non-condensing |
| Dimensions (H x W x D) | 4.0" (102 mm) x 10.2" (259 mm) x 4.2" (107 mm) |
| Weight | 8.5 lbs (3.8 kg) |
