Tannoy CMS 1201 BACKCAN for CMS 1201 Series Ceiling Loudspeakers
Tannoy CMS 1201 BACKCAN for CMS 1201 Series Ceiling Loudspeakers
Tannoy CMS 1201 BACKCAN for CMS 1201 Series Ceiling Loudspeakers
Tannoy CMS 1201 BACKCAN for CMS 1201 Series Ceiling Loudspeakers
By Tannoy

Tannoy CMS 1201 BACKCAN for CMS 1201 Series Ceiling Loudspeakers

Write a Review
Part #:
TA-CMS1201-BC
Model #:
CMS 1201 BACKCAN
Availability: Usually arrives in 3-6 weeks Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

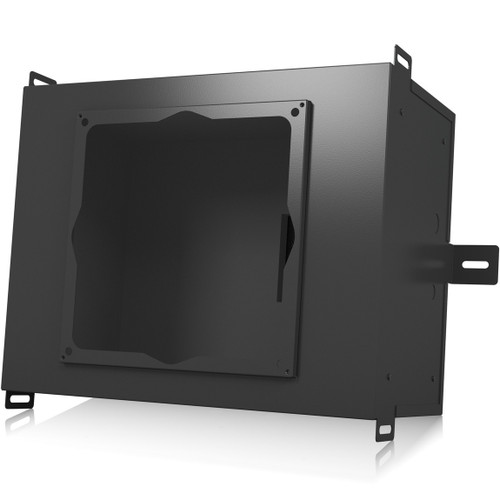

The custom engineered Tannoy CMS 1201 back-can is a powder coated steel back-can that has been designed to cater for all conceivable installation possibilities for the CMS 1201 series making the CMS 1201 extremely versatile.

Description

The custom engineered powder coated steel back-can has been designed to cater for all conceivable installation possibilities making the CMS 1201DC extremely versatile. Internally dampened with 11 mm (0.43”) OSB2 board, the addition of the back-can provides exceptional low frequency performance.

Features
  • Acoustically enhanced powder coated zinc plated steel back can for CMS 1201 ceiling loudspeaker
  • Designed for pre-installation in newly constructed non-suspended ceilings
  • Back can and containment can be installed prior to completion of ceiling
  • Internally dampened 79 litre (2.8 cubic feet) capacity provides exceptional low frequency performance
  • Back can fixings allow multiple installation options
  • Steel mounting lugs for fitting to a Unistrut roof rail system or hanging via 4 top-mounted eye bolts
  • Single point hang via M10 or 3/8" UNC threaded rod
  • Time-saving design enables one person speaker installation
  • Phoenix connectors for input and link output

Specifications
Dimensions (H x W x D) 13.03" (331 mm) x 28.54" (725 mm) x 20.31" (516 mm)
Net Weight 44.1 lbs (20 kg)
