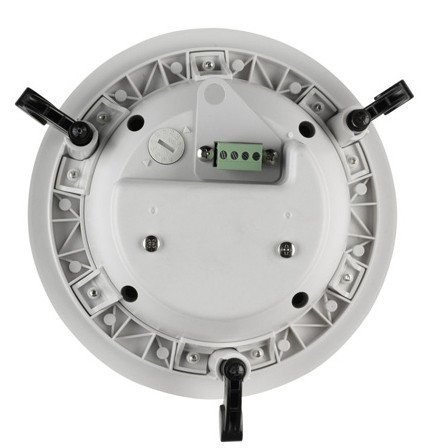

Tannoy CMS 403DCE 4" 70V Full Range Directional Ceiling Loudspeaker with Dual Concentric Driver - Pair
Description
Based on an all-new evolution of Tannoy's proprietary Dual Concentric point-source driver, the CMS 403DCe has been fundamentally re-engineered to deliver wider and more consistent broadband directivity, even greater intelligibility, and a more accurate and linear response.
The new Dual Concentric driver design features revolutionary Omnimagnet™ technology and unique patent-pending Torus Ogive Waveguide™ device, together providing more consistent and controlled directivity along with improved high frequency response. Improved time-alignment and greater coherence between LF and HF results in a wider sweet spot for enhanced performance both on and off-axis.
The CMS 403DCe also features extra clamp extension to accommodate thicker ceiling panels, and a locking design that prevents inadvertent over-screwing. Specifically designed for fast, simple and cost effective installation in new and existing buildings, the CMS 403DCe can be entirely angled towards the listener within the fixed ceiling-mounting ring. By discreetly pivoting the loudspeaker towards the desired area of coverage, the problems of difficult speaker placement - particularly in less than perfect room configurations – are easily overcome.
The CMS 403DCe utilizes a 16 ohm driver, making it ideal for use in high performance lowimpedance systems (with optimized performance when used in conjunction with Lab.gruppen LUCIA amplifiers). A low-insertion loss 30 W transformer is included, with convenient front switching for taps at 30 W, 15 W and 7.5 W, with an additional 3.75 W tap for traditional constant voltage systems.
The CMS 403DCe is supplied with an integral back-can, ready to install as a single unit. The removable locking connector has screw terminals for secure wire termination and loop-thru facility. All models are supplied with two tile support rails and one C-ring; a plaster (mud) ring is available as an optional accessory.
Features
- Full range ceiling loudspeaker for installation applications
- 40 Watts continuous, 160 Watts peak power
- Next generation 4" Dual Concentric point source driver featuring Omnimagnet technology
- Torus Ogive waveguide for improved high-frequency response and directivity
- Blind Mount enclosure supplied with integral molded ABS back can
- Integrated single unit construction for ease of installation
- Adjustable tilt angle with 360° rotation to accommodate difficult loudspeaker placements
- Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
- Low insertion loss 30 W line transformer with easily accessible tapping switch
- Optimized for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
- Semi-matte white finish fits unobtrusively in any environment
- Powder coated UV resistant perforated steel mesh grille with dust protection
- Removable grille for custom painting
- Self-aligning 3 way clamp mounting system
- Mounting C-ring and ceiling tile rails included
- 10-Year Warranty Program
- Designed and engineered in the U.K.
Specifications
| System | |
|---|---|
| Frequency Response (-3dB) BM Backcan | 110 Hz - 50 kHz |
| Frequency Range (-10dB) BM Backcan | 80 Hz - 54 kHz |
| System Sensitivity (1W @1m) | 88 dB (1 W = 4 V for 16 Ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Power Handling | Average: 60W, Program: 120W, Peak: 240W |
| Recommended Amplifier Power | 120 W @ 16 ohms |
| Nominal Impedance (Lo,Z) | 16 Ohms |
| Rated Maximum SPL | Average: 107 dBPeak: 113 dB |
| Transformer Taps (via front rotary switch) | 70V: 30 W (165 O) / 15 W (330 O) / 7.5 W (660 O) / 3.75 W (1320 O) / OFF & low impedance operation |
| Dual Concentric point source driver | 1 x 100 mm (4") Dual Concentric driver, using Omnimagnet technology |
| Low Frequency | 35 mm (1.38") voice coil, treated multi fiber paper pulp cone |
| High Frequency | 20 mm (0.79") PEI dome |
| Enclosure | Backcan: Reflex loaded UL 94V-0 rated ABS |
| Enclosure | Baffle: Reflex loaded UL 94V-0 rated ABS |
| Enclosure | Grille: Steel, with weather resistant coating |
| Safety Features | Safety ring located at rear of enclosure for load bearing safety bond |
| Clamping Design | Security toggle clamp |
| Blind Mount (BM) | Complete with fixed backcan |
| Cable Entry Options | Cable clamp & squeeze connector for conduit up to 22 mm |
| Conduit Knockouts on PI Backcan | 3 Sets of horizontal positions 19 / 22 / 28 mm (0.75" / 0.87" / 1.10") |
| Connectors | Removable locking connector with screw terminals with "loop through" facility |
| Included Accessories | C Ring, Tile bridge, Paint mask, Cutout template, Grille, Plaster (Mud) ring |
| Dimensions | |
| Bezel Diameter | 8.07" (205 mm) |
| Front of Ceiling to Rear of Pod | 5.81" (147.6 mm) |
| Hole Cutout Diameter | 7.36" (187 mm) |
| Weight | |
| Weight (Pair) | 12.12 lbs (5.50 kg) |
| Shipping Weight (Pair) | 17.64 lbs (8 kg) |
