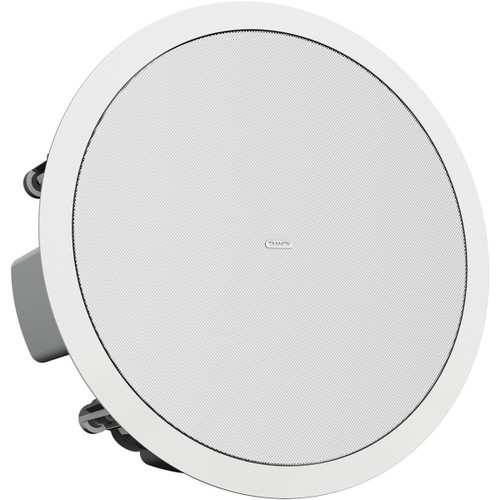

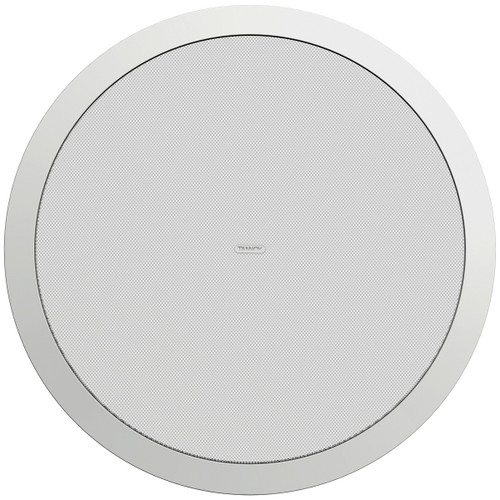

The CMS 803DC PI is a full bandwidth 360-Watt high sensitivity loudspeaker that utilizes our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 8" Dual Concentric point source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 803DC PI delivers wide and consistent broadband directivity with enhanced intelligibility - plus highly accurate and linear response.
Optimized for Installation
Specifically designed with a self-aligning 5-way clamp system for fast, simple and cost-effective installation, CMS 803DC PI also features extra clamp extension to accommodate thicker ceiling panels, and a locking design that prevents over-tightening. A low-insertion loss 60 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails, and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes, a back can, and plaster (mud) ring are available separately.
LAB GRUPPEN Ready
The CMS 803DC PI is finished in semi-matte white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.
| Performance | |
|---|---|
| Frequency Response (-3 dB) | 47 Hz - 30 kHz |
| Frequency Range (-10 dB) | 40 Hz - 35 kHz |
| System Sensitivity (1 W @ 1 m) | 92 dB (1 W = 4 V for 16 Ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Power Handling | Average: 90 W Program: 180 W Peak: 360 W |
| Recommended Amplifier Power | 180 W @ 16 Ohms |
| Nominal Impedance (Lo, Z) | 16 Ohms |
| Rated Maximum SPL | Average: 112 dB Peak: 118 dB Average (with THP60): 110 dB |
| Transformer Taps (via Front Rotary Switch) | 70 V: 60 W (83 Ohms) / 30 W (165 Ohms) / 15 W (330 Ohms) / 7.5 W (660 Ohms) / OFF & low impedance operation 100 V: 60 W (165 Ohms) / 30 W (330 Ohms) / 15 W (660 Ohms) / OFF & low impedance operation |
| Transducers | |
| Dual Concentric Point Source Driver | 1 x 8.0" (200 mm) Dual Concentric driver, using Omnimagnet technology |
| Low Frequency | 1.75" (44 mm) voice coil, treated multi fiber paper pulp cone |
| High Frequency | 1.00" (25 mm) PEI dome |
| Physical | |
| Safety Features | Safety ring located at rear of enclosure for load bearing safety bond |
| Clamping Design | Security toggle clamp. Min / Max clamping range 0.37" ( 9.5 mm ) / 2.36" ( 60 mm ) Recommended clamp torque: 1.5 Nm |
| Backcan Options | Separate backcan for pre-installation |
| Cable Entry Options | Cable clamp & squeeze connector for conduit up to 22 mm |
| Connectors | Removable locking connector with screw terminals with "loop through" facility |
| Compliance | UL-1480, UL-2043, CE |
| Dimensions | |
| Bezel Diameter | 12.56" (319 mm) |
| Front of Ceiling to Rear of Speaker Unit | 4.94" (125.6 mm) |
| Front of Ceiling to Top of Safety Loop | 6.63" (168.5 mm) |
| Hole Cutout Diameter (all models) | 11.61" (295 mm) |
| Weight | 21.6 lbs (9.8 kg) |
| Shipping Weight | 29.76 lbs (13.5 kg) |
