The Tannoy CMS 601DC is a full bandwidth; high power and high sensitivity ceiling monitor system; a compact unit that is specifically designed for applications requiring the combination of uncompromising 'superior quality' sonic performance for music and speech reinforcement, exceptional intelligibility and long term reliability.

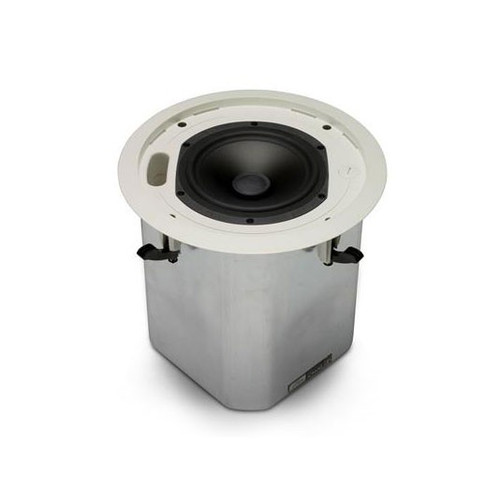

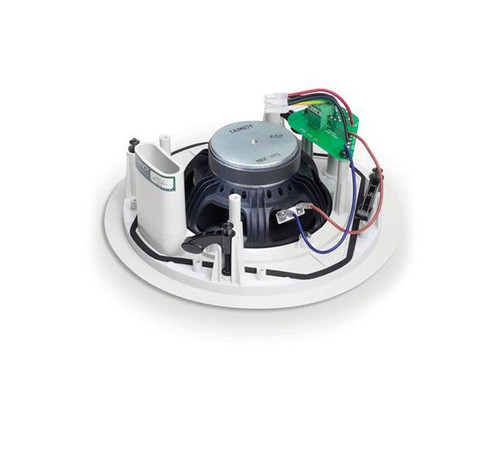

The design comprises a 165 mm (6.5”) Dual Concentric™ point-source transducer mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material. Spring loaded self-aligning clamps make for quick and easy installation, while all models are also supplied with two tile support rails and one C-ring included in the package. A plaster (mud) ring is available as an optional accessory.
The zinc plated steel back cans have an integrated, recessed termination box. The removable locking connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit.
The CMS 601DC is equipped with a low insertion loss 60 W line transformer easily configurable to various tappings via front baffle mounted rotary switch, for use in constant voltage distributed audio systems. Two model variants are available (one 'blind-mount' version with integrated back can, the other without) and a separate back can are available to satisfy the vast majority of installation application requirements.- Features
Features
- 165 mm (6.5") Dual Concentric transducer for premium sonic performance and reliability
- High power and high sensitivity with extended frequency response
- Wide, controlled constant directivity dispersion for optimum coverage
- Does not suffer from massive loss of energy in the vertical plane at crossover caused by two way discreet designs
- UV/weather resistant UL94V-0 ABS front baffle
- Blind Mount and Pre Install options
- Low insertion loss 60 W line transformer
- Easily accessible tapping switch on front baffle
- Packaged with tile rails and C-ring for quick and easy installation and simple stocking logistics
- Specification
System Frequency Response (-3dB) 75Hz - 30kHz Back can Frequency Range (-10dB) 50Hz - 30kHz Back can System Sensitivity (1W @1m) 91dB (1W = 2.45V for 6W) Nominal Coverage Angle 90 degrees conical Coverage Angle (1kHz to 6kHz) 111 degrees Directivity Factor (Q) 4.7 averaged 1kHz to 6kHz Directivity Index (DI) 6.5 averaged 1kHz to 6kHz Rated Maximum SPL 110dB (average), 116dB (peak) Power Handling Average: 80W, Programme: 160W, Peak: 320W Recommended Amplifier Power 160W @ 8W Nominal Impedance 8 ohms Transformer Taps 70V: 60W / 30W / 15W / 7.5W / OFF & low impedance operation
100V: 60W / 30W / 15W / OFF & low impedanceCrossover 2kHz - 2nd order LF, 3rd Order HF (with dynamic HF protection) Transducers Low Frequency 165mm (6") Dual Concentric™ constant directivity driver with multi fibre paper pulp cone High Frequency 25mm (1") titanium dome with neodymium magnet system Physical Enclosure Back can: Zinc plated steel, Baffle: Reflex loaded UL 94V-0 rated ABS, Grille: Steel Safety Features Safety ring located at rear of enclosure for load bearing safety bond Clamping Design Min / Max Clamping Range: 8 mm (0.32") / 29 mm (1.14") Recommended Clamp Torque: 1.5Nm Back Can Options Complete with fixed back can Cable Entry Options Cable clamp & squeeze connector for conduit up to 22 mm Conduit Knockouts 3 Sets of horizontal positions 19 / 22 / 28 mm (0.75” / 0.87” / 1.10”) Connectors Removable locking connector with screw terminals with "loop through" facility Safety Agency Ratings (pending) UL-1480, UL-2043, CE Included Accessories C Ring, tile bridge, paint mask, cutout template, grille Optional Accessories Plaster (mud) ring Hole Cutout Diameter 253 mm (9.96") Dimensions (Bezel Diameter) 280 mm (11.02") Dimensions (Front of Ceiling to Rear of Back Can) 258 mm (10.16") Dimensions (Front of Ceiling to Top of Safety Loop) 275.30 mm (10.84") Weight (ea) 16.42 lbs (7.45 kg) - Reviews
