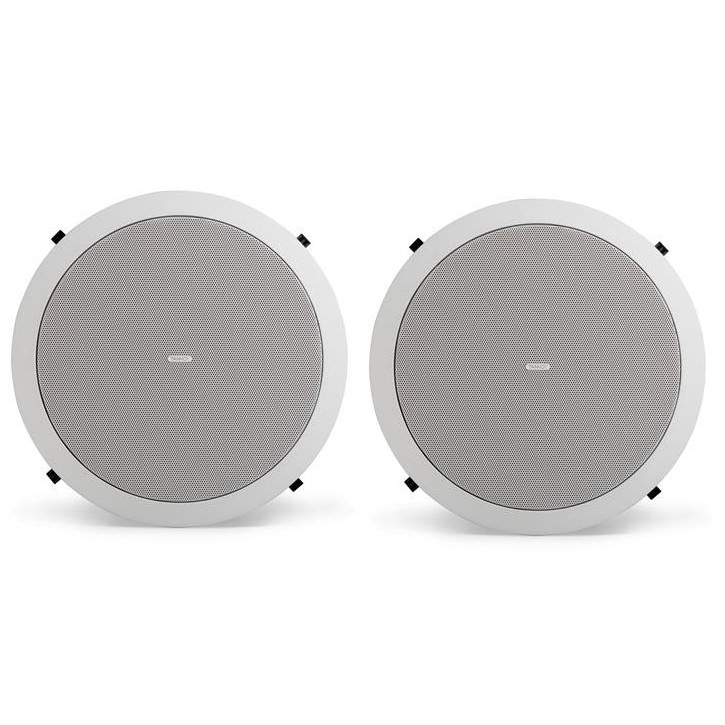

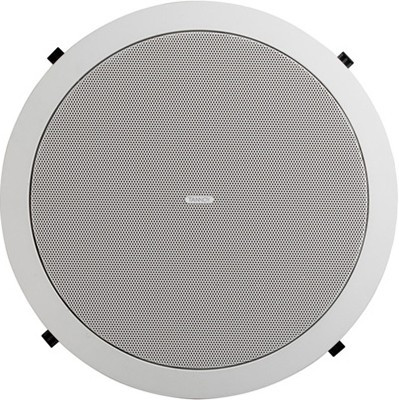

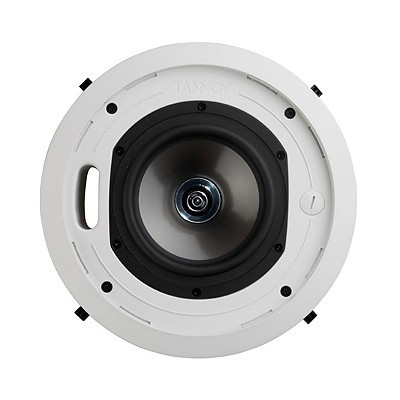

The design comprises a 165 mm (6.5”) Dual Concentric point-source transducer mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material. Spring loaded self-aligning clamps make for quick and easy installation, while all models are also supplied with two tile support rails and one C-ring included in the package. A plaster (mud) ring is available as an optional accessory.
The zinc plated steel back cans have an integrated, recessed termination box. The removable locking connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit.

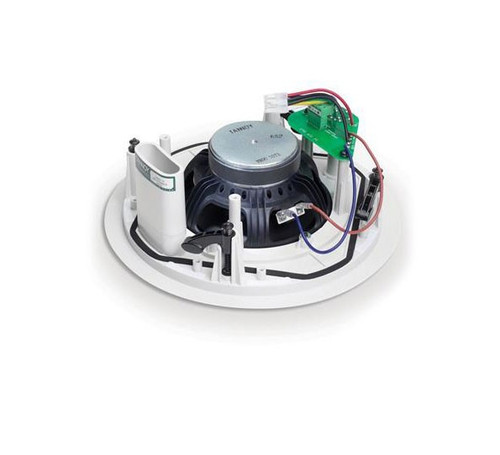

The CMS 601DC is equipped with a low insertion loss 60W line transformer easily configurable to various tappings via front baffle mounted rotary switch, for use in constant voltage distributed audio systems. Two model variants are available (one 'blind-mount' version with integrated back can, the other without) and a separate back can are available to satisfy the vast majority of installation application requirements.
| Frequency Range (-10dB) | 46Hz - 30kHz Back can |
|---|---|
| System Sensitivity (1W @1m) | 91dB (1W = 2.45V for 6W) |
| Nominal Coverage Angle | 90 degrees conical |
| Coverage Angle (1kHz to 6kHz) | 111 degrees |
| Directivity Factor (Q) | 4.7 averaged 1kHz to 6kHz |
| Directivity Index (DI) | 6.5 averaged 1kHz to 6kHz |
| Rated Maximum SPL | 110dB (average), 116dB (peak) |
| Power Handling | Average: 80W, Programme: 160W, Peak: 320W |
| Recommended Amplifier Power | 160W @ 8W |
| Nominal Impedance | 8 ohms |
| Transformer Taps | 70V: 60W / 30W / 15W / 7.5W / OFF & low impedance operation 100V: 60W / 30W / 15W / OFF & low impedance |
| Crossover | 2kHz - 2nd order LF, 3rd Order HF (with dynamic HF protection) |
| Low Frequency | 165mm (6") Dual Concentric™ constant directivity driver with multi fibre paper pulp cone |
| High Frequency | 25mm (1") titanium dome with neodymium magnet system |
| Enclosure | Back can: Zinc plated steel, Baffle: Reflex loaded UL 94V-0 rated ABS, Grille: Steel |
| Safety Features | Safety ring located at rear of enclosure for load bearing safety bond |
| Clamping Design | Min / Max Clamping Range: 8 mm (0.32") / 29 mm (1.14") Recommended Clamp Torque: 1.5Nm |
| Back Can Options | Separate back can for Pre Installation |
| Cable Entry Options | Cable clamp & squeeze connector for conduit up to 22mm |
| Conduit Knockouts | 3 Sets of horizontal positions 19 / 22 / 28 mm (0.75” / 0.87” / 1.10”) |
| Connectors | Removable locking connector with screw terminals with "loop through" facility |
| Safety Agency Ratings (pending) | UL-1480, UL-2043, CE |
| Included Accessories | C Ring, tile bridge, paint mask, cutout template, grille |
| Optional Accessories | Plaster (mud) ring |
| Hole Cutout Diameter | 253 mm (9.96") |
| Dimensions (Bezel Diameter) | 280 mm (11.02") |
| Dimensions (Front of ceiling surface to rear of speaker unit) | 99.40 mm (3.91") |
| Dimensions (Front of back can bezel to top of safety loop) | 168.50 mm (6.60") |
| Weight (ea) | 9.02 lbs (4.09 kg) |
