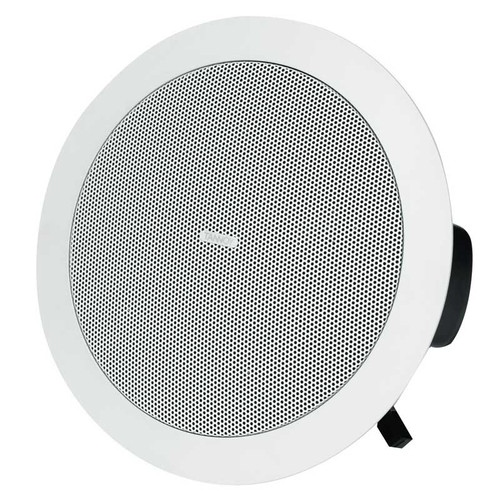

Tannoy CVS 4 MICRO 4" Coaxial In-Ceiling Loudspeaker with Shallow Back Can for Installation Applications
The CVS 4 MICRO is a compact 160-Watt shallow back can ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 4 MICRO offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding.
Exceptional Sound and Reliability

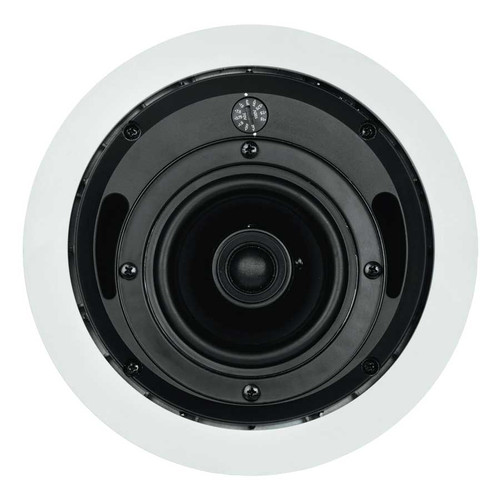

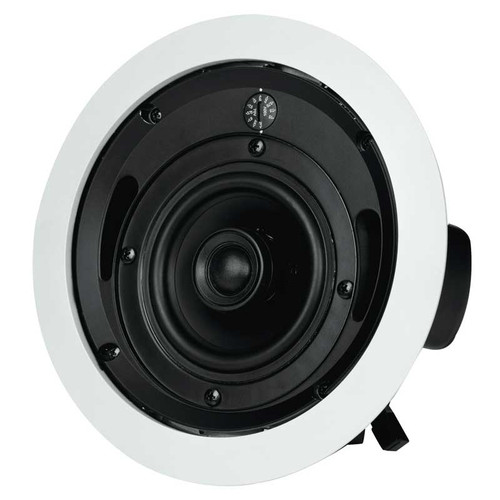

The design comprises a 100 mm (4.00") mid bass driver with a coaxially mounted 19 mm (0.75") high-frequency section mounted in a vented, injection molded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material. The mineral loaded polypropylene cone material and nitrile rubber surround enhance durability and long-term reliability. Thanks to the shallow back can depth of less than 4" (98.3 mm), CVS 4 MICRO is perfect for applications where above-ceiling space is limited, but exceptional sonic quality and reliability are a requirement.
Comprehensive Installation Package

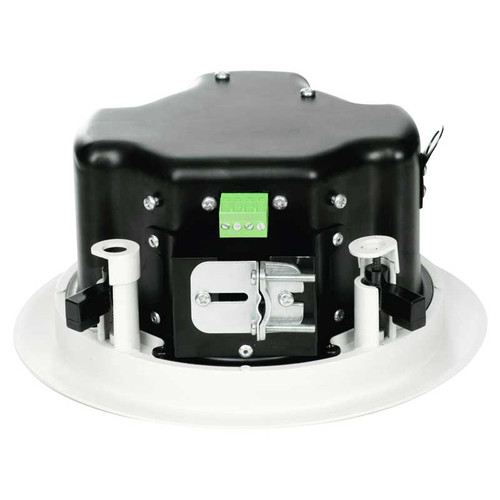

Supplied with an integral zinc-plated steel shallow back can, with recessed termination box, the CVS 4 MICRO satisfies the vast majority of installation application requirements. The removable locking connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. Security toggle clamps make for quick and easy installation, while two tile support rails and one C-ring are also included in the package. A plaster (mud) ring is available as an optional accessory.
| System | |
|---|---|
| Frequency Response (-3dB) | 110 Hz - 19k Hz |
| Frequency Range (-10dB) | 90 Hz - 22 kHz |
| System Sensitivity (1W @ 1 m) | 87dB (1W = 2.45V for 6 ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Coverage Angle (1kHz to 6kHz) | 102° |
| Directivity Factor (Q) | 5.6 averaged 1k Hz to 6k Hz |
| Directivity Index (DI) | 7.1 averaged 1k Hz to 6k Hz |
| Rated Maximum SPL | Average: 103dB Peak: 109dB |
| Power Handling | Average: 40W Program: 80W Peak: 160W |
| Rec Amplifier Power | 80W @ 6 ohms |
| Nominal Impedance | 6 ohms |
| Crossover Point | 2.7kHz |
| Distortion | |
| 10% Full Power | 2nd Harmonic 250 Hz: 0.99%, 1 kHz: 0.816%, 10 kHz: 0.444% 3rd Harmonic 250 Hz: 0.169%, 1 kHz: 0.323%, 10 kHz: 0.27% |
| 1% Full Power | 2nd Harmonic 250 Hz: 0.231%, 1 kHz: 0.229%, 10 kHz: 0.163% 3rd Harmonic 250 Hz: 0.112%, 1 kHz: 0.253%, 10 kHz: 0.025% |
| Transducers | |
| Low Frequency | 4" (100 mm) Mineral Loaded |
| High Frequency | 0.75" (19 mm) |
| Physical | |
| Enclosure | Backcan: Zinc Plated Steel Baffle: Reflex loaded UL 94V-0 rated ABS Grille: Steel, with weather resistant coating |
| Clamping Design | Security toggle clamp Min / Max Clamping Range: 0.0" (0.00 mm) / 0.79" (20.0mm) Recommended Clamp Torque: 1.5Nm |
| Cable Entry Options | Cable Clamp & Squeeze connector for conduit up to 22mm |
| Connectors | Removable locking connector with screw terminals with "loop through" facility |
| Safety Agency Ratings | UL-1480, UL-2043, CE |
| Dimensions | |
| Hole Cutout Diameter | 7.09" (180 mm) |
| Bezel Diameter | 8.39" (213 mm) |
| Front of Ceiling to Rear of Backcan | 3.87" (98.3 mm) |
| Front of Ceiling to Cable Entry Centre | 1.83" (46.5 mm) |
| Weight | |
| Net Weight | 5.73 lbs (2.60 kg) |
| Shipping Weight (Pair) | 19.62 lbs (8.9 kg) |
