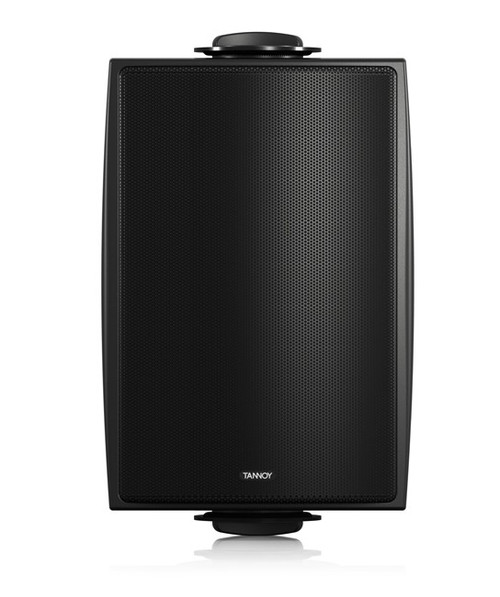

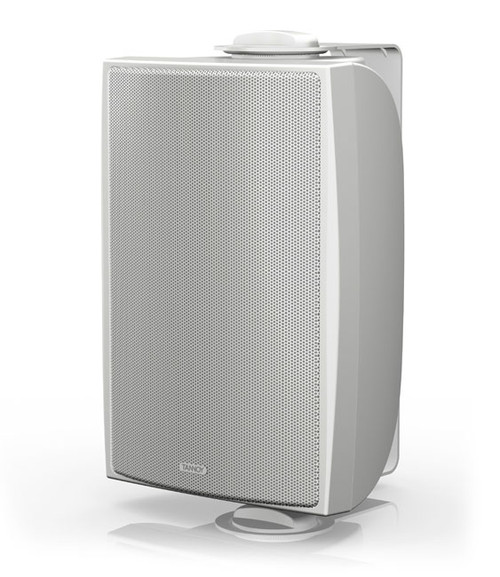

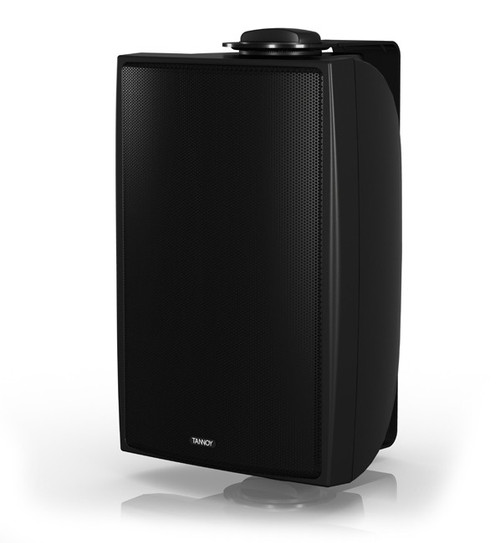

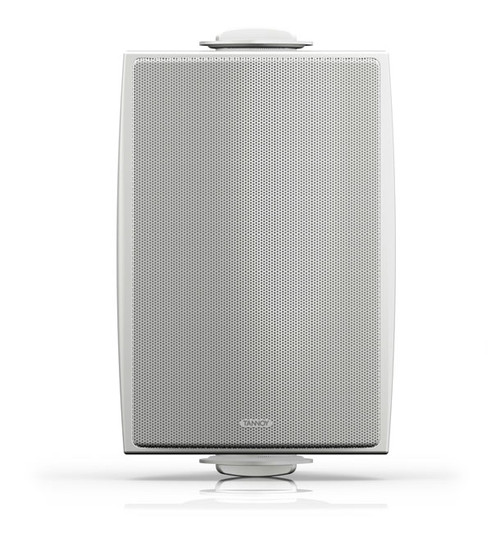

Tannoy DVS 4T 4" Compact Surface-Mount Loudspeaker with Transformer - Pair

Part #:
TA-DVS4T-BK
Model #:
DVS 4T
Availability: Usually arrives in 3-6 weeks Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 4T is an ultra-compact 160-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 4T is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants, and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.

Description

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 4T is an ultra-compact 160-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 4T is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants, and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.

Superb Point-Source

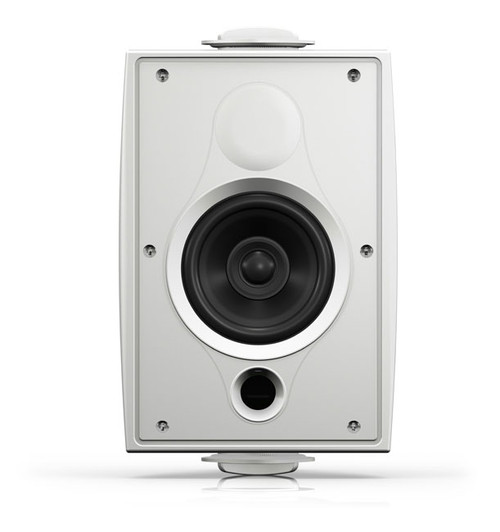

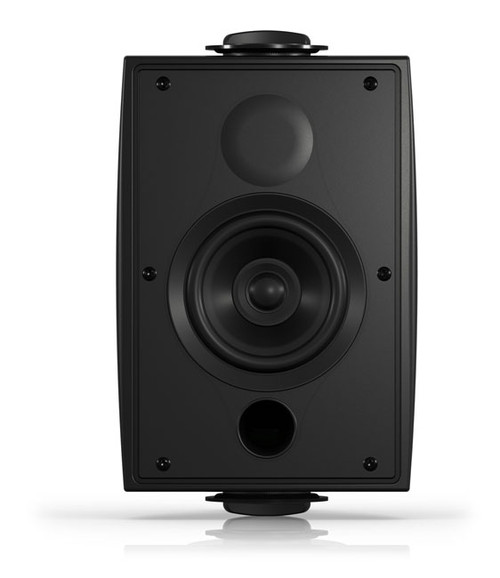

DVS 4T's point-source design comprises a 100 mm (4.00") mid bass driver with a coaxially mounted 19 mm (0.75") high-frequency section mounted in a stylish injection molded ABS enclosure. Certified for water and dust ingress protection to IP64 standard, the DVS 4T is an exceptional choice for challenging environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

Attractive and Easy to Install

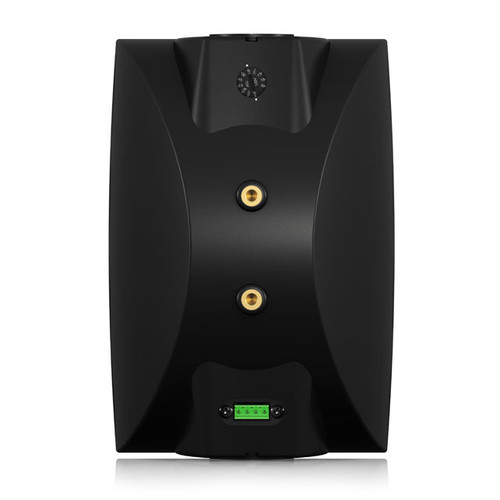

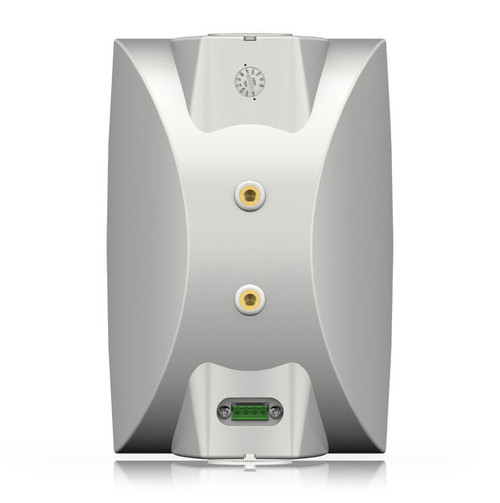

The highly durable and scuff resistant ABS enclosure features a black painted finish and comes with an aesthetically pleasing aluminum grille. Installation is quick and easy, thanks to the included color-matched steel mounting bracket and finger-adjustable hardware on the enclosure top and bottom. The DVS 4T is equipped with an internally mounted low insertion loss line transformer for 70 V or 100 V distributed sound applications. Wattage taps are configurable over a range of settings via a rotary tapping switch located on the back panel. Phoenix connectors for input and link output are provided for convenience.

Features

  • Full range surface-mount loudspeaker for indoor and outdoor installation applications
  • 40 Watts continuous, 160 Watts peak power
  • 4" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75" ferrofluid-cooled soft dome neodymium high-frequency driver
  • 110° constant directivity dispersion for optimum coverage
  • UL 1480 certified for general signaling systems
  • UV and weather resistant UL 94 V-0 ABS enclosure
  • Multiple transformer taps for 70 V and 100 V line systems
  • Low insertion loss 30 W line transformer with easily accessible tapping switch
  • All components weather resistant to IP64 for outdoor use
  • Stylish durable enclosure with a semi-matte black paint finish fits unobtrusively in any environment
  • Painted perforated aluminum mesh grille with dust protection
  • Yoke bracket included for ease of installation
  • Phoenix connectors input and link output
  • 10-Year Warranty Program
  • Designed and engineered in the U.K.

Specifications

Frequency Response (-3dB) 75Hz – 20kHz
Frequency Range (-10dB) 60Hz – 30kHz
System Sensitivity (1W @ 1m) 84dB
Dispersion (Degrees Conical) 110°
Transducers Coaxial
Crossover 3.9kHz - 2nd order LF, 2nd order HF
Directivity Factor (Q) 6.5 averaged 1kHz to 10kHz
Directivity Index (DI) 5.3 averaged 1kHz to 10kHz
Dimensions (H x W x D) 10.91" (277 mm) x 6.71" (170.4 mm) x 6.52" (6.52 mm)
Net Weight 5.07 lbs (2.3 kg)
Shipping Weight (Pair) 13.66 lbs (6.2 kg)
