The QFLEX 16 is a powered, digitally steerable multi-channel, column array loudspeaker designed as a complete solution for installed applications with challenging acoustics, such as houses of worship, transportation hubs, convention centers, conference facilities, shopping malls, performing arts centers and museums. The heart of the system is our proprietary VNET loudspeaker networking platform, which comprises both software and hardware DSP components that produce extremely-high speech intelligibility, impactful music reinforcement, and complete loudspeaker system diagnostics and monitoring.
Class-Leading Control
While many competing steerable arrays allow only a modest steering range across specific frequencies, the QFLEX 16 has a class-leading ±70° steering control, plus 16 channels of integrated DSP and amplification for consistent and highly intelligible full-range voice and music applications.
A Revolution in Sound Technology
The first digitally steerable column array loudspeaker of its kind, QFLEX 16’s revolutionary BeamEngine technology steers the full-range sound away from surfaces that cause reflections. The intuitive BeamEngine GUI allows the designer to specify target areas. Rather than only providing a limited palette of opening and steering angles, the BeamEngine GUI generates a steering algorithm that is tailored for that specific area. The resulting asymmetrical pattern delivers similar sound pressure levels (SPL) in both the near and far field for superb coverage and intelligibility – all in a very aesthetically pleasing package.
Drivers, Power and DSP

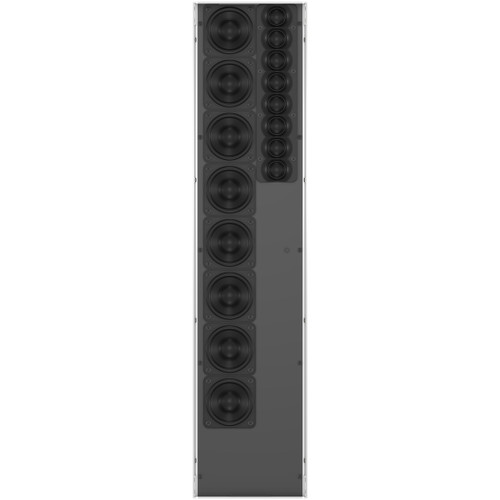

The QFLEX 16 column array loudspeaker comprises eight 3" low-frequency drivers and eight 1" high-frequency drivers, each with their own individual 100 Watt Class D amplifier and integrated cutting-edge DSP. Presented in a high-density array with proportional frequency spacing, QFLEX 16’s drivers provide digitally-steerable coverage for distances up to 25 m (82') – with no aliasing artifacts. A robust internal DSP engine works seamlessly with the proprietary VNET and BeamEngine software, both of which are available for free download here
Scalability
Designed to provide premium-grade performance as a standalone self-powered column array, QFLEX 16 is also an exceptional choice for multiple-column configurations consisting of other TANNOY VNET enabled products. Implementation of the network between nodes is via high-quality rugged Neutrik Ethercon connectors, which are compatible with standard RJ45 plugs, and CAT5 cable. Each speaker has a unique address for auto-location on the network.
System Add-Ons
A wide range of accessory options are available for the VNET-enabled QFLEX 16 including: The VNET ETHERNET INTERFACE; VNET USB RS232 INTERFACE; VNET2-AES INTERFACE, VNET INTERFACE POWER SUPPLY; VNET INTERFACE RACK MOUNT; SENTINEL SM1, for monitoring VNET networked PA/VA systems, as well as the QFLEX ISOLATOR, for eliminating potential ground/hum issues.
PA/VA Compliant
A wide range of accessory options are available for the VNET-enabled QFLEX 16 including: The VNET ETHERNET INTERFACE; VNET USB RS232 INTERFACE; VNET2-AES INTERFACE, VNET INTERFACE POWER SUPPLY; VNET INTERFACE RACK MOUNT; SENTINEL SM1, for monitoring VNET networked PA/VA systems, as well as the QFLEX ISOLATOR, for eliminating potential ground/hum issues.
Build Quality

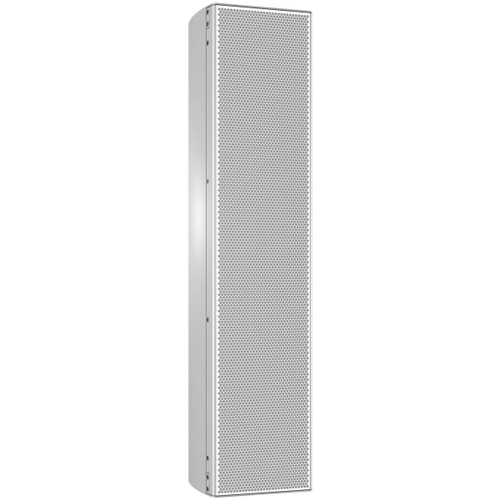

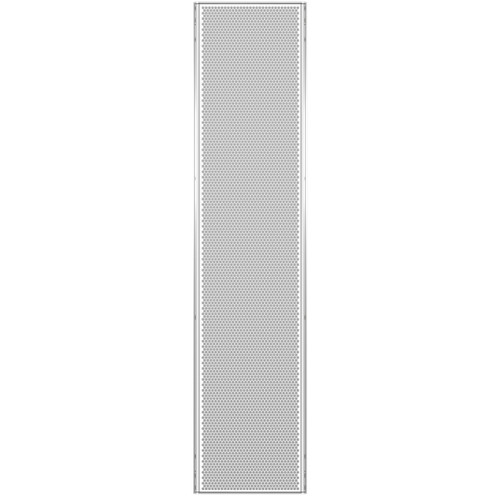

The architecturally styled corrosion-resistant aluminum enclosure and perforated grille are finished with a semi-matte white paint. The QFLEX 16 also includes the necessary custom mounting hardware for quick and accurate installation. Mains input and output link power connectors are Neutrik powerCON.
