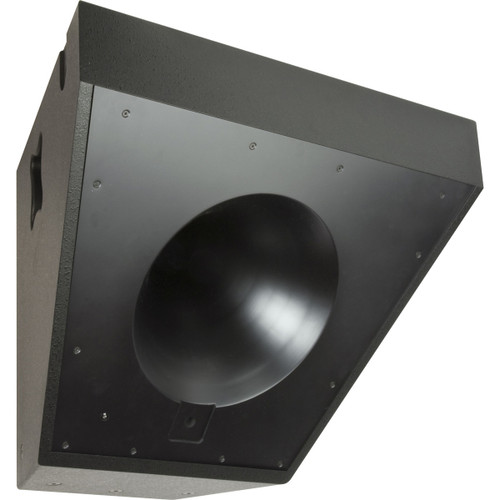

Tannoy VQNET 40DF 600W 2-Way Dual Concentric Down-Firing Mid-High Large Format Loudspeaker (Discontinued)

Tannoy VQNET 40DF 600W 2-Way Dual Concentric Down-Firing Mid-High Large Format Loudspeaker (Discontinued)

Name: Tannoy VQNET 40DF 600W 2-Way Dual Concentric Down-Firing Mid-High Large Format Loudspeaker (Discontinued)
Brand: Tannoy
SKU: TANNOY-80015800
Price: 4420 USD
Availability: OutOfStock

Write a Review

Part #:

80015800

Model #:

VQNET 40DF

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Integrated with cutting-edge digital signal processing, network control, and dual channel Class D amplification, the VQNET 40DF (40x40) is a very high output down firing mid/high loudspeaker system designed for applications requiring high impact sound reinforcement with class-leading pattern control.

Description

Integrated with cutting-edge digital signal processing, network control, and dual channel Class D amplification, the VQNET 40DF (40x40) is a very high output Down Firing Mid/High loudspeaker system designed for applications requiring high impact sound reinforcement with class-leading pattern control. The modular design approach allows the sound system designer to create seamless and predictable arrays, or they can be used singly as part of large distributed systems. VQNET 40DF addresses the requirement for compact dimensions without compromising performance in any way.

VNET NETWORKED DSP

Tannoy's proprietary VNET loudspeaker networking platform comprises both software and hardware DSP components for complete loudspeaker system diagnostics and monitoring.

Features

2-way down-firing mid-high loudspeaker for high-performance installation applications
600 Watt Class-D power amplifier with integrated digital signal processing
Dual Concentric 3.5" and 1.75" diaphragm compression drivers for mid and high-frequency reproduction
Patented PSW waveguide technology provides acoustic center alignment for coherent wavefront at horn throat
Phase coherent point source provides exceptional transient response and dispersion control
Tight 40° conical dispersion allows installation of tightly packed point-source clusters
Precise time alignment eliminates interference from multiple driver sources
Extremely high-efficiency design provides high SPL with modest power input
Modular design for versatile and compact cluster configurations
VNET interface for network control, diagnostics, and monitoring
Internally braced birch plywood enclosure
Finished with hard wearing semi matt black paint
Rugged powder-coated perforated steel mesh grille
Integral M10 rigging points for ease of installation
2 handles ergonomically integrated into the cabinet
Optional vertical flyware with 10:1 safety ratio (available separately)
Neutrik etherCON connectors for network input and link output
Neutrik powerCON for a secure locking mains power connection
10-Year Warranty Program
Designed and engineered in the U.K.

Specifications

Dimensions (H x W x D)	19.69” (500 mm) x 27.32” (694 mm) x 20.28” (515 mm)
Weight	70.4 lbs (32 kg)
