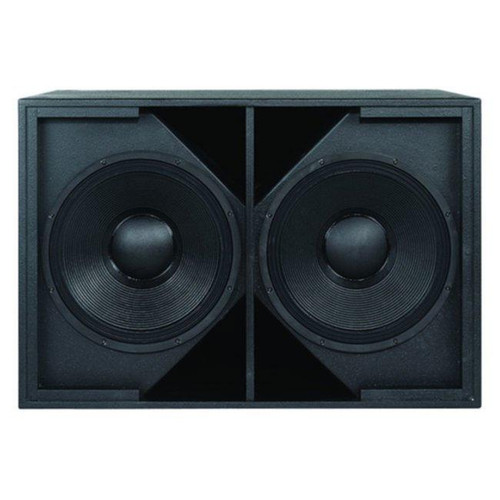

Tannoy VS 218DR High Power Direct Radiation Dual 18 inch Subwoofer (Discontinued)

Part #:
8001 5210
Model #:
VS 218DR
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

This loudspeaker is capable of delivering deep and powerful bass at high sound pressure levels with extremely low distortion and power compression, while all the time maintaining a uniform frequency response throughout its dynamic range.

Description

The VS 218DR is a versatile, no compromise, all-purpose subwoofer designed for the most demanding professional applications. Extending the frequency response of any system to below 30 Hz makes the VS 218DR ideal for low frequency effects in high energy clubs, large corporate AV systems, stadiums, live concert halls, theatres, movie theatres and cinemas, large houses of worship and open-air venues.

This loudspeaker is capable of delivering deep and powerful bass at high sound pressure levels with extremely low distortion and power compression, while all the time maintaining a uniform frequency response throughout its dynamic range. The large port areas ensure minimal turbulence even at high output levels.

With easy rigging and portability in mind the VS 218DR is equipped with 16 unobtrusive recessed carrying handles whilst 16 x 10 mm flying inserts provide a secure flying system. The cabinet is also fitted with 4 pullback points; and 4 rubber feet are provided to facilitate stacking.

The VS 218DR consists of twin 458 mm (18”) high efficiency drive units producing 106 dB/W, with a 100 mm (4”) voice coil. The twin drivers are mounted in an immensely robust 500 litre cabinet constructed from 18 mm (5/8”) multi-ply birch hardwood and is available in a black or white textured paint finish as standard. The heavy-duty construction ensures it is able to survive the punishment that speaker systems are subjected to on the road and in club installations.

Features

  • 2 x 18" (458 mm) bass units with 4" sandwich voice coil
  • Triple aluminium demodulating rings for ultra low distortion
  • Double treated cone for water protection
  • Deep, powerful bass performance
  • High power handling
  • High efficiency
  • Rugged birch plywood construction
  • 16 x integral carrying handles
  • Integral flying points

Specifications

Performance
System Type Subwoofer - Direct Radiating
Frequency Response (-3 dB) 31 Hz - 600 Hz
Frequency Range (-10 dB) 24 Hz - 1.5 kHz
System Sensitivity (1W @ 1 m) 106 dB (1W = 2 V for 4 Ohms)
Power Handling Average: 2000W
Programme: 4000W
Peak (10 ms): 8000W
Recommended Amplifier Power 2 x 1200 - 2000W / 8 Ohms, or 2400 - 4000W / 4 Ohms
Rated Maximum SPL Average: 139 dB
Peak: 145 dB
Nominal Impedance 2 x 8 Ohms
Driver Complement 2 x 18" (458 mm) Bass drivers
Recommended Crossover 70 Hz - 300 Hz, 24 dB / octave
Recommended Crossover Recommended High-pass filter 25 Hz, 24 dB / octave
Distortion
10% Full Power (21.9V) 2nd Harmonic 70 Hz: 1.22%, 100 Hz: 0.38%
3rd Harmonic 70 Hz: 1.90%, 100 Hz: 0.49%
1% Full Power (7.0V) 2nd Harmonic 40 Hz: 0.41%, 100 Hz: 0.88%
3rd Harmonic 40 Hz: 0.41%, 100 Hz: 1.03%
Construction
Enclosure 500 litres, 5/8" (18 mm) birch plywood internally braced
Finish Textured black or white paint (custom colors on request)
Connectors 2 x SpeakON NL4MPR IN/OUT and Barrier strip terminals
Fittings 16 x Recessed carrying handles
16 x M10 flying inserts
4 x Pullback points
4 x Rubber Feet
Dimensions (H x W x D) 27.56" (700 mm) x 41.34" (1050 mm) x 33.46" (850 mm)
Net Weight (ea) 231.3 lbs (105 kg)
Shipping Weight 264.3 lbs (120 kg)
