Tannoy VX12HP 12" Passive High Power Loudspeaker
Usually arrives in 5-9 business days.
The Tannoy VX 8M has a peak output of 119 dB and a recommended amplifier power of 260W, making it a powerful and versatile performer for a wide range of applications.

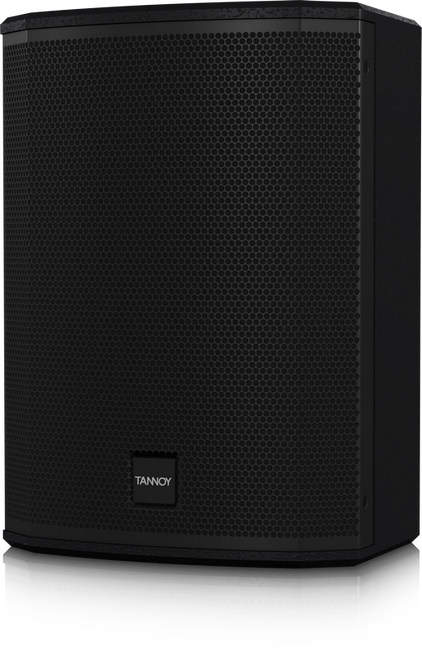

Conceived, engineered and built with precision in the United Kingdom, the VX 8M is a full range Dual Concentric loudspeaker from Tannoy, providing a compact, yet punchy and sonically vibrant solution for small-to-medium scale performance sound reinforcement.
With a tightly controlled 90 degree dispersion for optimum coverage and forward gain, the VX 8M has a peak output of 119 dB and a recommended amplifier power of 260 watts, making it a powerful and versatile performer for a wide range of applications.
The compact rugged birch plywood enclosure - available in textured black and white paint finish - has been ergonomically redesigned to offer a greater degree of flexibility, while maintaining the power and sonic clarity users have come to expect from Tannoy’s VX Series range. The asymmetrical cabinet features 40 and 60 degree side angles and includes a robust steel grille, making the VX 8M ideal for use as a dedicated floor monitor with the 8” driver providing exceptional vocal monitoring clarity. The enclosure's integrated pole mount socket and optional vertical yoke make it a flexible choice for a range of usage and mounting options. Audio connections on this highly portable loudspeaker are two speakON connectors on a recessed termination panel.
Targeted at small and medium sized applications such as corporate events, house of worship, performance spaces and portable PA, the new VX 8M can combine with any Tannoy loudspeaker or subwoofers from the VX and VSX ranges to offer clear, uniform sound no matter what.
| Performance | |
|---|---|
| Frequency Response (-3 dB) | 85 Hz - 35 kHz |
| Frequency Range (-10 dB) | 62 Hz - 45 kHz |
| System Sensitivity (1W @ 1 m) | 92 dB (1W = 2.83V for 8 ohms) |
| Dispersion (Degrees Conical) | 90 degrees conical |
| Driver Complement | 8" (1 x 200 mm) constant directivity Dual Concentric™ |
| Crossover | Passive 1.7 kHz with dynamic HF protection |
| Directivity Factor (Q) | 6.8 averaged 1 kHz to 8 kHz |
| Directivity Index (DI) | 9.2 averaged 1 kHz to 8 kHz |
| Rated Maximum SPL | Average: 113 dB Peak: 119 dB |
| Power Handling | Average: 130W Programme: 260W Peak: 520W |
| Recommended Amplifier Power | 260W @ 8 Ohms |
| Nominal Impedance | 8 Ohms |
| Distortion | |
| 10% Full Power (8.94V) | 2nd Harmonic 250 Hz: 0.12%, 1 kHz: 0.23%, 10 kHz: 1.35% 3rd Harmonic 250 Hz: 0.15%, 1 kHz: 0.84%, 10 kHz: 0.16% |
| Physical | |
| 1% Full Power (2.83V) | 2nd Harmonic 250 Hz: 0.16%, 1 kHz: 0.09%, 10 kHz: 0.53% 3rd Harmonic 250 Hz: 0.14%, 1 kHz: 0.53%, 10 kHz: 0.17% |
| Construction | |
| Enclosure | 16.3 litre, 0.62" (15 mm) birch plywood, vented and internally braced |
| Finish | Textured black (Ral 9004) Custom colours on request Powder coated perforated steel Airnet cloth behind |
| Connectors | 2 x speakON NL4MP |
| Fittings | 3 x M10 flying inserts (portrait mounting) 1 x Integrip carrying handle Integral Pole Mount for standard 35 mm poles |
| Packed Quantity | 2 |
| Dimensions (H x W x D) | 15.3" (388 mm) x 11" (280 mm) x 12.4" (315.7 mm) |
| Net Weight (ea) | 19.8 lbs (9 kg) |
| Shipping Weight | 44.1 lbs (20 kg) |
