- Description
Details
The CD-500 is a slot-loading CD player with a new transport, featuring brushless motors and an edge-grabbing mechanism to prevent disc damage. A front-panel 10-key pad gives you instant access to CD tracks, and flash start is available for instant playback. The CD-500 supports MP3 and WAV file playback from CD-ROM as well as traditional audio CDs.
The TASCAM CD-500 includes 16% pitch control for CD playback speed. Other features include incremental play, fader start, Call/return to last play point, fade in/out, power on play and more. Controllable through RS-232C, footswitch or wireless remote control, the CD-500 is the perfect solution for installation, touring, house of worship and anywhere else rackspace is at a premium.
- Features
Features
- Slot-loading mechanism
- RCA unbalanced output
- XLR balanced output (CD-500B)
- Optical and Coaxial S/PDIF digital outputs
- XLR AES/EBU output
- All, single, random, A/B and 99-track program play
- Incremental play
- Track elapsed, track remain, disc remain time display
- Call function: return to last play start point
- Intro check
- Skip back play function resumes playback from 0.5 to 60 seconds earlier
- Fade in/out (0 to 10 sec., in 0.5 sec. steps)
- Power on play
- Frame-accurate search
- Relay play for multiple units (1/8” relay in/out jack)
- Index search (CD-DA) and directory search (MP3)
- Mono output
- Resume play
- Fader start / event start
- EOM (End of message)
- WAV file (up to 48kHz/16bit) and MP3 file (up to 320kbps VBR) playback
- Headphone output
- RS-232C and Parallel control

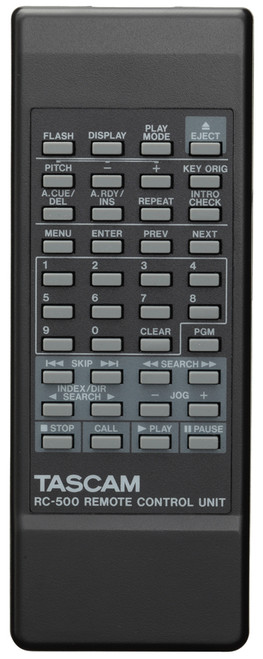

- Wireless remote controller included (defeatable)
- Footswitch input (for optional RC-3F or RC-20)
- Specification
Media and Formats Device Type CD player Compatible Discs Compact discs (12-cm only) Playable Disc Types CD, CD-R, CD-RW Playable Disc and File Formats Audio CD (CD-DA), MP3, WAV Number of Channels 2 Quantization Rate 16-bit Sampling Frequencies 32 kHz, 44.1 kHz, 48 kHz Analog Audio Output Analog Out Connectors (Unbalanced) Connector: RCA pin jacks Output Impedance: 1 kΩ or less Standard Output Level: −10 dBV (0.32 Vrms) Maximum Output Level: +6 dBV (2.0 Vrms) Analog Out Connectors (Balanced) Connector: XLR-3-32 (1: GND, 2: HOT, 3: COLD) Output Impedance: 150 Ω Standard Output Level: +4 dBu (1.23 Vrms) Maximum Output Level: +20 dBu (7.75 Vrms) PHONES Connector Connector: 6.3-mm (1/4") standard stereo jack Phones Maximum Output Level: 45 mW + 45 mW or more (THD+N 0.1% or less, 32Ω load) Digital Audio Output Digital Out Connector (Optical) Connector: optical Supported Signal Format: IEC-60958-3 standard for consumers (S/PDIF) Digital Out Connector (Coaxial) Connector: RCA-pin jack Supported Signal Format: IEC-60958-3 standard for consumers (S/PDIF) Output Impedance: 75Ω Output Level: 0.5 Vp-p Digital Out Connector (AES/EBU) Connector: XLR-3-32 (1: GND, 2: HOT, 3: COLD) Supported Signal Format: IEC60958-4 (AES/EBU) Output Impedance: 110Ω Control Input and Output REMOTE Connector Connector: 2.5-mm TRS jack CONTROL I/O START (RELAY IN) connector Connector: 3.5-mm TS jack CONTROL I/O DISC EOM (RELAY OUT) connector Connector: 3.5-mm TS jack RS-232C Connector Connector: D-sub 9-pin PARALLEL Connector Connector: D-sub 15-pin Audio Performance Frequency Response 20 Hz–20 kHz: ±0.5 dB (JEITA) S/N Ratio 95 dB or more (JEITA) Dynamic Range 95 dB or more (JEITA) Distortion 0.005% or less (JEITA) Channel Separation 95 dB or more (1 kHz, JEITA) General / Power Supply AC 100-240 V, 50-60 Hz Power Consumption 10 W (CD-500), 11 W (CD-500B) Operating Temperature Range 41°-104° F (5°–40° C) Installation Tilt Within 30° Dimensions (H x W x D) 1.76" (44.9 mm) x 19" (482.6 mm) x 11.8" (300.5 mm) Weight 7.1 lbs (3.5 kg) - Documents
