Tascam CD-RW901MKII Professional CD Recorder/Player

Home /
Tascam CD-RW901MKII Professional CD Recorder/Player (Discontinued)

Description

Details

The Tascam CD-RW901MKII CD Recorder is a professional CD recorder that replace the best-selling and CD-RW901SL. A new TEAC tray-loading transport ensures years of reliable operation in the most demanding installations. The new transport also allows gapless recording when writing track markers, something not possible using off-the-shelf PC drives. Various recording features like automatic track creation help the operator create polished recordings without constant supervision. An AKM AK4528VM is used for AD/DA conversion for clean, clear sound quality with a frequency response of 20Hz to 20kHz +/-0.8dB.

With the CD-RW901MKII, balanced analog input/output jacks and external control terminals are included. Additionally, long-run continuous recording (and overlap recording) is possible by connecting multiple CD-RW901MKIIs with an accessory cable. An ISRC/RID code can be displayed to check the recording in a mastering studio.Whether used for PA/Sound Reinforcement playback, studio, mastering, or broadcast, the CD-RW900MKII and 901MKII are TASCAM's latest generation of reliable CD recording and playback.

Features

Features

Sync trim function (+/-125 frame, +/-1.67 seconds)
Automatic track division with trim function (+/-125 frame, +/-1.67 seconds)
Selectable COPY ID (free/1 generation/prohibit/SCMS)
Call function: Return to a point at which playback last started from ready mode
EOM (end of message) function: EOM indicator will light-up before the end of track or disc (1 to 99 seconds)
ISRC/RID code display function
Time skip function: While in playback or ready, moves the playback point to forwards or backwards (1 seconds increments)
Index search function: Search indexes within a track that were assigned during recording
Overlap recording function: Using two-units CD-RW901MKII to make continuous recording
Fader start/stop control via parallel control connector
D-sub 9pin RS-232C serial control connector
D-sub 15pin parallel control connector
XLR analog balanced inputs/outputs
XLR digital input/output (IEC60958-4:AES/EBU)

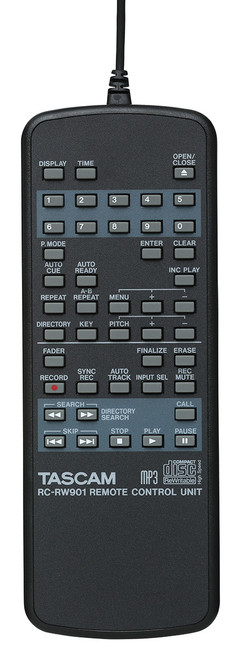

Wired remote controller included

Specification

Frequency Response	20 Hz-20 kHz +/- 0.8 dB (playback) +/- (recording)
Dynamic Range	95 dB (playback) 90 dB (recording)
Distortion	0.006 % (playback) 0.008 % (recording)
Channel Separation	90 dB (playback) 80 dB (recording)
Wow and Flutter	< 0.001 % (unmeasurable)
Phones Output	Stereo (6.3 ø) 20 mW32 Ø
Keyboard	Mini DIN 6 pin
Power Consumption	16W
Dimensions (H x W x D)	3.7" (94 mm) x 19" (482.6 mm) x 12.2" (309 mm)
Weight	9.9 lbs (4.5 kg)
