With redundancy of both the power supply and the video/audio clock, as well as many other functions that meet the strict demands of broadcasting and post production, the CG-2000 is at the top of its class.

Description

The TASCAM CG-2000 is a Video Sync/Master Clock Generator that is designed for the needs of broadcasting and post production. The crystal oscillator is the heart of the clock generator. In the CG-2000, an OCXO (oven-controlled crystal oscillator) is used for its high precision and is not influenced by the temperature of the environment. Boasting a clock frequency precision of 0.01 ppm, which exceeds that of a TCXO (temperature-compensated crystal oscillator), this unit is key in the creation of high-precision synchronization systems - with word output frequency stability of ±0.005ppm or less per day.

The CG-2000 is equipped with an external input connector that supports a 10MHz signal.  This allows it to be connected to a rubidium clock or GPS clock for even higher precision.

External clock jitter is reduced using an original TASCAM circuit design that incorporates a high-performance video clock generator engineered with an FPGA and a PLL (phase-locked loop) circuit with a discrete filter. This enables a stable clock signal to be provided to the video/word outputs - improving system stability. The glitch-free relock circuit prevents noise and skipping sounds caused by master clock dropouts.

In addition to (12) word clock outputs and (4) video outputs, the digital outputs include (2) AES3/AES11 and (2) S/PDIF outputs, making this unit useful for large-scale audio/video synchronization systems, and a wide variety of other applications. Of the (12) word outputs, two also support x2Fs, x4Fs, and 256Fs output - enabling them to be used in systems with ProTools and other DAW software.

The analyzer function measures output device termination, input level measurement, and the measurement of input frequencies. These built-in features enable the device to provide troubleshooting support. Additionally, a logging function enables issues to be listed and saved to a CSV file format on a USB flash drive.

Since crystal oscillators change over time, regular calibration is necessary. In order to avoid possible sync problems, timely inspections – along with regular maintenance is required. The CG Series has a self-correction function, enabling users to conduct maintenance using an external signal input and simple operations.

Features
  • High-precision OCXO (Oven-Controlled Crystal Oscillator) with 0.01PPM accuracy
  • Jitter management circuit for stable clock output
  • Glitch-free relocking circuit prevents noise and skipping during clock dropouts and recovery
  • 10MHz input for use with Rubidium or GPS clock generators
  • Twelve-word clock outputs, two of which support 1/2Fs, 1/4Fs, 2xFs, 4xFs, and 256xFs the selected rate
  • Two AES/EBU and two S/PDIF outputs
  • Four system presets, saved internally with USB drive backup
  • Sampling Frequencies from 32kHz to 192kHz are supported
  • Panel lock switch to prevent accidental changes
  • Four video clock outputs
  • Video clock input
  • Tri-level sync support for high-definition video
  • Clock Analyzer functions for troubleshooting
  • Dual redundant power supplies
  • Dual video and word clock inputs
  • AES/EBU clock input
  • GPO for tally alarms and status monitoring
  • 1U rack mount size

Specifications
Connector BNC x 2 (A/B)
Input Level 0.5Vp-p to 2.0Vp-p
Input Impedance 75ohm (ON/OFF selectable by menu)
Input Signal - SD Video Black Burst NTSC (29.97), NTSC B/W (30), PAL (25)
HD Video Tri-Level 720p: 50, 59.97, 60
1080p: 23.976, 24, 25, 29.97, 30, 59.94, 60
1080i/psf: 23.976, 24, 25, 29.97, 30
Allowable Frequency Deviation +/-10ppm
Connector BNC x 2 (A/B)
Input Level 0.5Vp-p to 5.0Vp-p
Input Impedance 75ohm/50ohm (75/50/OFF selectable by menu)
Supported Frequencies WORD CLOCK: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
ATOM: 10.0 MHz
GPS: 10.0MHz
Allowable Frequency Deviation +/-50ppm
Connector XLR-3-31 (1:GND, 2:HOT, 3:COLD)
Input Level 0.2Vp-p to 10Vp-p
Input Impedance 110ohm
Format AES11-2003, AES3-2003, IEC60958-4
Supported Frequencies 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Allowable Frequency Deviation +/-50ppm
Connector BNC
Input Level 0.5 to 5.0 Vp-p
Input Impedance 50ohm (ON/OFF selectable by menu)
Supported Frequencies ATOM: 10.0 MHz
GPS: 10.0MHz, PPS
Connector BNC x 4 (1-4)
Output Level 1.3Vp-p
Output Impedance 75ohm
Output Signal - SD Video Black Burst NTSC (29.97), NTSC B/W (30), PAL (25)
HD Video Tri-Level 720p: 50, 59.97, 60
1080p: 23.976, 24, 25, 29.97, 30, 50, 59.94, 60
1080i/psf: 23.976, 24, 25, 29.97, 30
Connector BNC x 12 (1-12)
Output Level 1.0Vp-p to 3.5Vp-p (adjustable in 0.5V steps by menu)
Output Impedance 75ohm
Supported Frequencies 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz 1/4xFs, 1/2xFs, 1xFs, 2xFs, 4xFs, 256xFs (Only OUTPUTS 11-12)
Connector XLR-3-31 (1:GND, 2:HOT, 3:COLD) x 2 (1-2)
Output Level 2.5Vp-p
Output Impedance 110 ohm
Format AES11-2003, AES3-2003, IEC60958-4
Supported Frequencies 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Connector RCA pin jacks x 2 (1-2)
Output Level 0.5Vp-p
Output Impedance 75ohm
Format IEC60958-3
Connector 6-pin Euroblock connector
Output Level Open collector
Transmission Method Parallel
Output Impedance 10ohm
Withstand Voltage 20V
Maximum Current 35mA
USB A data transfer use by a USB flash drive
Connector 4-pin type B
Protocol USB2.0 High Speed (480Mbps)
Power Supply Rating DC5.0V, 0.2A
TYPE OCXO
Frequency Accuracy +/-0.01ppm (factory default value)
Frequency Stability +/-0.005ppm / day
Power AC100V to 240V, 50/60Hz
Power Consumption 14W
Operating Temperature Range 0˚C to 40˚C
Included Accessories (2) Power cords, rackmounting screw kit, operation manual
Dimensions (H x W x D) 1.77" (45 mm) x 19.02" (483 mm) x 12.20" (310 mm)
Weight 7.28 lbs (3.3 kg)

DOCUMENTS

Related Products

Sold Out

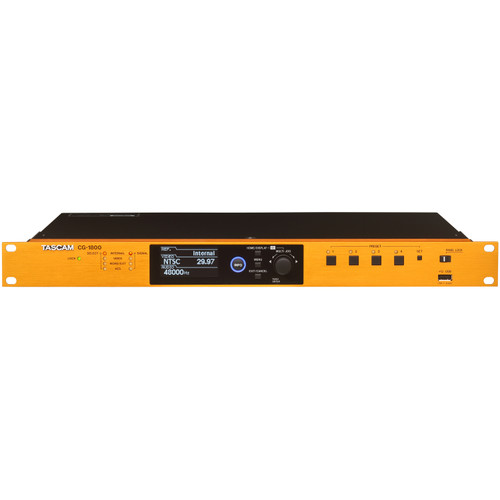

Tascam CG-1800 Video Sync/Master Clock Generator for Post-Production (Discontinued) Tascam CG-1800 Video Sync/Master Clock Generator for Post-Production (Discontinued)
