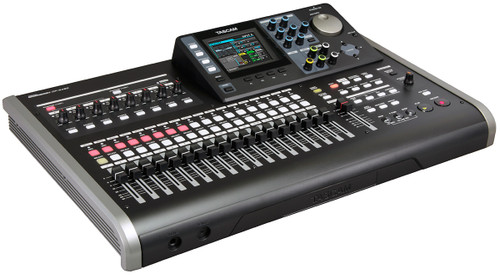

Tascam DP-24SD 24-Track Digital Portastudio
Description
The Tascam DP-24SD Digital Portastudio is a 24-track workstation, allowing eight tracks of simultaneous recording. The built-in mixer includes everything you need for a professional-sounding mix, from EQ and reverb to amp simulation and multi-band mastering effects. The Digital Portastudio series creates finished productions without the need for a computer, instead using a simple-to-use control surface to keep you creative.
For clear display of your mix, the DP-24SD has a large color LCD displaying tracks, meters, and effects parameters. A set of 12 encoders control EQ, effects sends, and panning. Built-in effects include compression, guitar amp modeling, delay, reverb, with a total of 10 effects processors available during mixing.
Eight XLR mic/line inputs each provide phantom power for condenser microphones, switchable in banks of four. One input includes an instrument-level impedance switch for direct input recording of guitar or bass. Balanced monitor outputs and effects sends are also provided on the rear panel. A USB output allows tracks and mixes recorded to your SD card to be transferred to a computer for CD burning or sharing online.
For a complete music production on a desktop, there's no simpler choice than the DP-24SD.
Features
- Simultaneous 24-track playback
- 12 mono tracks + 6 stereo tracks
- Simultaneous 8-track recording
- 16 or 24 bit, 44.1 or 48 kHz recording
- 8 XLR/TRS combo connectors
- Phantom power supplied on all inputs (INPUT A-D,E-H)
- High-impedance input available (INPUT H)
- Stereo RCA output
- 2 effect send outputs (1/4" TS jack)
- 70mW/ch headphone amplifier
- Remote connector for optional RC-3F footswitch
- INPUT A-H and each track equipped with 3-band EQ
- Automatic punch in/out
- Various edit functions (COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT)
- Undo and Redo function with Undo history
- Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)
- Guitar effects (Amp Simulator, Reverb, Compressor, Chorus, Flanger, Phaser)
- Mix-down effects (Reverb, Delay, Stereo Chorus)
- Mastering Effects (Multi-band Compressor, Equalizer, Dither, Normalize)
- Track bounce function
- Virtual track (8 virtual track per one track: including use track)
- Locate mark up to 99 for one song
- File transferring via USB2.0
- Chromatic tuner
- Metronome
- 19 Faders
- Peak-hold function on the level meter of the LCD
- Sub-frame editing
- Dedicated AC adapter included (TASCAM GPE248-120200-Z)
- SD card included
- RoHS certified
Specifications
| Recording Media | SD (512MB – 2GB) / SDHC card (4GB – 32GB) |
|---|---|
| File System | SD card: FAT16 / SDHC card: FAT32 |
| Input A-H | |
| XLR | Connector: XLR-3-31 (1: GND, 2: HOT, 3: COLD), Balanced Input Impedance: 2.4k ohms Nominal input level -14dBu Maximum input level: +2dBu |
| TRS | Connector: 1/4" (6.3 mm) TRS phone jack, Balanced Input impedance: 22k ohms or more / 1M ohms(when INPUT H, GUITAR selected) Nominal input level: +4dBu Maximum input level: +20dBu |
| Stereo Out | |
| Connector | RCA pin-jack, Unbalanced |
| Output Impedance | 200 ohms |
| Nominal Output Level | -10dBV |
| Maximum Output Level | +6dBV |
| Effect Sends | |
| Connector | 1/4" (6.3 mm) TS phone jack, Unbalanced |
| Output Impedance | 200 ohms |
| Nominal Output Level | –10 dBV |
| Maximum Output Level | +6 dBV |
| Monitor Out | |
| Connector | 1/4" (6.3 mm) TRS phone jack, Balanced |
| Output Impedance | 200 ohms |
| Nominal Output Level | -2dBu |
| Maximum Output Level | +14dBu |
| Phones | |
| Connector | 1/4" (6.3 mm) stereo phone jack |
| Maximum Output Level | 70mW + 70mW (THD+N 0.1% or less, 32 ohms loaded) |
| USB | |
| Connector | USB Mini-B type 4-pin |
| Format | USB2.0 High-Speed mass-storage class |
| Remote | |
| Connector | 2.5 mm TRS jack |
| Power | Dedicated AC adapter (TASCAM GPE248-120200-Z, included) |
| Power Consumption | 12W (when phantom power supplying) |
| Audio Performance | |
| Frequency Response | 20Hz to 20kHz (+/-1dB, INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT) |
| S/N Ratio | 90dB or greater (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT) |
| THD | 0.01% or less (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT) |
| Dimensions (H x W x D) | 4.1" (100.4 mm) x 20.2" (514 mm) x 13.4" (336.9 mm) |
| Weight | 13.67 lbs (6.2 kg) |
