Tascam DR-05 Portable Handheld Recorder (Discontinued)
Usually arrives in 5-9 business days.

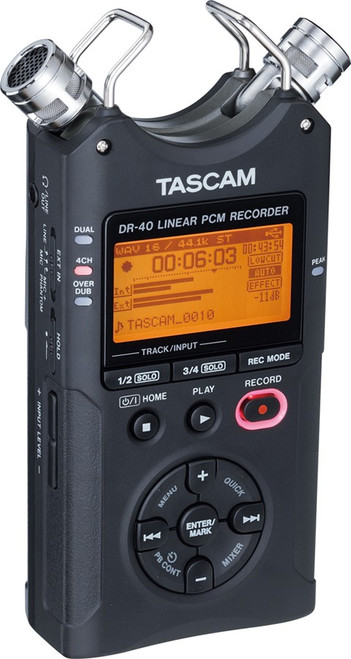

The adjustable mics, four-track recording and extended battery life of the TASCAM DR-40 give you the flexibility you need to record tracks anywhere.

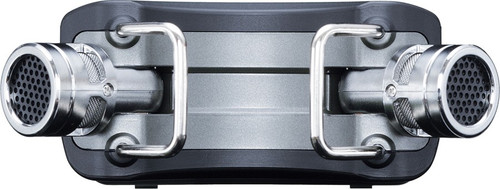

The DR-40 captures up to four tracks from built-in, high-quality condenser microphones, XLR mic or line inputs. The internal mics are adjustable from XY to AB position, helping you to tailor your recording to the sound of the room. A pair of great-sounding TASCAM microphone preamps welcome condenser microphones with phantom power, recording at up to 96kHz/24-bit resolution. It accommodates balanced XLR or 1/4" line inputs using locking Neutrik Combo jacks. The DR-40 accepts SD or SDHC cards up to 32GB, and a 2GB card is included.
Once recorded, play back your takes with EQ and the optional Level Align feature to avoid volume jumps. A stereo reverb effect is also built-in, as well as a speaker and chromatic tuner. Transfer recordings to computer using the USB 2.0 jack. Other features include overdub mode, variable speed playback, limiting and low cut filter, and much more – all with TASCAM's simple-to-use interface. No other recorder makes home or live recording as simple as the TASCAM DR-40.
| Recording Media | SD card (64MB to 2GB), SDHC card (4GB to 32GB) |
|---|---|
| File Format | WAV,BWF,MP3 |
| WAV / BWF | 44.1/48/96kHz, 16/24bit |
| MP3 | Sampling frequency: 44.1kHz/48kHz Bit-rate for recording: 32k/64k/96k/128k/192k/256k/320kbps Playback bit rate: 32 - 320kbps, VBR, ID3 tag Ver. 2.4 |
| Battery Operation Time | 17 - 20.5 Hours |
| Number of Channels | 4-channel (2 Stereo) |
| Playback Speed Control (VSA) | 0.5 - 1.5 times (in 0.1 increments) 44.1/48kHz only |
| Built-In Microphone | Unidirectional, stereo (Possible to switch between A-B/X-Y positions) |
| Mic/Line In Connector | XLR/TRS combo jack (1: GND, 2: HOT, 3: COLD) |
| Input Impedance (Mic/Line In) | 2.2k ohms (MIC) / 10k ohms (LINE) |
| Nominal Input Level (Mic/Line In) | -19dBV (MIC) / +4dBu (LINE) |
| Maximum Input Level (Mic/Line In) | -3dBV (MIC) / +20dBu (LINE) |
| Phones/Line Connector | 1/8" (3.5mm) stereo mini jack, Unbalanced |
| Output Impendence (Phones/Line) | 12Ω |
| Nominal Output Level (Phones/Line) | -14dBV (10kΩ loaded) |
| Maximum Output Level (Phones/Line) | +2dBV (10kΩ loaded) |
| Maximum Output | 20mW+20mW (32Ω loaded) |
| Built-in Speaker Output | 0.3W (mono) |
| Cut Off Frequency | 40Hz/80Hz/120Hz |
| USB Connector | Mini B type |
| Format | USB2.0 HIGH SPEED Mass Storage Class |
| Power | AC100 ~ 240V ,50-60Hz (AC adapter optional PS-P515U) |
| Power Consumption | 2.5W (Max) |
| Included Accessories | 2GB SD CardMini USB Cable |
| Frequency Response | 20Hz-20kHz +1dB/-3dB |
| Total Harmonic Distortion | 0.05% or less |
| S/N Ratio | 92dB or more |
| Dimensions (H x W x D) | 6.10" (155 mm) x 2.76" (70 mm) x 1.38" (35 mm) |
| Weight | 0.46 lbs (0.21 kg) |
