Tascam DR-60DMKII 4 Channel Audio Recorder for DSLR Filmmaking (Discontinued)
Description
TASCAM's DR-60DmkII, an update of the award winning DR-60D, is the audio recording solution for on-set filmmakers and videographers. The streamlined design fits perfectly under a DSLR camera rig, without relying on bulky recorders or the limited audio quality of the camera’s microphone in.
The DR-60DmkII is the next generation of 4-track solid-state recording, based on TASCAM’s decades of recording innovation. The upgraded HDDA microphone preamps provide up to 64dB of gain, capturing every nuance of a performance. Up to four channels at a time can be recorded to the internal SD Card, at up to 96kHz/24-bit WAV file resolution. Two of the mic inputs utilize locking XLR connectors with 48V phantom power, the other two use an 1/8” stereo connector for wireless and lavaliere microphones. A Camera Output sends the mic mix to the camera for later synchronization, and a Camera Input is provided for monitoring playback. An additional headphone out and line out assist the crew during filming. The DR-60DmkII is designed for low-noise operation, including soft touch buttons and dedicated gain controls.
Multiple recording modes are available on the DR-60DmkII. Four-Channel Mode records all four microphone inputs. Dual Recording is an alternate setting, capturing a copy of your audio at a lower level for a distortion-free safety track. Menus and operation are well laid out, owing to decades of innovative recording design.
Reach beyond the limited performance of your camera’s audio to capture the other half of your film. At a cost less than competing preamps, the TASCAM DR-60DmkII is the ultimate 4-track recorder designed for filmmakers, television, live events and web broadcast.
Features
- Record to SD/SDHC card (Up to 32GB)
- Simultaneously record up to 4 tracks
- Record Mode： MONO, STEREO, DUAL MONO, DUAL STEREO, 4-CHANNEL
- Recording format： 44.1/48/96kHz 16/24bit (WAV/BWF)
- TASCAM original HDDA microphone preamps
- Recording levels can be adjusted independently for the 1/L, 2/R and 3-4 inputs
- Two XLR/TRS inputs support +4dBu line level input and phantom power (24 or 48VDC on XLRF)
- Plug-in power and high-output mic input supported on inputs 3-4
- CAMERA OUT connector for output from the DR-60D's mixer (adjustable gain)
- CAMERA IN connector for sound monitoring from the camera
- Independent adjustable LINE OUT and HEADPHONE jacks for high-quality sound output
- 50mW/ch headphone output

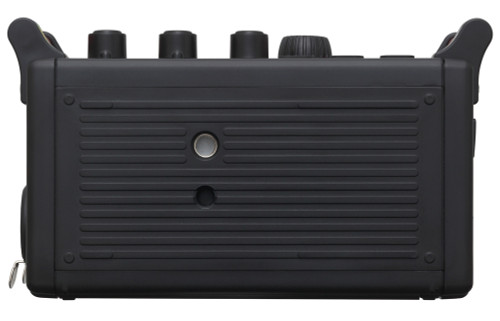

- Tripod mounting socket (bottom) and DSLR mounting screw attachment (top)
- Handles protect the screen and can be used to attach a shoulder strap
- Soft-Touch Rubber Keys for silent operation
- HOLD switch to prevent accidental operation
- QUICK button feature for easy access to various functions
- 128x64 pixel LCD with backlight
- USB 2.0 connection for high-speed transferring of files
- Mini USB cable included
- Operates on 4-AA batteries, an AC adapter (sold separately) or USB bus power
- Can extend battery life with BP-6AA battery pack (sold separately)
- Dedicated remote control jack for the wired RC-10 remote control or RC-3F footswitch (both sold separately)
- Internal mixer: PAN and LEVEL controls
- Low cut filter (40/80/120Hz)
- Limiter (1/L and 2/R can be selected for link-operation)
- Delay function for microphone distance adjustment (up to 150ms)
- M-S decode function
- Slate tone generator (AUTO/MANUAL)
- Selectable duration of slate tone from four positions (0.5/1/2/3 sec, when auto-generated)
- Selectable slate tone generation. 3 positions: OFF/HEAD/HEAD+TAIL, when auto-generated
- File name format can be set to use a user-defined word or date
- Dual-recording function allows two files to be recorded simultaneously at different levels
- Auto-record function can automatically start and stop recording at set level
- Pre-recording function allows the unit to record a 2 second sound buffer before recording is activated
- Self-timer function for solo recording
- New file starts recording automatically without interruption when maximum file size is reached
- Track incrementing function allows a recording to be split by creating a new file when desired
- Jump back and play function
- Equalizer function for playback, and level alignment function to enhance the perceived overall sound pressure
- Resume function to memorize the playback position before the unit is turned off
- MARK function up to 99 points per audio track
- DIVIDE function
Specifications
| Recording Media | SD card (64MB to 2GB), SDHC card (4GB to 32GB) |
|---|---|
| Recording Format | WAV: 44.1/48/96kHz, 16/24bit BWF: 44.1/48/96kHz, 16/24bit |
| Number of Channels | 4 channel (stereo x2) |
| Analog Audio Input | |

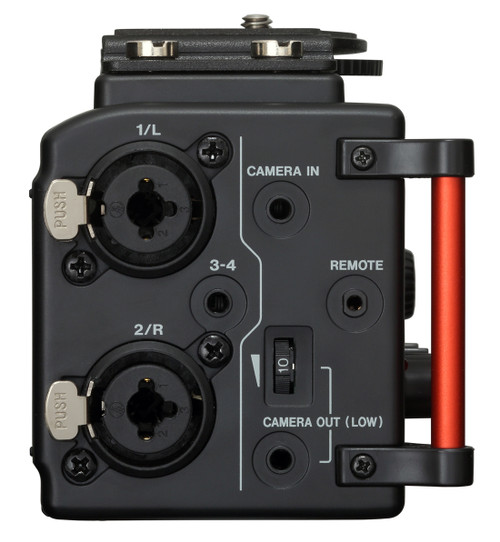

| 1/L, 2/R Connectors | XLR-3-31 (1:GND, 2:HOT, 3:COLD)/6.3 mm (1/4") TRS standard jack |
| Set to MIC / MIC + PHANTOM | Input Impedance: 2k ohms Phantom Power: 48V +/-4V (10mA/CH)/24V +/-4V (10mA/CH) Maximum Input Level: 0dBu Minimum Input Level: -72dBu MIC Input Gain: TRIM MAX LOW: +11dB MID: +36dB HIGH: +52dB |
| Set to LINE | Input Impedance: 10k ohms or more Standard Input Level: +4dBu Maximum Input Level: +24dBu |
| 3-4 Connector | Connector: 3.5 mm (1/8") stereo mini jack (this connector can be supplied plug-in power) Input Impedance: 10k ohms Maximum Input Level: +10dBV Minimum Input Level: -50dBV MIC Input Gain: TRIM MAX LOW: +3dB HIGH: +26dB |
| CAMERA IN Connector | Connector: 3.5 mm (1/8") stereo mini jack Input Impedance: 10k ohms Standard Input Level: -10dBV Maximum Input Level: +6dBV |
| Analog Audio Output | |
| CAMERA OUT Connector | Connector: 3.5 mm (1/8") stereo mini jack Output Impedance: 200 ohms Standard Output Level: -50dBV Maximum Output Level: -30dBV |
| LINE OUT Connector | Connector: 3.5 mm (1/8") stereo mini jack Output Impedance: 200 ohms Standard Output Level: -10dBV Maximum Output Level: +10dBV |
| PHONES Connector | |
| Connector | 3.5 mm (1/8") stereo mini jack |
| Maximum output level | 50mW + 50mW |
| USB | |
| Connector | Mini-B type |
| Format | USB 2.0 HIGH SPEED mass storage class |
| REMOTE | |
| Connector | 2.5 mm TRS jack |
| General | |
| Power | Four AA batteries (Alkaline or NI-MH) USB bus power Dedicated AC adapter (TASCAM PS-P515U, sold separately) Dedicated external battery pack (TASCAM BP-6AA, sold separately) |
| Power Consumption | 5.4W |
| Continuous Operation Time | 2ch WAV, 44.1kHz, 16bit rec |
| Operating Temperature | 0˚C to 40˚C |
| Standard Accessories | USB cable, warranty card, Owner's manual |
| Dimensions (H x W x D) | 3.67" (93.2 mm) x 5.24" (133 mm) x 3.07" (78 mm) |
| Weight | 1.12 lbs (510 g) |
