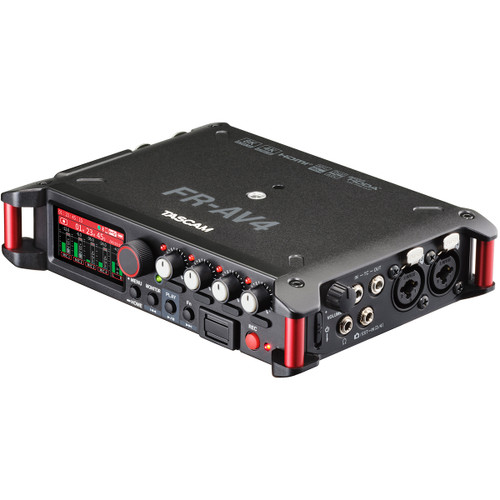

Tascam FR-AV2 Compact 32-Bit Float Audio Field Recorder and Timecode Generator
Usually arrives in 5-9 business days.
The FR-AV4 32-bit float field recorder is a professional audio solution for videographers, content creators, and sound designers. Equipped with dual AD converters and Ultra HDDA low-noise preamps on four XLR/TRS inputs, it captures every nuance with crystal clarity and 133 dB wide analog dynamic range. The 32-bit float recording ensures even the quietest whispers or loudest explosions are preserved without clipping.
With a built-in 4-channel mixer, the FR-AV4 allows mixing up to four inputs to two outputs and recording six tracks simultaneously (four individual tracks plus a stereo mix) to SDXC cards. It supports timecode generation, HDMI sync, and Atomos Bluetooth sync, providing precise AV alignment for 4K and 8K video. Its compact and rugged design makes it ideal for portable field recording, mobile setups, and studio use.
Additional features include selectable recording formats (24-bit/32-bit float at 48/96/192 kHz), a 6-in/2-out USB-C audio interface, an intuitive 1.9-inch touchscreen with a jog wheel, and professional processing tools such as EQ, limiter, noise gate, low-cut filter, and auto mix. The FR-AV4 also supports ambisonics recording, wireless monitoring, and app control via the free TASCAM RECORDER CONNECT app for iOS, iPadOS, and Android, enabling seamless integration into any modern audio workflow.
| Recording Format | WAV (BWF), MP3 |
|---|---|
| Recording Bit Depth | 24-bit, 32-bit float |
| Sampling Rates | 48 kHz, 96 kHz, 192 kHz |
| Maximum Input Channels | 4 |
| Maximum Record Tracks | 6 (4 inputs + 2-channel master mix) |
| Recording Media | SD, SDHC, SDXC cards up to 512 GB |
| Mic/Line Inputs | 4 x XLR/TRS combo inputs |
| Phantom Power | +24V, +48V selectable |
| Mic Preamp Noise | EIN -127 dBu |
| Dynamic Range | 133 dB or higher |
| Frequency Response | 20 Hz to 60 kHz depending on sample rate |
| Timecode | Built-in generator with TC In/Out and HDMI sync |
| HDMI Ports | HDMI Type-A In/Out, supports 4K60 and 8K30 |
| USB Interface | USB-C, 6-in/2-out audio interface |
| Power Consumption | 5.4W maximum |
| Headphone Output | 3.5 mm stereo, 50 mW + 50 mW |
| Power Options | 4 AA batteries, USB bus power, optional AC adapter |
| Dimensions (H x W x D) | 1.65" (42 mm) x 7.24" (184 mm) x 5.12" (130 mm) |
| Weight | 1.67 lbs (0.76 kg) |
