- Description
Details

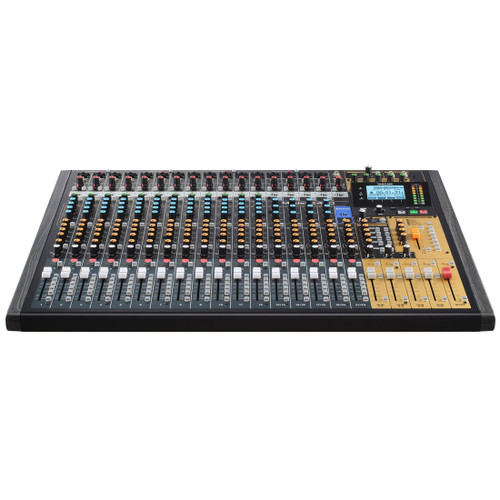

Tascam Model 2400 Mixer 24-Track Flagship Analog Recording Console and Live Mixer
Streamline Your Mix Process with Advanced Onboard Processing
The Model 2400's versatility doesn't compromise its mixing capabilities one bit. With per-channel compression, multiple sub groups, and master stereo bus processing including compression and EQ, you'll have the pro-level mix control you need in any scenario. Taking your project from tracking to a final master on the Model 2400 couldn't be simpler.
22 Channels and 24 Tracks, One Solution
With comprehensive 22-channel mixing capabilities, the Model 2400 is an ideal studio and live mixer for everything from larger combos and jazz ensembles to orchestra and choir ensembles. And when it comes to recording, no additional interface or computer are required.
Insert Professional Processors and Effects
Insert points on channels 1-12 allow you to easily integrate a studio rack full of processors and effects units. And, in addition to the onboard Master Bus processing, a send/return loop on the Main output allows you to connect external mastering gear such as compressors, EQs, stereo imagers and sonic exciters.
Ample Aux and Sub Outputs
With 5 Aux sends and 4 stereo sub groups, Model 2400 handles advanced mixing duties with ease. Create more monitor mixes without sacrificing an aux for effects. Connect multiple pairs of studio monitors for checking your mixes. In your studio or on stage, Model 2400 delivers the comprehensive connectivity and routing you need.
Professional Recording Capabilities
Model 2400 seamlessly integrates multitrack recording with studio and live mixing. With the ability to record 24 channels (22 inputs plus the stereo master) of high-quality audio direct to SD card media, Model 2400 is a powerful recording solution even if you're a DAW-less producer.
- Features
Features
- 24-track multitrack recorder using SDXC SD card (punch-in/out supported)
- 24 in / 22 out USB audio interface
- 22 analog input channel modules with 16 XLR Mic Pre-amps, utilizing TASCAM ultra HDDA Mic Pre-amp technologies and a one knob compressor (Ch 1-12)
- Equipped with input inserts (SEND/RETURN) on channels 1 - 12
- 5 Aux (4 Aux plus internal FX) sends, 4 stereo sub group and Main L/R
- MIDI in/out allows USB MIDI interface and MIDI sync, 1/4" audio click output with tempo control
- DAW transport control and REC READY control via HUI/MCU
- Dedicated Settings Panel application with Meter bridge
- Specification
Number of Analog Input Channels 22 (12 Mono / 5 Stereo) Number of Mic Preamps 16 Analog Output Channels 1x Stereo Master Output
1x Stereo Control Room/Monitor Output
5x Mono Aux Send Output
4x Stereo Bus/Subgroup Output
1x Mono FX Send Output
2x Stereo Headphone OutputMix Routing 1x Stereo Main Mix
4x Stereo Bus/Subgroup
5x Mono Aux Send
12x Mono InsertEQ 3-Band Parametric Built-In Effects 7x Reverb
3x Delay
1x Chorus
1x Flanger
2x Delay+Reverb
2x Chorus+ReverbUSB I/O 1x USB-B 2.0 (Audio Playback, Host Connection, I/O, MIDI, Multitrack Record) Wireless Bluetooth Max Multitrack Recording 24 Tracks Rack Mountable No Max I/O Capacity 22x Input / 20x Output Gain/Trim Range Mic Input: 74 dB Dynamic Processing Input Channels, Master: Compressor Sample Rates 44.1 / 48 kHz Bit Depth Up to 24-Bit Frequency Response Analog Input to Main Output: 20 Hz to 30 kHz Max Input Level Mic Input: 74 dB (Mic to Main Out) THD 0.003% Phantom Power +48 V, Selectable On/Off (Applied to All Inputs) AC Input Power Universal: 100 to 240 VAC, 50 / 60 Hz Dimensions (H x W x D) 5.22" (132.1 mm) x 26.79" (680.5 mm) x 22.36" (567.9 mm) Weight 30.9 lbs (14 kg) - Documents
Documents
- In The Box
In The Box
- (1) Tascam Model 2400
- (1) Power Cord
- (1) Startup Guide (Including Warranty)
- (1) TASCAM ID Registration Guide
