Tascam RC-F82 Communication Control Surface for HS-P82 (Discontinued)

Description

Details

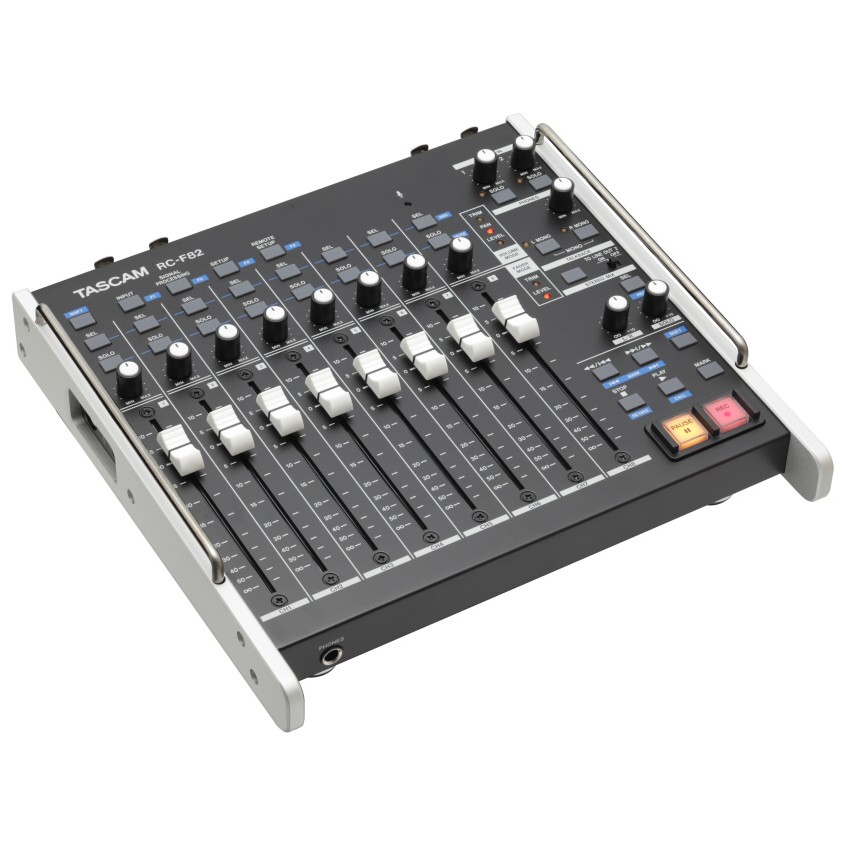

Adding to the mixing facilities of TASCAM's HS-P82, the RC-F82 is a mix controller, fader controller and talkback system for location recording applications. Eight 100mm faders control the 8x2 mixer or preamp trim on the HS-P82, allowing a stereo mix to be recorded in addition to the eight discrete tracks. Eight encoders can control trim, level or stereo pan. In addition to control, the RC-F82 has audio input and output routing with talkback for on-set communication. For reliable on-set recording with mixing and communication, the combination of the HS-P82 and RC-F82 can't be beat.

For reliable on-set recording with mixing and communication, the combination of the HS-P82 and RC-F82 can't be beat.

Features

Features

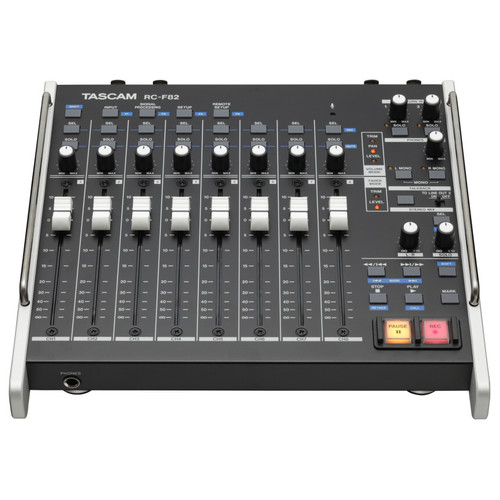

8 x 100mm faders with dust-resistant sealing control HS-P82 preamp trim or mixer level
8 x potentiometers control HS-P82 preamp trim, mixer level or pan
HS-P82 transport control
HS-P82 control buttons include select, solo, record, setup
Headphone monitor with selectable ch. 1, ch. 2, stereo
XLR Stereo Line Input
XLR Stereo Return input
2 x XLR Stereo Line Output with selectable talkback routing
Built-in talkback microphone for on-set communication
PS/2 out for HS-P82 control and power
PS/2 in for keyboard

Specification

Analog Inputs
LINE IN Connectors	Balanced connectors: XLR-3-31 (1: GND, 2: HOT, 3: COLD) Nominal input level: Dependent on HS-P82 settings Maximum input level: Dependent on HS-P82 settings Pass-through to LINE OUT 1 Pass-through to LINE OUT 2 (when TALKBACK TO LINE OUT 2 switch OFF)
RETURN IN Connectors	Balanced connectors: XLR-3-31 (1: GND, 2: HOT, 3: COLD) Input impedance: 10 kΩ Nominal input level: +4 dBu (1.23 Vrms) Maximum input level: +24 dBu (12.28 Vrms)
PHONES IN Connector	Connector: 1/4" (6.3 mm) stereo socket
Built-in Mic	Omni directional, monaural
Analog Outputs
LINE OUT 1 Connectors	Balanced connectors: XLR-3-32 (1:GND, 2:HOT, 3:COLD), Nominal output level: Dependent on HS-P82 setting
LINE IN Pass-Through Output
Output Impedance	150Ω
Nominal Output Level	–8 dBu (0.3 Vrms)
Maximum Output Level	+8 dBu (2.0 Vrms)
PHONES Connector	Connector: 1/4" (6.3 mm) stereo socket Maximum output level: 90 mW + 90 mW (1 kHz, THD+N 0.1%, into 32Ω)
Control Input/Output

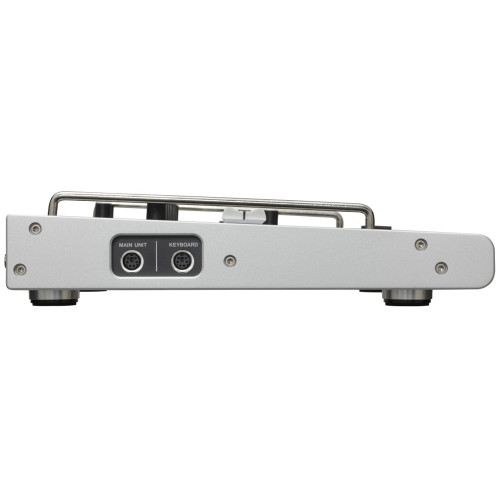

MAIN UNIT Connector	Connector: 6-pin mini-DIN socket
KEYBOARD Connector	Connector: 6-pin mini-DIN (PS/2) socket
Voltage	DC 5V (supplied by the HS-P82 unit)
Power Consumption	1 W or less
Operating Temperature Range	0 – 40° C/32 – 104°F
Dimensions (H x W x D)	2.48" (63 mm) x 10.63" (270 mm) x 10.24" (260 mm)
Weight	5.512 lbs (2.5 kg)
