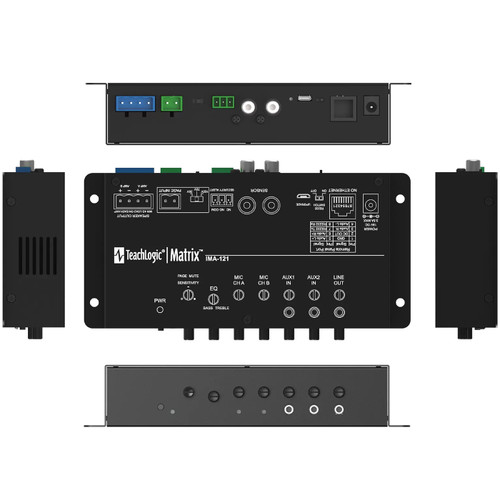

TeachLogic IMA-121 Matrix (Gen 2) 50W Receiver Amplifier

TeachLogic IMA-121 Matrix 50W Receiver Amplifier

The Matrix™ is ideal for any room where the amplifier needs to out of sight and/or in a vault for security. It connects to the same ceiling sensor and speakers as their other user-friendly systems.

However, with a simple CAT-5 cable, the TeachLogic CPS-120 (or CPR-125) wall controller manages the audio sources and volume levels so that the amplifier can be installed somewhere secure.

The controller has an intuitive touch interface with the additional benefits of Bluetooth and an additional 3.5 mm input. When combined with up to 2 wireless microphones and four (8-ohm) overhead speakers, the Matrix™ is more than just a sound system…it creates a true “Sound Field” in the classroom so every student hears all audio sources equally well.

• 2 infrared wireless microphone receivers with volume control
• 2 stereo, line level, or aux inputs (3.5 mm)
• 1 dual mono line level output for Assistive Listening System with gain control (3.5 mm)
• 2 Power Amplifiers: Total 50 W RMS (Class D amplifier, 25 W ea channel)
• Security Alert, contact closure, N/O, N/C
• Page override (muting) with Page Pass-through to classroom speakers | Input level 100 V, 70 V, 25 V

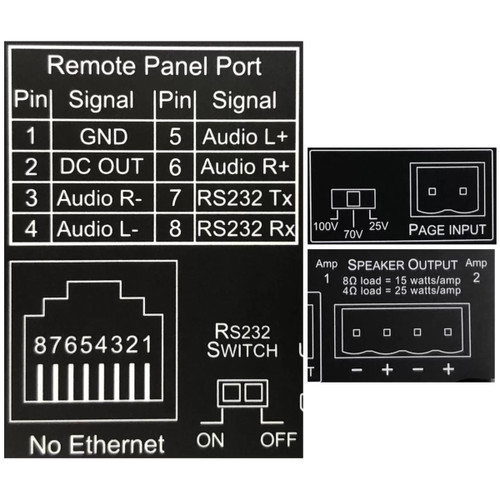

• RS-232 wall panel control, RJ-45
• RS-232 on/off switch
• Teacher Priority instantly attenuates all line inputs
• Bass/Treble control equalizer ±12 dB
• 2 external microphone sensor inputs, single RCA
