TeachLogic Maxim III Classroom System with 4 Wall Mount Speakers and Wireless Microphone

The Maxim III is our premiere Digital hybrid sound-field system for use in the classroom. The four auxiliary inputs provide multimedia integration with even distribution of sound for all audio in the classroom. RS-232 wall panel control of the line inputs, Fire alarm mute connection (AC or DC), remote Teacher Security Alert, teacher priority with instant attenuation of the line levels via Sapphire IRT-60 pendant and Digital Feedback Guard (DFG) and switchable computer anti-hum circuit on computer input. The Maxim III also features an output for recording the day’s lesson capture.

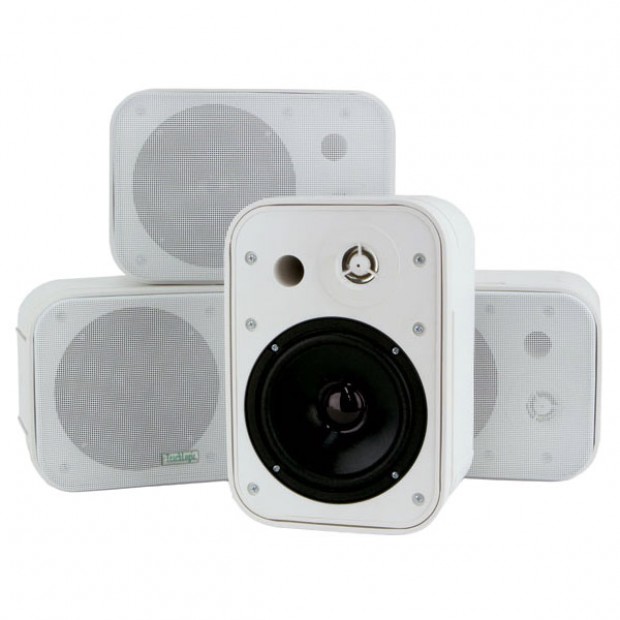

The SP-2000 is a full range 2-way compact wall mount/shelf mount speaker, providing low distortion and a smoother frequency response ideal for articulate vocal clarity for more even coverage. The included wall-mount bracket enables the unit to be secured against a wall or other flat surface.

The Sapphire is a stylish lightweight classroom microphone. So small, it’s hardly noticeable to wear. It can be worn with a lanyard or clipped directly to your neckline collar. The Sapphire’s vocal clarity is unsurpassed. It boasts high level output, reliable connectivity and exceptional definition. With a built-in breath filter, the Sapphire can also function as a pass-around hand mic.

SP-2000 Wall Mount Speakers:

• Two-way speaker
• 6" woofer and a high efficient 1" mylar domed tweeter
• Passive crossover
• Housed in a ported enclosure
• Shielded magnet to prevent video interference
• Frequency Response: 80 Hz–16,000 Hz, ± 6dB
• Impedance: 8 Ω
• Power Handling: 30 watts Continuous
• Structural reinforced ABS enclosure with metal mesh grille
• Mounting bracket for wall-mount or desk top stance
• Spring terminal for secure speaker wire connection
• White Color



IMA-520 Maxim III Amplifier:

• Security Alert contact connection
• Fire Alarm input AC or DC from 5-24 Volt
• Security Alert contact connection
• Page Over-ride (muting) with Page Pass-through to classroom speakers input level 100V, 70V, 25V
• Four line inputs for DVD, Computer, MP3 & Aux
• Auxiliary ijput (Mic or Line level switch)
• Computer Balum anti-hum (On/Off switch)
• Front-panel auxiliary input for MP3 (3.5 mm)
• DVD input dual RCA on rear panel
• Aux and Computer input 3.5 mm on rear panel
• Lesson Capture output with level control on rear panel 3.5 mm
• ALS output with level control on rear panel 3.5 mm
• Five-band equalizer
• DFG (Digital Feedback Guard)
• Remote Teacher Priority over line inputs
• Power up to four (4) speakers
• Power sleep mode to conserve energy
• Drop-in charger connection 5volt DC USB
• Rack or shelf/wall mounting kits (optional)



ICS-55 Ceiling Dome Sensor:

• Easily installs on ceiling "T" bar with track bracket
• Six large receiving diodes for superior infrared reception
• 50ft 75 ohm dual-shielded plenum-rated cable



IRT-60 Sapphire Infrared Microphone:

• Elegant Design
• Only 1.4 oz including battery
• Long life "Lithium ion" battery
• Rechargeable via micro USB cable
• Battery level indicator
• Back light under power switch
• Momentary mute button, Backlight blinks in mute mode
• Push "on/off" power
• Channel A or B selectable
• Three level mic volume switch (HI, MID, LOW) Normal, - 3dB, - 6dB
• Auxiliary input (3.5 mm)
• Low profile clip for mounting
• Wear with a lanyard or directly to neckline collar with clip

SP-2000 Wall Mount Speakers

IMA-520 Maxim III Amplifier

ICS-55 Ceiling Sensor Dome

IRT-60 Infrared Sapphire Microphone

• (4) SP-2000 Wall Mount Speakers
• (4) Mounting Brackets
• 100ft Plenum Rated 18G Speaker Wire
• (1) IMA-520 Maxim III Amplifier
• (1) ICS-55 Ceiling Dome Sensor
• 50ft Plenum Rated Cable
• (1) IRT-60 Sapphire Infrared Microphone with Clip
• (1) Microphone Lanyard
• (1) Rechargeable Lithium-ion Battery
• (1) BRC-15 USB Microphone Charger
