Telex LH-302-DM-A4F RTS Double Sided Headset with Dynamic Microphone - A4F Connector
Telex LH-302-DM-A4F RTS Double Sided Headset with Dynamic Microphone - A4F Connector
Telex LH-302-DM-A4F RTS Double Sided Headset with Dynamic Microphone - A4F Connector
By Telex

Telex LH-302-DM-A4F RTS Double Sided Headset with Dynamic Microphone - A4F Connector

Write a Review
Part #:
F.01U.307.544
Model #:
LH-302-DM-A4F
Availability: Usually arrives in 10-15 business days Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

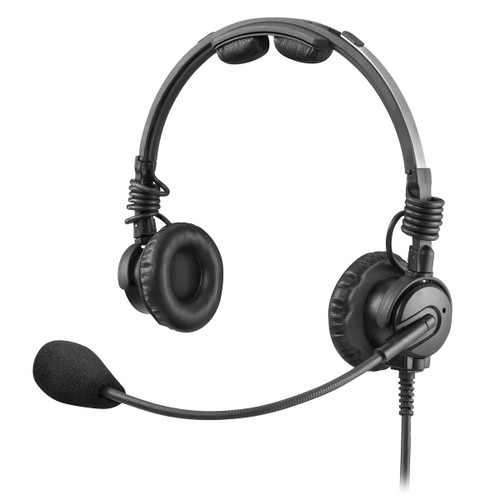

The Telex LH-302 RTS headset is a dual-sided lightweight headset for ultimate daylong comfort and offers a noise-canceling microphone with a semirigid, fully adjustable boom for precise positioning.

Description

LH-302-DM-A4F Double-Sided Headset with Dynamic Microphone and A4F Connector

The LH-302 headset is a dual-sided lightweight headset for the ultimate in daylong comfort. Offering a noise-canceling microphone with a semirigid, fully adjustable boom for precise positioning. The high-quality wide band dynamic earphones are covered in a pliable material for better fit, isolation and frequency response. Includes a 4-pin XLR female connector.

Features
  • Fully rotating boom microphone positionable for right- or left-side use
  • Boom mounted, noise-canceling electret microphone
  • Soft, pliable ear cushions and headband pads

Specifications
Headphones
Type Dynamic
Impedance 150 W ±20% @1kHz
Frequency Response 200Hz – 10 kHz (-10 dB re. 1 kHz)
Sensitivity 98 ± 4 dB SPL @ 1kHz & 1 mW with B&K 4153 (150 Ω)
100 ± 4 dB SPL @ 1kHz & 1 mW with B&K 4153 (300 Ω)
Microphone
Element Type Noise-Canceling Dynamic
Impedance Dynamic : 200 Ω
Electret : approx. 2.2 kΩ
Frequency Response Dynamic : 200 Hz – 6500 Hz
Electret : 200 Hz – 10 kHz
Sensitivity Dynamic : -63 ± 3.5dB re: 1 V/Pa @ 1 kHz
Electret : -41 ± 3.5dB re: 1 V/Pa @ 1 kHz
Operating Voltage Electret Microphone : 2V through 2.2K resistor
Connector Type 4-pin female XLR
Cord Length 6 ft. ± 4 in. (1.8m ± 10 cm.) (measured from tip to the earshell)
Weight (with Cord) 0.375 lbs (0.17 kg)
Wearing Weight (without Cord) 0.21 lbs (0.090 kg)
