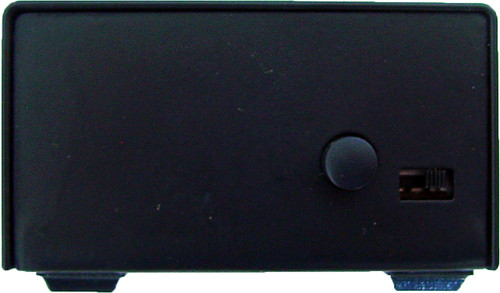

The Rolls PI9 Phone Patch II (Discontinued)

Part #:
PI9
Model #:
PI9
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Rolls PI9 takes a signal from a standard telephone jack and,via transformer isolation, connects to a pair of RCA jacks or a stereo 1/8" (3.5mm) jack.

Description

The Rolls PI9 takes a signal from a standard telephone jack and, via transformer isolation, connects to a pair of RCA jacks or a stereo 1/8" (3.5mm) jack. The isolation keeps the output signal separate from the telephone line and will not keep the line open unless the internal jumper is moved. Applications for the PI9 include broadcast, conference rooms, phone training or wherever a phone conversation needs to be recorded or heard over a PA system. The PI9 does not work with phone systems only a POTS line (plain old telephone system).

Features

  • 2 parallel RJ11 telephone jacks
  • Transformer isolation
  • Dual RCA, and an 1/8” (3.5mm) output
  • Passive - requires no power
  • Does not work with telephone systems or VOIP
  • Requires prior knowledge of telephone interfaces
  • Very limited support for this product

Specifications

Input Impedance 600 Ohms
Output Impedance 10 K Ohms
Ringer Equivalence 0.0 A, 0.0 B
Connections 2; RJ11 phone jack,2: RCA jacks,1: Tip-Ring-Sleeve 3.5mm jack
Tip-Ring-Sleeve 3.5mm jack
Dimensions(H x W x D) 1.45" (3.68 cm) x 2.7" (6.86 cm) x 2.32" (5.89 cm)
Weight 1 lb. (0.45)
