Health and Counseling Center Patient Privacy System
When it comes to talking about private and revealing information, it is easy to feel uncomfortable or embarrassed. Patients need a safe place to talk without fear of information leaving the room. The Cambridge Qt speech privacy system can provide your patients with a sense of privacy and confidentiality during their therapy sessions. This HIPAA compliant sound masking system ensures that speech is less intelligible to anyone outside the room. Whether in a small office or large area for groups, this system is perfect for any psychiatry offices, treatment centers, family counseling centers, group counseling or group therapy centers.
An All-in-One Solution for Speech Privacy

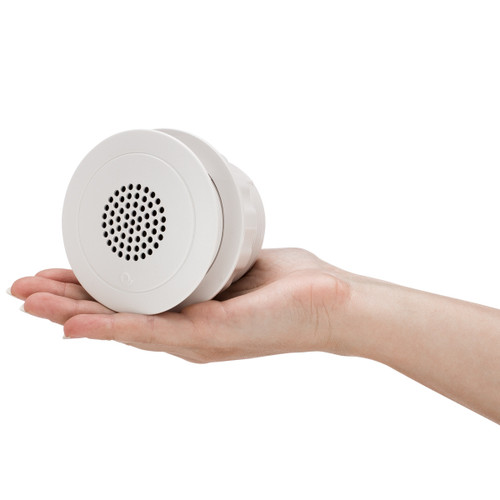

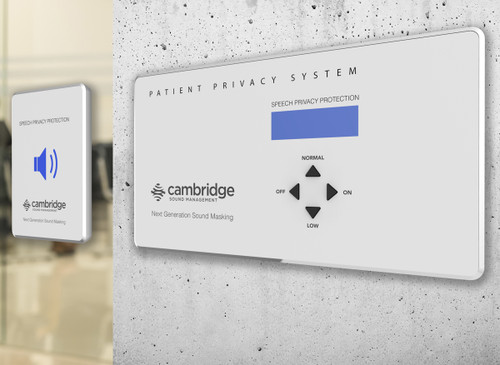

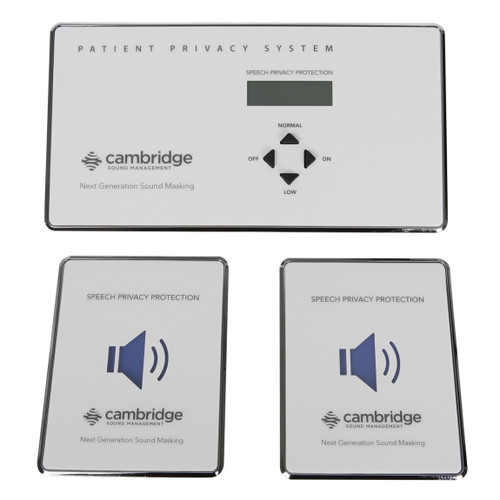

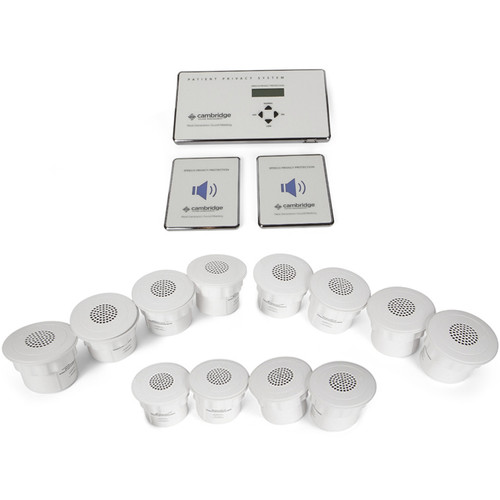

This Qt Patient Privacy System consists of a control module, two lighted privacy signs, and 12 direct-field sound masking emitters. The intuitive control module can be installed in a reception area, in an office, or mounted to any wall. Once turned on, the emitters installed in the ceiling add a low level of background sound into the space that will make human speech less intelligible. Lighted privacy signs turn on to indicate the system is running, and let patients know that their conversations are being protected.
Easy to Retrofit into Existing Spaces
The Qt Patient Privacy System can be installed quickly and inexpensively in any facility through Cambridge Sound Management's nationwide network of certified sound masking professionals. Privacy signs can be surface mounted, glass mounted, or mounted into a gang box, easily blending in with modern medical office décor.
Mounting Options

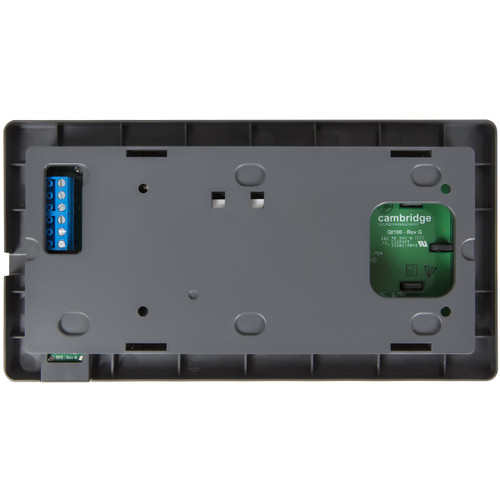

The control module can be surface mounted directly to the wall, flush mounted with the supplied box, or flush mounted to a suitable 4-gang electrical box (or 3-gang using EU/UK hardware). The privacy signs can be mounted on glass using the hider plate, surface mounted with self-adhesive tape, or mounted using a 1-gang box (North America NEMA or EU/UK types).
* The entire system is GreenSpec listed, consuming less than 7 watts of power. The system can help enable LEED v4 certification in the categories of acoustics and daylight harvesting.
| Control Processor/Privacy Signage | |
|---|---|
| Sound Masking Frequency Response | 1200 Hz to 6,300 Hz |
| Music / Paging Frequency Response | 1200 Hz to 10,000 Hz |
| Masking Min - Max SPL | 1, 30 dBA to 60 dBA @ 1 meter distance |
| Music / Paging Max SPL | 1 62 dBA @ 1 meter distance |
| User Adjustable Equalization | None - Internally Fixed Masking Spectrum |
| Non Correlated Masking Sources | 4 Masking Sources |
| Number of Masking Zones | 1 Zone - (2 Cable Runs per Zone) |
| Number of Audio Inputs | 1 Audio Input - (Stereo or Mono) |
| Audio Input Level | +4 dBu (2 Volts RMS Max) |
| Audio Input Impedance | 5000 Ω |
| Audio Input Connector | Captive Screw Terminal (Balanced / Unbalanced) |
| Remote Control Function | Quantity 1 - Contact Closure Input (Normally Open) / Qty 1 - 5Vdc Logic Status Output |
| Remote Control Connector | Captive Screw Terminals |
| Minimum Output Impedance | 2 Ω per channel |
| Power Input | Captive Screw Terminal & Coax Power Plug (center pin positive) |
| Privacy Sign Connections Controller | Qty 2 - Captive Screw Terminals - 5Vdc output @ 75ma |
| Privacy Sign Connections Sign | Qty 1 - Spring Loaded Push Terminals - 5 Vdc input @ 75ma |
| Output Connections | RJ45 x Quantity 2 (8 Conductor) |
| Masking Level Adjustment | Four Front Panel Buttons w/ LCD Display - 0.5 dB steps |
| Masking Ramp Times | 0 to 120 Seconds - up and down ramp times are independent (Front Panel / Remote Control) |
| Audio Input Level Adjustment | Four Front Panel Buttons w/ LCD Display - 1 dB steps |
| Setup Menu Access | Four Front Panel Buttons w/ LCD Display |
| Emitter / Device Capacity | 60 Qt Emitters per Run - 120 Qt Emitters Total |
| Maximum Emitter Cabling Distance | 1000ft (300 meters) per cable run |
| Maximum Power Consumption | 7 Watts @ 24 VDC |
| Power Supply Operating Voltage | Input: 100 - 240 VAC @ .6 Amp Output: 24 VDC @ 1.0 Amp |
| Included Control Processor Accessories | Power Supply / ACT Hole Saw / Box Adapter Plate (4-Gang US - 3- Gang UK/EU) / ST-1000 Back Box |
| Included Privacy Sign Accessories | Qty 2 - Single Gang Electrical Enclosure Backing Plate / Qty 2 - Glass Finishing Plate with Adhesive Strips |
| Firmware Update | Yes - Integrated USB Connector |
| Controller Mounting | Wall Mount - (Back plate included) / Electrical Box (US/UK/EU Adapter Included) / Supplied Backbox |
| Privacy Sign Mounting | Single Gang Electrical Enclosure (North American Nema or EU/UK types) / Self Adhesive Strips |
| Control Processor Color | White |
| Privacy Sign Color | White w/ Blue LED |
| Certifications | FCC Part 15 RoHS Compliant CE US STD 60065 CAN/CSA STC C22 2 60065 ETL Listed Green Spec Listed |
| Operating Temperature Range | 40°F to 90°F (4°C to 32°C) |
| Privacy Sign Dimensions (H x W x D) | 0.19" (4.8 mm) x 3.5" (90 mm) x 4.5" (113 mm) |
| Controller Dimensions (H x W x D) | 0.875" (23 mm) 7.0" (179 mm) x 3.5" (89 mm) |
| Controller & Privacy Sign Weight | 0.8 lbs (0.35 kg) |
| Qt-Emitters | |
| Sound Masking Frequency Response | 200 Hz - 10,000 Hz |
| Music / Paging Frequency Response | 200 Hz - 10,000 Hz (-10 dB) |
| Masking Min - Max SPL | 30 dBA - 60 dBA @ 1 meter distance |
| Music / Paging Max SPL | 62 dBA @ 1 meter distance |
| Nominal Impedance | 3600 Ω |
| Nominal Dispersion | 170 degrees conical / half space |
| Connections | Input / Output - RJ45 Modular Jack |
| Channel Selection | Four Channel Auto Sequencing and Repeating |
| Selectable Attenuation | 0 dB, -3 dB, -6 dB, -9 dB |
| Cabling | Category UTP Cabling (8 conductor) |
| Included Accessories | Acoustic Ceiling Tile Mounting Ring - UTP Cable (16ft/30ft) |
| Loudspeaker Type | Passive w/ Transformer |
| Maximum Power Consumption | .02 Watts |
| Enclosure | Sealed |
| Color | White (Optional Black Caps and Accessories) |
| Certifications | UL 2043 |
| Cabling | Qty 1 - 50ft Emitter Cable / Qty 7 -16ft Emitter Cables / Qty 2 - 50ft Privacy Sign Cables - Included in Kit |
| Emitter Cabling Type | CMP (Plenum) UTP Twisted Category 3 Cable |
| Privacy Sign Cabling Type | CMP (Plenum) 20AWG 2 Conductor Cable |
| Driver Dimensions (Dia) | 1.25" (32 mm) |
| Emitter Dimensions (H x W x D) | 2.5" (64 mm) x 3.25" (83 mm) |
| Emitter Weight | 0.72 lbs (0.329 kg) |
