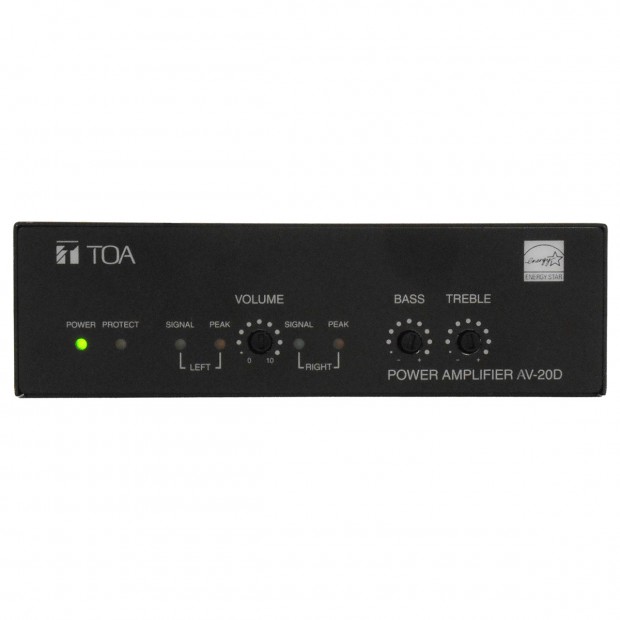

TOA AV-20D Compact Plenum Rated 2-Channel Micro Power Amplifier
TOA AV-20D Compact Plenum Rated 2-Channel Micro Power Amplifier
By TOA Electronics

TOA AV-20D Compact Plenum Rated 2-Channel Micro Power Amplifier

Write a Review
Part #:
AV-20D AM
Model #:
AV-20D
Availability: Limited Stock - Contact Us for Availability Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The TOA AV-20D micro amplifier is an ideal choice for corporate meeting rooms, POS/signage and kiosks or any place where space and placement limitations are a factor.

Description

The AV-20D introduces a new standard in small amps for plenum use. With ultra-compact size, a flexible compliment of inputs and power configuration, control features and carrying both UL2043 and Energy Star 3.0 certification, the AV-20D is an ideal choice for corporate meeting rooms, POS/signage and kiosks or any place where space and placement limitations are a factor.

Features
  • 20W x 2 @ 4 Ohms / 40W @ 8 Ohms in Bridge Mode
  • Micro Class D amplifier for use in meeting/board rooms & signage applications
  • UL 2043-rated for plenum installation
  • Energy Star certified including Auto Off/Standby
  • Small in size (approx. 6" x 6" x 1.75") allows convenient & flexible placement
  • L/R Line inputs via: removable Transformer-Balanced Terminal Block, 1/8" TRS mini-jack and RCA connections
  • Bass & Treble Controls
  • Input signal present (-20dB) and Peak LED indicators
  • Clip Limiter prevents distortion due to overload
  • Remote Volume Control port for use with 10k Ohm pot
  • Volume Control Attenuators

Specifications
Power Source 100V-240V AC , 50Hz/60Hz
Rated Output 15W x 2 @ 8 Ohms, 20W x 2 @ 4 Ohms,40W x 1 @ 8 Ohms (Bridge)
Power Consumption Rated Output: 63W
Idle: Less than 6W
Power Save Mode: Less than 1W
Frequency Response 20Hz to 20KHz ±3dB (Line 1 input with transformer: 100Hz to 20KHz)
Total Harmonic Distortion (THD+N) Less than 0.15%
Input Line 1: –10/-20dB (selectable), 10 K Ohms, transformer-balanced, removable terminal block
Line 2: –10/-20dB (selectable), 10 K Ohms, unbalanced, 3.5mm stereo jack
Line 3: –10/-20dB (selectable), 10 K Ohms, unbalanced, RCA jacks
Output Speaker Output, Removable terminal block (4P)
Tone Control Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Controls Master volume control
Remote volume control
Bass tone control, Treble tone control
Bridge ON/OFF Switch
Mono/Stereo switch
Input sensitivity switches (Line 1, Line 2, Line 3)
Indicator Power LED, Protection LED, Signal LED, Peak LED
Other Features Automatic Level Control, Thermal/Over-current protection
Operating Temperature -10 to +40°C
Case Black metal case
Dimensions (H x W x D) 1.73" (44 mm) x 5.90" (150 mm) x 6.14" (156 mm)
Weight 2.2 Ibs (1 kg)
