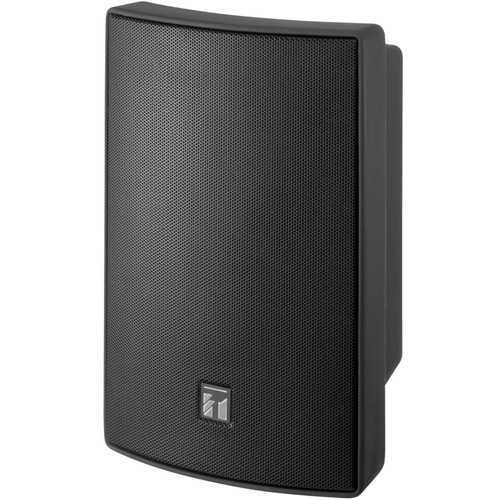

The BS-1030B is a compact 4-inch 2-way bass-reflex universal speaker designed to deliver clear speech and natural music reproduction in commercial audio applications. Its wide frequency response and efficient bass-reflex design deliver excellent sound quality for paging, background music, and public address systems. Finished in black, the speaker blends seamlessly into offices, retail stores, schools, hospitality venues, and other professional environments.
Designed for installation flexibility, the BS-1030B supports both 100V distributed audio systems and 8-ohm low-impedance operation, with convenient impedance selection via an integrated rotary switch. Multiple mounting options allow the speaker to be positioned for optimal coverage in a variety of installations, making it suitable for both permanent commercial AV systems and general-purpose sound reinforcement.
The speaker's IPX3 splash-proof construction allows installation in protected outdoor locations such as under eaves where it is shielded from direct rain exposure. Combining reliable performance, versatile installation options, and cost-effective operation, the BS-1030B is an ideal solution for everyday commercial paging and background music applications.
| Enclosure | 2-way bass-reflex type |
|---|---|
| Rated Input | 30W |
| Rated Impedance | 8Ω 100V line: 330Ω (30W), 500Ω (20W), 670Ω (15W), 1 kΩ (10W), 2 kΩ (5W) 70V line: 170Ω (30W), 250Ω (20W), 330Ω (15W), 500Ω (10W), 1 kΩ (5W) |
| Sound Pressure Level | 90 dB (1W, 1 m) |
| Frequency Response | 80 Hz - 20 kHz |
| Speaker Component | 12 cm cone-type + dome-type |
| Speaker Cable | 2-core cabtyre cord with diameter of 6 mm |
| Water Protection | IPX4 (can be installed vertically or horizontally) |
| Operating Temperature | 14°F to 122°F (-10°C to +50°C) |
| Finish | Enclosure: ABS resin, black (RAL9011 Graphite Black), paint Net: Surface treated steel plate, black (RAL9011 Graphite Black), powder coating Bracket: Surface treated steel plate, black equivalent to RAL9011 Graphite Black, powder coating |
| Included Accessories | Bracket x1, Bracket mounting screw x2, Bracket mounting washer x2 |
| Optional Accessories | Applicable bracket: WCB-13B, SP-410 Applicable stand: ST-16A |
| Dimensions (H × W × D) | 11.42" (290 mm) x 7.72" (196 mm) x 5.90" (150 mm) (unit only) |
| Weight | 5.51 lbs (2.5 kg) |
