- Description
Details
The TOA CA-115 15 Watt Mobile Mixer Amplifier is ideal for remote applications requiring a compact and powerful mixer/amplifier for public address or emergency paging. It is powered with a standard 12 Volt DC battery and operate into four or eight ohm speaker loads. The CA-115 includes two microphone inputs with individual volume controls, a handheld microphone with talk switch, and an auxiliary input for connecting an external CD player, radio, tape deck or tone generator. All mounting hardware is included for easy installation under dashboard or into a standard console cutout.
- Features
Features
- Mobile mixer/amplifier for remote applications
- 12 VDC powered
- Supports 4 or 8 ohm speaker loads
- Two microphone inputs with volume controls
- Handheld microphone Included - unidirectional, dynamic-type with talk switch, 6' cord and mounting hardware
- Auxiliary input for connecting an external CD player, radio, tape deck or tone generator
- Mounting hardware included - mounts under dashboard or into standard DIN-size console cutout
- Specification
Power Source 10 - 16 VDC Rated Output 15W (at 4/8 Ω) Current Consumption Less than 3 A Inputs Mic 1 and Mic 2: 4 mV, 600 Ω, 1/4" Phone Jack; Aux: 500 mV, 10 kΩ, 1/4" Phone Jack Finish Front Panel: ABS Resin, Black; Case: Zinc-plated Steel, Black Frequency Response 100 Hz - 10 kHz (± 3 dB) Distortion Less than 5% (1 kHz. rated output) Microphone (Included) Dynamic, Unidirectional with Talk-Switch,-53 dB (1 kHz, 0 dB = 1 V/Pa), 600 Ω Dimensions (H x W x D) 1.97" (50 mm) x 7.01" (178 mm) x 5.20" (132 mm) Weight 1.98 lbs (0.9 kg) - Reviews
Write Your Own Review
Related Products
-

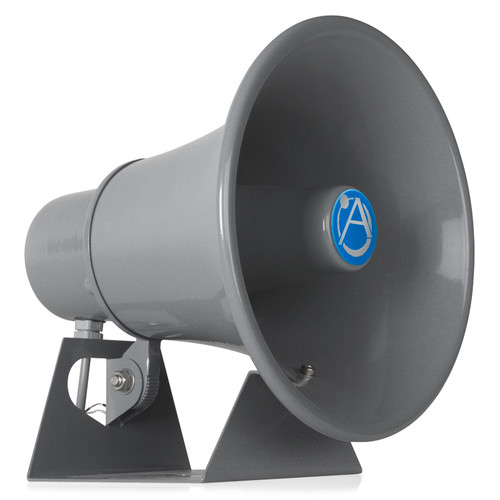

Atlas Sound RCMR-15 Weather Resistant Mobile Communications Loudspeaker
