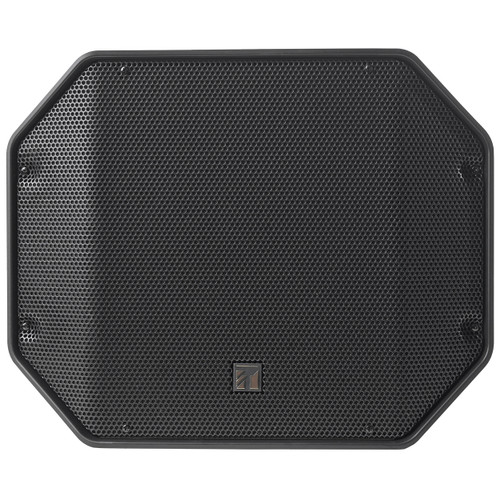

The CS-761B is a two-way speaker featuring a coaxially positioned 16 cm (6.5") cone speaker and 2.5 cm (1") tweeter. This speaker provides high-quality sound broadcasts with excellent clarity, not only indoors, but also in semi-outdoor facilities such as multistory parking structures, and even in outdoor applications such as sports grounds and parks. It also complies with IP66 Dustproof and Waterproof Standards.
| Rated | 60W |
|---|---|
| Rated Impedance | 100V line: 170Ω (60W), 330Ω (30W), 670Ω (15W), 1.3kΩ (7.5W) 70V line: 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W) |
| Sensitivity | 100 dB (1 W, 1 m) (1 kHz - 10 kHz, pink noise) |
| Frequency Response | 100 Hz - 20 kHz |
| Speaker Component | Low frequency: 16 cm (6") cone-type, High frequency: 2.5 cm (1") tweeter |
| Directivity Angle | Horizontal: 90°, Vertical: 80° |
| Operating Temperature | -10° C to +50° C (14° F to 122° F) |
| Dust/Water Protection | IP66 |
| Connection | Speaker cable (Hot: Black, Com: White) |
| Finish | Enclosure: ABS resin, black (RAL 9011 equivalent), paint Punched net: Steel plate, black (RAL 9011 equivalent), paint Bracket: Stainless steel, black (RAL 9011 equivalent), powder coating |
| Optional | Speaker mount bracket: SP-201, Pole band: YS-60B, Speaker stand: ST-34B |
| Dimensions (H x W x D) | 12.2" (310 mm) x 15.28" (388 mm) x 14.45" (367 mm) |
| Weight | 16.75 lbs (7.6 kg) |
