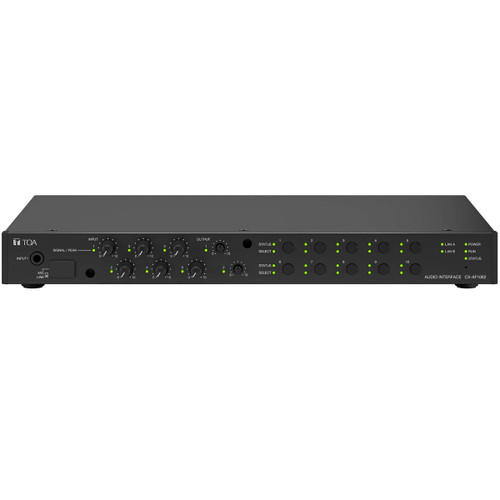

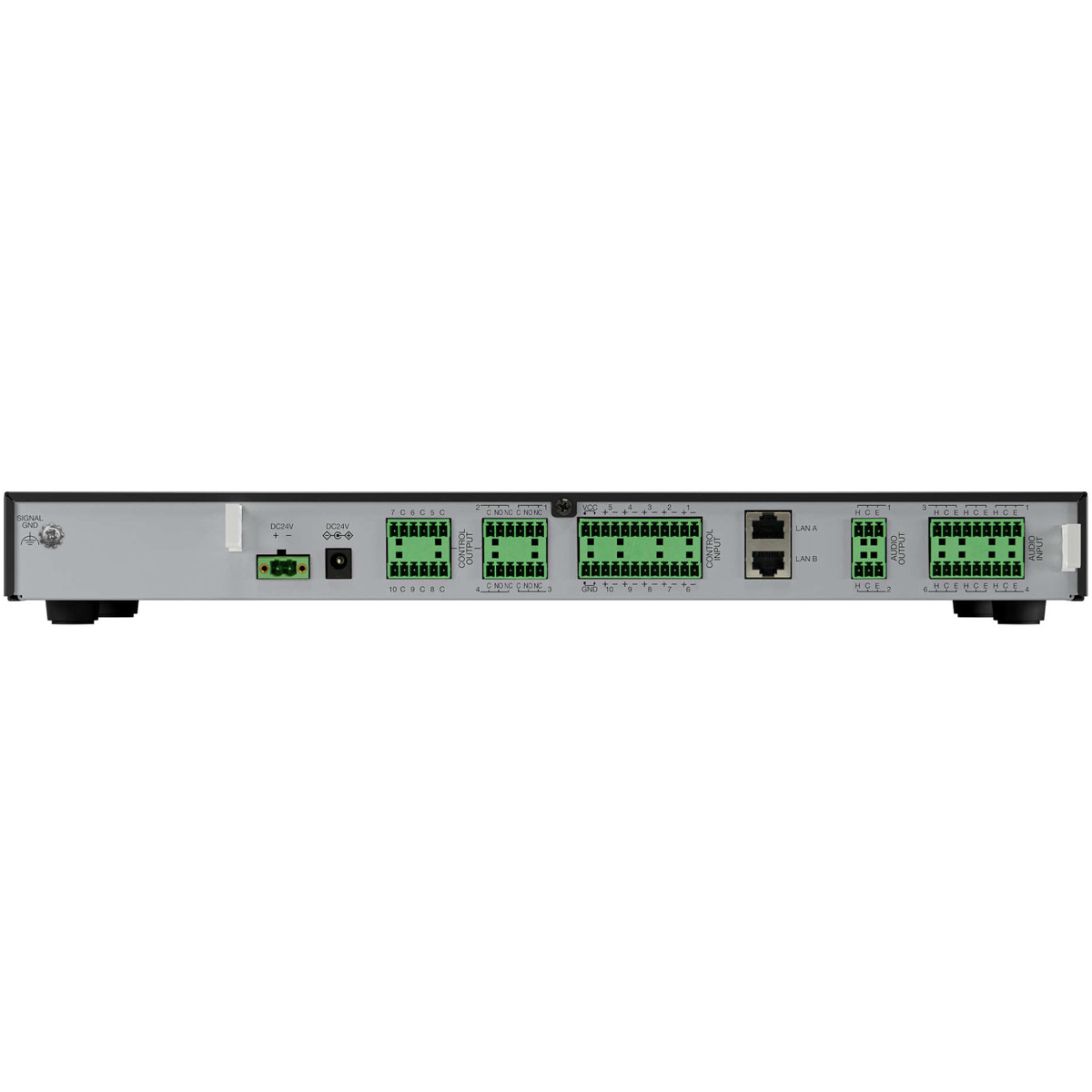

TOA CX-AF1062 6-Input/2-Output Balanced Audio Interface

The CX-AF1062 is a professional audio interface designed for the TOA CX-1000 IP communication system, enabling centralized or decentralized audio distribution across a network. It supports six balanced audio inputs and two balanced outputs, allowing microphones and external audio sources to connect directly to intercom stations or amplifier units.

The unit features built-in memory for chime playback and emergency voice broadcasts. Advanced DSP functions, including gain adjustment, EQ, compression, automatic gain control, trim, and VOX gate, provide precise sound management for each channel. Front-panel volume knobs and software controls ensure accurate level adjustments, while ten direct keys with LED indicators allow immediate activation of announcements.

Designed for versatile installation, the CX-AF1062 can be used on a desktop, mounted in a standard rack, or installed on a wall. It also includes ten control inputs and ten control outputs for integration with external devices. Dual RJ45 ports support unicast or multicast audio transmission over LAN or WAN networks, making the CX-AF1062 ideal for commercial, institutional, and emergency notification applications.

Features

Features

6 Balanced analog audio inputs, 2 balanced audio outputs
Compatible with TOA CX-1000 IP communication systems
Built-in memory for chime and emergency voice broadcasts
DSP processing: Gain, EQ, Compressor, AGC, Trim, VOX Gate
Independent volume control for all channels via front panel or software
Ten direct keys with LED indicators for quick operation
Ten control inputs and ten control outputs for external integration
Dual RJ45 network ports, supporting unicast and multicast
Desktop, rack, or wall mountable design

Specification

Power Source	24V DC (operating range 21.6-26.4V DC)
Current Consumption	340 mA
Power Consumption	8W
Audio Inputs	6 channels, selectable -60 dB/0 dB, 600Ω transformer-balanced; 3 channels, 0 dB, 10 kΩ electronically-balanced
Audio Outputs	2 channels, 0 dB, 10 kΩ electronically-balanced
Frequency Response	200 Hz - 16 kHz
Signal to Noise Ratio	≥60 dB
Distortion	≤1%
Volume Control	Audio input x6, audio output x2
Signal Processing	Input: Gain, EQ x2, Comp, AGC, Trim, Gate (VOX) Output: Gain, EQ x7
Network Interface	100BASE-TX, dual RJ45, TCP/IP, UDP, RTP, RTSP, Multicast & Unicast
User Controls	10 direct keys, Reset key, Input level selector
Control Input	10 channels, no-voltage contact, 24V DC max
Control Output	4 relay outputs (30V DC/1A), 6 open collector outputs (30V DC/100 mA)
Mounting	Desktop, rack, or wall (optional brackets required for rack/wall)
Dimensions (H x W x D)	1.74" (44.3 mm) x 16.54" (420 mm) x 11.2" (284.5 mm)
Weight	6.83 lbs (3.1 kg)
