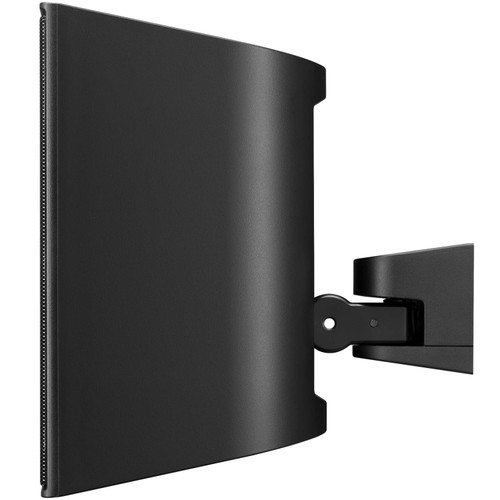

The TOA F-05BT is a premium 5-inch 2-way surface mount speaker with 120W program power and selectable 70V/100V/8-ohm operation. Its compact black enclosure delivers clear music and intelligible speech for retail, hospitality, offices, schools, conference rooms, and other commercial audio installations.

Description

TOA F-05BT 5-Inch 2-Way Surface Mount Speaker System

The F-05BT is a compact 5-inch 2-way surface mount speaker system designed to deliver high-quality sound for a wide range of commercial audio applications. Engineered for both foreground and background music as well as clear public address announcements, it combines excellent acoustic performance with a sleek, modern black enclosure that blends seamlessly into retail stores, restaurants, hotels, offices, educational facilities, conference rooms, and other commercial spaces.

Designed for maximum installation flexibility, the F-05BT supports 70V, 100V, and 8-ohm operation, allowing it to integrate easily into both distributed and low-impedance sound systems. The included mounting hardware features a convenient temporary hanging mechanism that enables a single installer to safely suspend the speaker while completing wiring and final positioning. Its adjustable mounting bracket provides flexible aiming for optimal sound coverage on walls or ceilings, making installation faster, safer, and more precise.

Built for dependable long-term performance, the F-05BT features a high-performance 2-way design that delivers balanced, natural audio with excellent speech intelligibility and detailed music reproduction. Its durable construction, versatile mounting options, and attractive appearance make it an ideal solution for permanent commercial installations where premium sound quality, reliability, and professional aesthetics are equally important.

Features

  • 5-inch 2-way surface mount speaker system
  • 120W continuous program power handling (8 ohms)
  • Selectable 70V, 100V, and 8-ohm operation
  • Designed for foreground/background music and paging
  • Wide, balanced sound reproduction with excellent speech intelligibility
  • Compact black enclosure blends into commercial interiors
  • Temporary docking feature simplifies single-person installation
  • Adjustable mounting bracket for wall and ceiling applications
  • Suitable for retail, hospitality, restaurants, offices, schools, and conference rooms
  • Durable construction for reliable long-term commercial use

Specifications

Enclosure Bass-reflex type
Rated Input 30W (100V line, 70V line)
Power Handling Rated noise power: 60W (8Ω)
Continuous program: 120W (8Ω)
Rated Impedance
100V line: 330Ω (30W), 1 kΩ (10W), 3.3 kΩ (3W), 10 kΩ (1W)
70V line: 170Ω (30W), 330Ω (15W), 1 kΩ (5W), 3.3 kΩ (1.5W),10 kΩ (0.5W)
Sensitivity 90 dB (1W, 1 m) at installation in 1/2 free sound field
Frequency Response 60 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
Crossover Frequency 4.5 kHz
Directivity Angle Horizontal: 100°, Vertical: 100°
Speaker Component Low frequency: 13 cm (5") PP cone-type
High frequency: 25 mm (1") dome tweeter
Input Terminal Push-in Terminal
Installation Environment Indoor installation
Operating Temperature -10°C to +50°C (14°F to 122°F)
Finish Enclosure: HIPS, black (RAL 9011 equivalent), paint
Grille: Aluminum, black (RAL 9011 equivalent), paint
Speaker bracket: Die-cast aluminum, black (RAL 9011 equivalent), paint
Base bracket: Steel plate, t4, black (RAL 9011 equivalent), paint
Base bracket cover: HIPS, black (RAL 9011 equivalent)
Included Accessories Speaker bracket x1, Base bracket x1, Base bracket cover x1, Bracket fixing screw set x1
Optional Accessories Adapter plate: HY-F05B
Speaker stand: ST-34B Note: K&M 19780 or K&M 19610 is required
Dimensions (H x W x D) 10.79" (274 mm) x 6.38" (162 mm) x 6.46" (164 mm)
Weight 5.95 lbs (2.7 kg)
