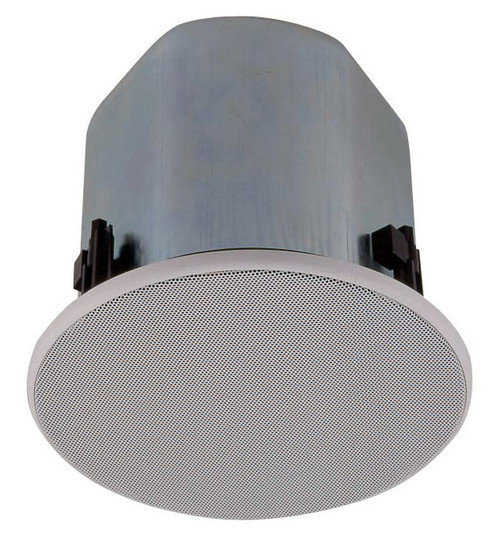

TOA F-2322C In-Ceiling Speaker

Name: TOA F-2322C In-Ceiling Speaker
Brand: TOA Electronics
SKU: TOA-F-2322C
Price: 157 USD
Availability: InStock

Write a Review

Part #:

F-2322C

Model #:

F-2322C

Current Stock:

MSRP: $194.00

$157.00

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The TOA F-2322C In Ceiling Speaker covers an extremely wide area and can be used for 25, 70 and 100 V line applications. Well-balanced sound can be heard uniformly at any location.

Description

TOA's F-2322C In Ceiling Speaker provides well-balanced audio reproduction without treble attenuation over an expanded listening area thanks to the extra-wide dispersion characteristics that are part of the overall speaker design. Perceived speaker directionality and beaming tendencies are minimized, resulting in a natural, well-balanced sound over a wide area at all levels. Conventional speakers exhibit high frequency rolloff characteristics as the distance between speaker and listener increases.

Features

Ported bass-reflex design
5" full-range driver
Frequency Response: 70 to 20k Hz
Wide-dispersion: 170º conical (1-4k Hz avg.)
Sensitivity: 90 dB SPL (1 W, 1 m)
Continuous Power Handling: 120 W (8 ohms)
Built-in 25/70.7/100 V transformer (30 W max.) with 8/16 ohm direct modes
Convenient power tap selector on front baffle
Metal back-can and safety cable
UL Compliant for Air-Handling Spaces (UL2043)
Removable terminal block with loop-through terminations
Low-profile, paintable grille
Overload protection circuitry
Mounting C-ring included

Specifications

Enclosure	Bass reflex type
Rated Input	30 W (High Impedance)
Power Handling Capacity	Continuous pink noise: 60 W (8 Ω), 30 W (16 Ω)Continuous program: 120 W (8 Ω), 60 W
Impedance	Specifications
100 V line	330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line:	170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
25 V line:	170 Ω (3.7 W), 330 Ω (1.9 W), 1 kΩ (0.6 W), 3.3 kΩ (0.2 W),10 kΩ (0.06 W)
Sound Pressure Level	90 dB (1 W, 1 m)
Frequency Response	70 – 20,000 Hz (–10 dB), 50 – 20,000 Hz (–20 dB) at installation in 1/2 free sound field
Speaker Component	12 cm (5") cone-type
Mounting Hole	ø200 mm (7 7/8") Maximum ceiling thickness: 37 mm (1 29/64")
Input Terminal	Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
Usable Cable (Solid copper wire, Stranded copper wire)	ø0.5 – ø1.6 mm (equivalent to AWG 24 – 14), 0.2 – 2.5 mm2 (equivalent to AWG 24 – 14)
Finish (Enclosure)	Steel plate, plating
Finish (Baffle)	Fire-resistant ABS resin (resin material grade: UL-94 V-0 orits equivalent), black
Finish (Rim)	Fire-resistant ABS resin (resin material grade: UL-94 V-0 orits equivalent), white, paint
Finish (Punched net)	Steel plate, white, paint
Weight	3.7 kg (including mounting accessories)
Dimensions	ø230 mm (9 1/16") x Depth 200 mm (7 7/8")
