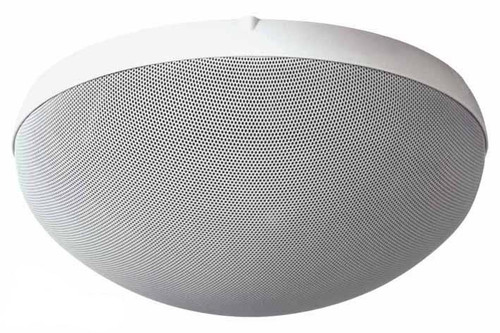

TOA H-2WP Weather Proof Wall Ceiling Mount Speaker

Part #:
H-2WP EX
Model #:
H-2WP
MSRP: $352.00
$285.00
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
THE H Series Interior Design Speakers are the latest example of TOA’s modern, innovative approach to commercial speaker design. The unique, stylish appearance and superb sound quality of the three new models, the H-1, H-2 and H-2WP.

Description

THE H Series Interior Design Speakers are the latest example of TOA’s modern, innovative approach to commercial speaker design. The unique, stylish appearance and superb sound quality of the three new models, the H-1, H-2 and H-2WP, provide a welcome alternative to conventional wall-and ceiling-mount speakers. Applications include speaker systems for houses of worship, hotels, offices, museums, restaurants, retail stores, residential spaces and many others. The H-2WP is a weather-proof version of the H-2 for outdoor wall-mount applications such as terraces, gardens, patios and swimming pools.

The H Series Minimum Reflection design significantly reduces sound wave reflections and the resulting sound coloration that occurs with conventional bracket-mounted "box" type speakers. Wall- or ceiling-mount installation is fast and easy using standard electrical gang-boxes, and you can rotate and aim the loudspeaker components without altering the enclosure’s external appearance. Each H Series speaker has a paintable grille and features a high quality Ferrofluid-cooled dome tweeter, Neodymium woofer, 70.7/100 V matching transformer and removable terminal block. 900MK2 Processor Modules are also available for convenient system equalization using the industry-standard TOA  900MK2 Series Mixer/Amplifiers.

Features

  • Sleek, Stylish Appearance blends well with modern architecture for background/foreground music and paging systems
  • Wide Variety of Applications including wall- or ceiling-mount speaker systems for houses of worship, hotels, museums, offices, restaurants, retail stores and residential spaces
  • Weather-Proof Version Available for outdoor applications such as terraces, gardens, patios and swimming pools
  • Minimum Reflection Design reduces sound wave reflections typical of conventional bracket-mounted “box” type speakers
  • Loudspeaker Components Rotate to allow flexible aiming without altering the enclosure's external appearance
  • 1" balanced-dome tweeter, Ferrofluid-cooled
  • 4" cone woofer with Neodymium magnets for improved low frequency response
  • Built-In 70.7/100 V Matching Transformer (12 W max.) for distributed speaker systems
  • Protection Circuit to prevent loudspeaker damage from excessive input
  • Built-In Passive Crossover with optimized filter slopes
  • High Power Handling: 120 W for the (Continuous Program)
  • Fast and Easy Installation using supplied mounting hardware
  • Push-On Grilles with Paintable Finish allow custom-matching to any environment
  • Removable Terminal Block accepts up to AWG #14 wire with loop-through terminations for distributed speaker systems
  • Convenient System Equalization E-05R Equalization parameters for DACsys II or similar digital signal processors also available

Specifications

Enclosure Type Sealed type
Power Handling 120W (continuous program/4Ω)/40W (continuous pink noise/4Ω)
Rated Input 12W (16Ω, high impedance)
Rated Impedance 4Ω or 16Ω/100V line; 830Ω (12W), 1.7kΩ (6W), 3.3kΩ (3W)/70V line; 420]
Sound Pressure Level 88dB (1W/ 1m), mounted in half-opened space
Frequency Response 100 - 20,000Hz
Speaker Element Low frequency; 10cm cone woofer (neodymium magnet)/High frequency; Balanced dome tweeter
Input Terminal Detachable screw terminal, (+)/(-) 2 each (for bridge connection)
Usable Cable Solid cable, stranded cable: 0.2 - 2.5mm2 (AWG No. 24 - 14 equivalent)
Finish Grille; stainless plate, white paint/Frame; ABS resin, white/Base Frame; stainless plate
Accessory Base Frame ×1
Usable Electrical Box 1-gang size switch box (with cover)
Weight 2.1kg (including Base Frame)
Dimensions (W × H × D) ø268 × 111mm
Shipping Weight 6.4 lbs
