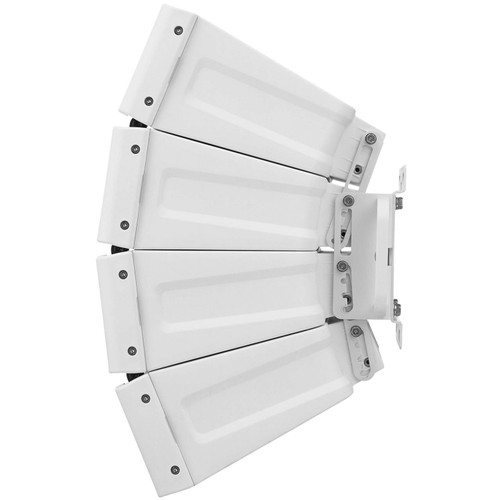

TOA HX-5W-WP 2-Way 600W Weatherproof Compact Line Array Speaker System - White

Part #:
HX-5W-WP
Model #:
HX-5W-WP
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The TOA HX-5W-WP is a white 2-way 600W weatherproof compact line array speaker system designed for clear speech and natural music reproduction. It features adjustable 15° to 60° dispersion, an IPX4-rated enclosure, and stackable array capability for professional indoor and outdoor installations.

Description

TOA HX-5W-WP 2-Way Weatherproof Compact Array Speaker

The HX-5W-WP is a professional 2-way compact line array speaker system in white, engineered to deliver exceptional speech intelligibility and natural music reproduction in acoustically challenging environments. Designed with TOA's advanced constant directivity technology, it provides consistent sound coverage across a wide frequency range while allowing the horizontal dispersion angle to be configured to 15°, 30°, 45°, or 60° for optimal performance. Its driver configuration combines one 4.72-inch low-frequency cone driver with three 1-inch balanced dome tweeters, producing highly focused, evenly distributed audio that minimizes reflections and enhances clarity in spaces with long reverberation times or high background noise.

Delivering 600W continuous program power at 8 ohms, the HX-5W-WP supports stackable line array configurations of up to four speaker modules for increased output and extended coverage. Its IPX4-rated weatherproof enclosure provides reliable protection against rain and moisture, making it ideal for indoor and outdoor installations such as houses of worship, auditoriums, transportation terminals, stadiums, convention centers, and other commercial venues where controlled coverage, durability, and outstanding audio performance are essential.

Features

  • 2-way compact line array speaker system for professional sound reinforcement
  • 600W continuous program power handling at 8 ohms
  • One 4.72-inch low-frequency cone driver and three 1-inch balanced dome tweeters
  • Adjustable horizontal dispersion angles of 15°, 30°, 45°, and 60°
  • Constant directivity across a wide frequency range
  • Stack up to four speaker modules for expanded line array systems
  • IPX4-rated weatherproof enclosure for outdoor installations
  • Excellent speech intelligibility in reverberant and high-noise environments
  • Ideal for indoor and outdoor commercial audio applications
  • White finish

Specifications

Power Consumption Continuous pink noise: 200W, Continuous program: 600W
Impedance 8Ω
Sensitivity 96 dB (60° mode), 97 dB (45° mode), 98 dB (30° mode), 99 dB (15° mode)
Frequency Response

95 Hz - 20 kHz (-10 dB) (60° mode), 100 Hz - 20 kHz (-10 dB) (45° mode), 105 Hz - 20 kHz (-10 dB)

(30° mode), 110 Hz - 20 kHz (-10 dB) (15° mode)

Crossover Frequency 4 kHz
Directivity Angle

Horizontal: 100° (over 2,000 Hz)

Vertical: 60° (over 800 Hz), 45° (over 1.2 kHz), 30° (over 1.6 kHz), 15° (over 3.2 kHz) variable

Speaker Component Low frequency: 12 cm cone-type x 4, High frequency: Balanced dome-type x 12
Speaker Cable 2-core cable with diameter of 6 mm
Dust/Water Protection IPX4 (Install with every speaker module downward)
Installation Environment Indoor installation, under-eave installation
Operating Temperature -15°C to +50°C
Finish

Enclosure: Polypropylene, white

Punched net: Surface-treated steel plate, white, rust proof coating

Enclosure Sealed type
Included Accessories Hanging bracket x 2, Hex. wrench x 1
Optional Accessories

Matching transformer: MT-200

Speaker mounting bracket: HY-PF1WP, HY-CW1WP, HY-WM1WP, HY-WM2WP, HY-CN1B-WP

Dimensions (H x W x D) 21.5" (546 mm) × 16.1" (408 mm) × 13.47" (342 mm)
Net Weight 35.27 lbs (16 kg)
