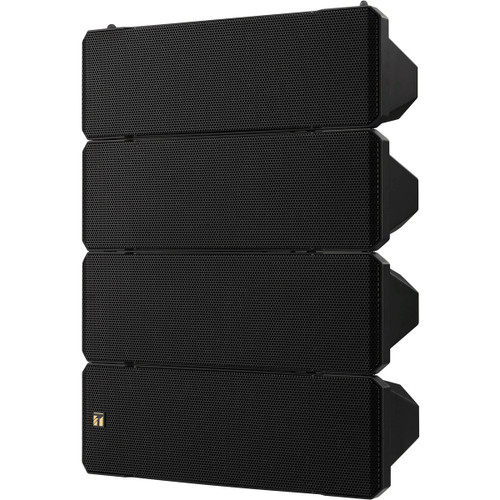

TOA HX-7 Variable Dispersion Speaker 750 Watts 75 Hz - 20 kHz - Black

Part #:
HX-7B
Model #:
HX-7
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The TOA HX-7B is an innovative modular speaker design that offers remarkable versatility for use in public address systems of different venues, the HX-7 offers high quality audio reinforcement even in venues with acoustic difficulties.

Description

TOA HX-7B Variable Dispersion Speaker

The TOA HX-7 is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in vertical directivity. Its adapted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise.

The HX-7 expands the HX Series with a larger, more powerful configuration. The HX-7 adds true line array performance to its already impressive range of configurations. Its improved hi-frequency driver compliment improves output, power handling, and provides enhanced intelligibility within the vocal range. Multiple HX-7's may be stacked together vertically for increased power handling and distance coverage. Like its smaller sibling, the HX-5, the HX-7 offers flexibility not available with other "single-box" speaker products.

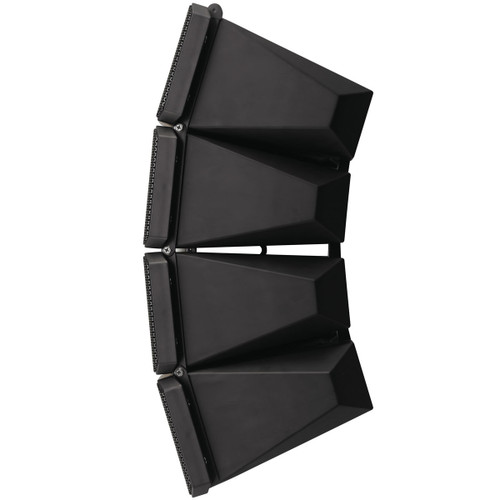

The HX-7 variable dispersion line array with SYNC-Drive waveguide technology utilizes its award winning enclosure design, employing four modules per unit, to allow precise adjustment of sound dispersion angles of 0 - 15 - 30 and 45 degrees. Offering pristine clarity in a wide range of applications from sports venues, auditoriums, concert hall and challenging houses of worship. With the HX-7 you're getting affordable quality and stellar performance. What you get is all that can be heard, from a whisper to a scream, TOA has it covered.

Applications Include:

  • Churches
  • Auditoriums
  • Performance Spaces
  • Gymnasiums
  • Sports Arenas
  • Concert Halls

Features

  • 4 cell configuration each incorporating:
    • (2) 5" Low-frequency drivers
    • (1) Center-mounted, waveguide-loaded, 1"-exit compression driver
  • Flexible vertical angle adjustment between 0° and 45° (60° with second HX-7 and optional adapter)
  • Power handling: 750W Continuous Program @ 8 Ohms
  • 100dB sensitivity (1W @ 1m)
  • Optional hardware for stand, wall, ceiling and flown installations
  • Black or White and weather-proof (WP) versions available

Specifications

Enclosure Bass-Reflex Type
Power Handling Capacity Continuous pink noise: 250W (IEC60268-5: 350W)
Continuous program: 750W
Rated Impedance
Sensitivity 100 dB (1 W, 1 m)
Frequency Response 75 Hz – 20 kHz
Crossover Frequency 1.7 kHz
Directivity Angle Horizontal: 100º
Vertical : Depending on directivity angle mode
Speaker Component Low frequency : 13 cm (5.5") cone-type x 8
High frequency: Wave front control horn with compression driver x 4
Input Terminal Speakon NL4MP x 2 and M4 screw terminal, distance between barriers: 9 mm (0.35")
Enclosure Polypropylene
Punched Net Surface-treated steel plate
Suspension Bracket Steel plate, t 3.0
Dimensions (H x W x D) 26.14" (664 mm) x 19.57" (497 mm) x 10.79" (274 mm)
Weight 66.14 lbs (30 kg)
