TOA M-03P High Impedance Microphone Input (Discontinued)

- Item has been deleted successfully.

Description

Details

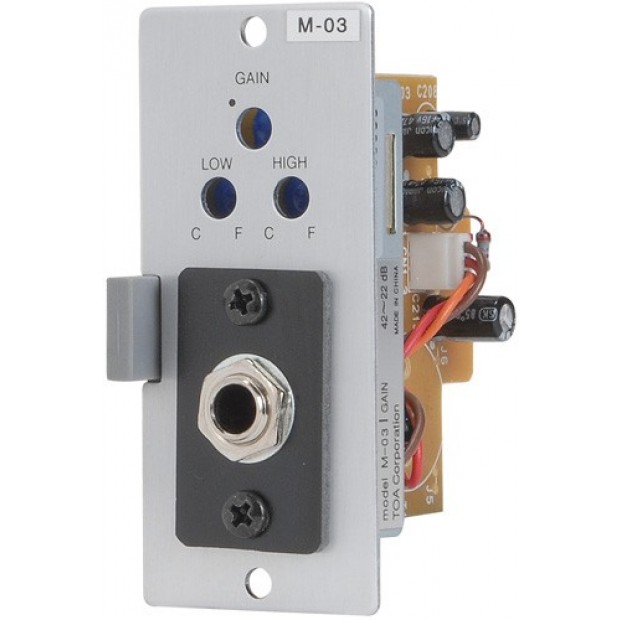

The M-03P is a microphone input module to be used in conjunction with the 900 series components and other TOA's equipment. It has an unbalanced microphone input with φ6.3 (1/4") phone jack connector, and gain and high and low cut filter tone controls.

Features

Features

Controls/Functions:
- Gain Control
- High and Low Cut Filters
Performance Input: 50 k ub
Input Sensitivity: -60 ~ -40 dBu
Gain (Adjustable): 22 ~ 42 dB
Maximum Input: -8 dB
Signal to Noise (S/N): 70 dBu (S/N)
Physical Connector: M-03P: 1/4" Phone Jack

Specification

Performance Input	50 k ub
Gain (Adjustable)	22 ~ 42 dB
Maximum Input	-8 dB
Signal to Noise (S/N)	70 dBu (S/N)
Physical Connector	1/4" Phone Jack
Power Source	24 V DC
Current Consumption	9 mA
Input Sensitivity	-50 dBu (rated output: -20 dB), adjustable -62 to -42 dB
Input Impedance	50 Ω, unbalanced
Frequency Response	20 Hz - 20 kHz ±1.5 dB
Distortion	0.05 % or less (1 kHz , output: 0 dB)
Noise Level	-86 dB (20 Hz - 20 kHz BPF), input equivalent noise: -116 dB
Connector	ø6.3 (1/4") Phone Jack (3P)
Dimensions (H x W x D)	1.38" (35.1 mm) X 3.07'' (77.98 mm) X 3.46" (87.89 mm)
Weight	Max. 0.14 lb.(65 g)
