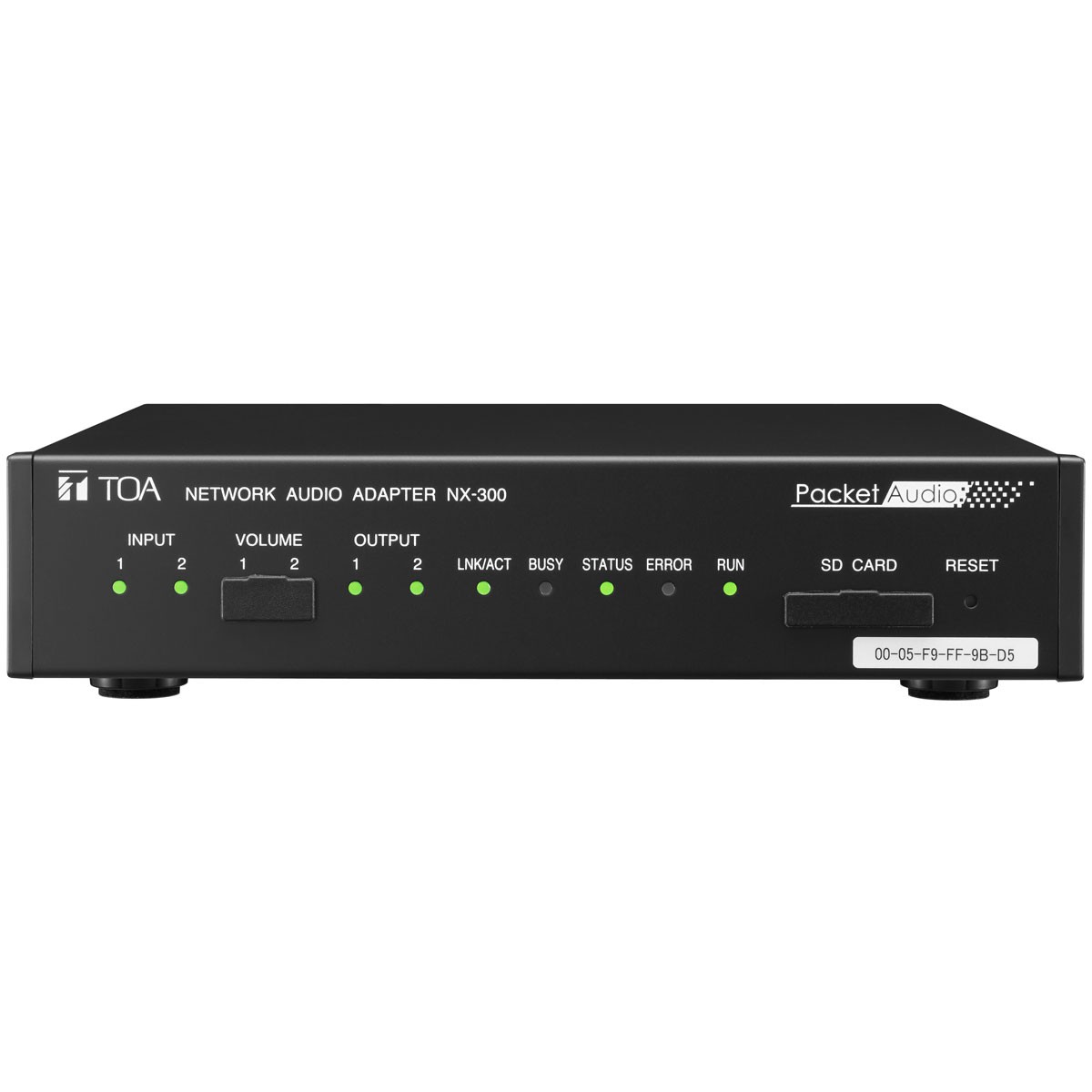

The NX-300 uses an advanced implementation of its Packet Audio™ streaming technology (same as NX-100) with improved broadcast capacity and system expandability, WAV file record functions and addition of other advanced features. The NX-300 can be used to create wide area PA and announcement systems over any IP network. Ideal for railway systems, airports, regional business broadcasts, Bank ATMs, parking system communications and industrial facilities.
| Power Source | Supplied from an external 24 V DC (21.6 − 26.4 V) power supply or AC adapter AD-246 (option) or the equivalent |
|---|---|
| Power/Current Consumption | 10W (AC operation), 310 mA (DC operation) |
| Audio Input | 2 channels, balanced (transformer isolated)/unbalanced changeable,2 kΩ, LINE/MIC changeable, volume adjustable Rated input: −20 dB*1 (LINE)/−60 dB (MIC) PAD function (–16 dB ), removable terminal block (6 pins) |
| Audio Output | 2 channels, balanced (transformer isolated), 600 Ω or less Rated output: 0 dB (unbalanced input)/–2 dB (balanced input), removable terminal block (6 pins) |
| Frequency Response | 50 Hz – 18 kHz (48 kHz sampling frequency, PCM, 0 to –6 dB deviation referred to 1 kHz) |
| Distortion | 0.2% or less (1 kHz, LINE signal level, 48 kHz sampling frequency, PCM, BPF) |
| Signal to Noise Ratio | 73 dB or more (LINE signal level, at rated output) |
| Separation | 70 dB or more (1 kHz, LINE signal level, BPF) |
| Audio Format | WAV file |
| Number of Storable Audio Files | Max. 8 |
| Storable Time of Audio File | Max. 2 min. per audio file (16 kHz sampling frequency, Sub-band-ADPCM, monaural operation) |
| Control Input | 8 channels, no-voltage make contact input, open voltage: 24 V DC, short-circuit current: 2 mA or less, removable terminal block (9 pins) (Only Channel 8 equipped with failure detection.) |
| Control Input Failure Detection Section | Connection resistance to make the function inactive: 20 kΩ ±5% Connection resistance to make the function active: 10 kΩ ±5% Connector cable: Twisted pair cable (Shielded type is recommended.) Maximum cable distance: 10 m |
| Control Output | 8 channels, open collector output (polarized), withstand voltage: 30 V DC, control current: 50 mA max., removable terminal block (9 pins) 2 channels, relay output (non-polar), withstand voltage: 30 V DC, control current: 500 mA max., removable terminal block (4 pins) |
| Network Section | Network I/F: 10BASE-T/100BASE-TX, Full-duplex/Half-duplex, Auto-negotiation Network protocol: TCP, UDP, ARP, HTTP, RTP, IGMP, FTP, NTP Audio packet transmission system: Unicast (Up to 16 simultaneous transmissions), Multicast (Up to 64 simultaneous transmissions) Connector: RJ45 connector Voice sampling frequency: 8 kHz, 16 kHz, 32 kHz, 48 kHz (controllable on the software) Quantifying bit number: 16 bits Voice encoding method: PCM, Sub-band ADPCM (controllable on the software) |
| Operation | 2 channels, Audio input level control (Convertible to Audio output level control) |
| Indicator | 2 channels, audio input, SIGNAL (green)/PEAK (red), 2 channels, audio output, SIGNAL (green) LNK/ACT (green), BUSY (green), STATUS (green), ERROR (yellow), RUN (green) |
| Setting Switch | Reset, grand lift changeable, audio input 2 channels PAD changeable, audio input 2 channels LINE/MIC changeable |
| SD Section | For log storage (Max. 10000) Media: SD/SDHC card (Max. 32 GB) File system: FAT16, FAT32 • Use only SD memory cards rated at 100mA current consumption or less • No SD card provided |
| Installation Method | Rack, Desk, Surface mount |
| Operating Temperature | −10 to 50 °C (14 to 122 °F) (0 to 40 °C, or 32 to 104 °F, when AC adapter is in use) |
| Operating Humidity | 90% RH or less (no condensation) |
| Finish | Pre-coated steel plate, black, 30% gloss |
| Dimensions (H x W x D) | 1.74" (44.3 mm) x 8.27" (210 mm) x 10.16" (258 mm) |
| Weight | 3.75 lbs (1.7 kg) |
