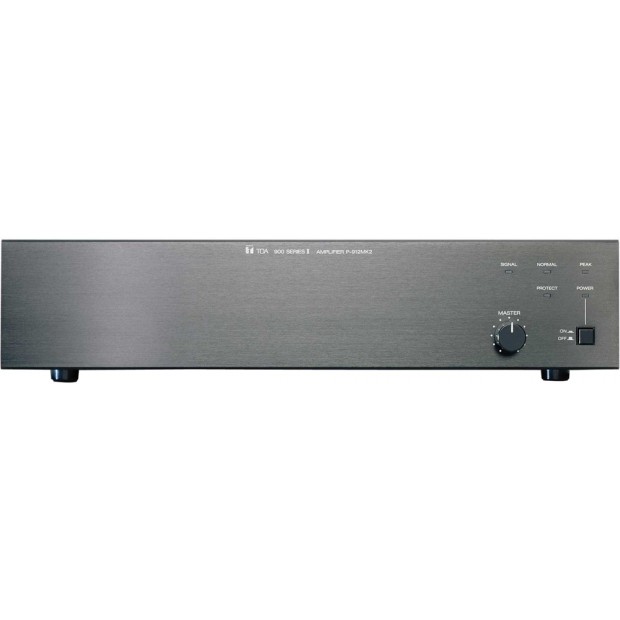

TOA P-906MK2 60W Power Amplifier

Name: TOA P-906MK2 60W Power Amplifier
Brand: TOA Electronics
SKU: TOA-P-906MK2 UL
Price: 756 USD
Availability: InStock

Write a Review

Part #:

P-906MK2 UL

Model #:

P-906MK2

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The TOA 900 SERIES are widely recognized as the industry standard in installed sound system amplification. When reliability and performance are critical such as in paging, music distribution for airport, hospital and industrial sound system.

Description

The P-906MK2 (60W) single channel power amplifier is engineered for high performance with wide frequency response, very low noise and distortion and excellent output regulation. A single module slot allows you to easily configure custom configurations using TOA plug-in modules with an extensive array of features and connector types. Outputs include transformer isolated 25V, 70V and 8 ohm plus a direct low impedance mode if non-transformer operation is required. Other features include a direct input, selectable input sensitivity, low-cut switch and protection circuitry. The 900 Series Power Amplifiers are UL and cUL Listed and carry a five year warranty.

Features

900 Series Power Amplifiers are UL and cUL Listed and carry a five year warranty
Modular design allows fast and easy custom configurations
Engineered for high performance with wide frequency response, very low noise and distortion and excellent output regulation
One Module Slot accepts TOA plug-in modules for unmatched flexibility
60 Watt RMS Output Power
25 V, 70 V and 4/8 Ohm Speaker Outputs with screw terminal connector and protective cover plate
Protection Circuitry prevents potential damage from overload, short-circuit, DC offset or overheating

Front Panel Features:

Master Volume Control
Normal, Peak, Power, Protect, and Signal LEDs provide instantly recognizable status indication

Rear Panel Features:

Direct Input for connecting an external mixer or recording device
20 dB Input Gain Switch for high or low input levels
Low Cut Switch to limit low frequency response
Volume Control Security Cover included (1), model YA-920

Specifications

Output Power	60 W RMS
Power Bandwidth	(D) 20 - 20k Hz, 0.5% THD; (T) 50 - 20k Hz, 0.5% THD
Frequency Response	(D) 20 - 20k Hz, ±1 dB; (T) 20 - 15k Hz, ±1 dB (T) 20 - 20k Hz, +1 dB / -3 dB
Total Harmonic Distortion	0.01% at 1k Hz, rated output
Inputs	1 modular input port, 1 direct input, Use only one of direct input or modular input port
Input Sensitivity & Impedance	Input port: 100 mV or 1000 mV (switchable)/10k Ω Direct input: 100 mV or 1000 mV (switchable)/1
Outputs (T)=Transformer, (D)=Direct	Main (T): 8 Ω, 25 V & 70 V, balanced Main (D): 4 Ω, unbalanced
Output Regulation (1k Hz)	(D): Less than 0.5 dB, no load to full load (T): Less than 1.0 dB, no load to full load
Dynamic Range (Band Pass: 20 - 20k Hz, with Tone Controls centered)	Input level switch in 0 dBV (1000 mV) position: 108 dB Input level switch in -20 dBV position: 90 dB
Indicators	Normal, Peak, Power, Protect, and Signal LEDs
Protection	Self-protection, with internal AC fuse
Power Consumption	100 W
Temperature Range	12° F to 140° F (-10° C to +60° C)
Color	Black
Other Features	Output connects approx. 5 seconds after switching power on
Dimensions (H x W x D)	3.9" (99.1 mm) x 16.5" (420 mm) x 14.1" (358 mm)
Weight (without Modules)	20.1 lbs (9.1 kg)
