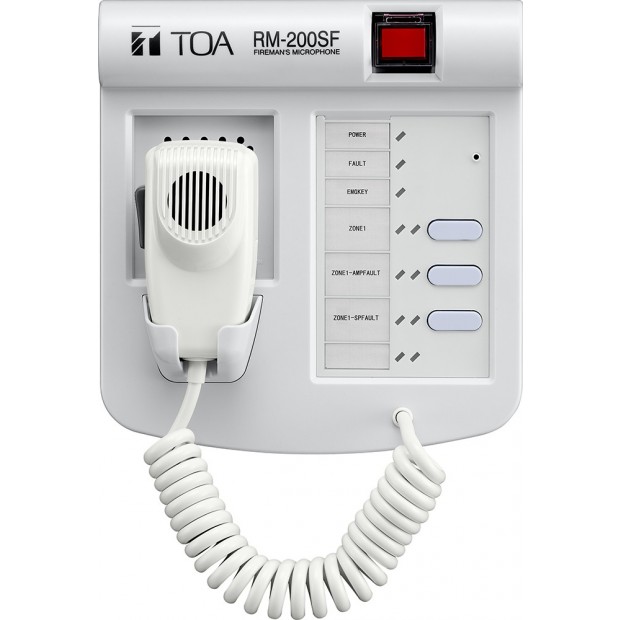

The RM-200SF is a Fireman's Microphone of the matrix system. It is equipped with an Emergency key, permitting it to be used as a remote microphone for emergency broadcast. Zone selection and microphone announcement can be made at the time of emergency broadcast. It offers a surveillance function to detect failures including microphone element failure. The RM-200SF has three function keys that can be set as individual or group selection keys, and each key is linked with the corresponding two indicators. Connecting the optional RM-210 Extension units to the RM-200SF expands the number of function keys and indicators in blocks of ten.- Features
Features
- Zone selection and microphone announcement can be made at the time of emergency broadcast.
- Offers a surveillance function to detect failures including microphone element failure.
- Specification
Power Source 24 V DC (operating range: 15 - 40 V DC, supplied from the audio input unit) Current Consumption 240 mA or less Audio Output 0 dB, transformer-balanced Distortion 1 % or less Frequency Response 200 Hz - 15 kHz S/N Ratio 55 dB or more Volume Control Microphone volume control, Monitor speaker volume control Maximum Cable Distance 800 m (874.89 yd) No. of Connectable Expansion Max. 5 units Monitor Speaker Built inside Operation Emergency key, Function keys, CPU switch, Reset switch Indication Status, Power, Failure, CPU,Selection, Microphone, Broadcast status indicator Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) Operating Humidity 35 % to 80 % RH (no condensation) Finish ABS resin, blueish gray (PANTONE 538 or its equivalent) Dimensions (H x W x D) 8.46" (215 mm) x 7.87" (200 mm) × 3.74" (95 mm) Weight 3.26 lbs (1.48 kg) (with wall mounting bracket unit) - Documents
