TOA TS-770 Series Portable Conference and Meeting System (Discontinued)

By TOA Electronics

TOA TS-770 Series Portable Conference and Meeting System (Discontinued)

Name: TOA TS-770 Series Portable Conference and Meeting System (Discontinued)
Brand: TOA Electronics
SKU: TCSS-TS770SYS

Write a Review

Part #:

TCSS-TS770SYS

Model #:

TCSS-TS770SYS

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Ideal for conferences and meetings in government, corporate, educational and hotel applications. Package Includes: One TOA TS 770 Central Unit. One TOA TS 772 Delegate Station. One TOA TS 773 Standard Microphone. One TOA TS 775 Delegate Station. Easy to use and expand the TS-770 Series is comprised of the TS-770 Central Unit supporting up to 70 chairperson / delegate stations.

Description

The TS-770 Series Conference System is ideal for conferences and meetings in government, corporate, educational and hotel applications. The system provides communications for conferences and boardrooms. The easy to use TS-770 Series is comprised of the TS-770 Central Unit supporting up to 70 chairperson / delegate stations.

The TOA TS-770 Conference System brings a multiple-mode remote conferencing to the meeting room, via a standard telephone line, a mobile phone, or PC-based IP telephony. It provides a full range of features for ensuring clear sound for efficient and effective conferences, and at a remarkably high cost/performance ratio.

The TS-773 is a designed microphone for exclusive use with the conference units of the TS-770 series Conference system. Ring type In-use lamp located at the microphone head permits displaying the operation status of the conference units.

The TS-770 does away with the need for a conference hall with professionally and permanently installed equipment for small-to-medium-sized meetings. Setting up the TS-770 is quick and easy.

Features

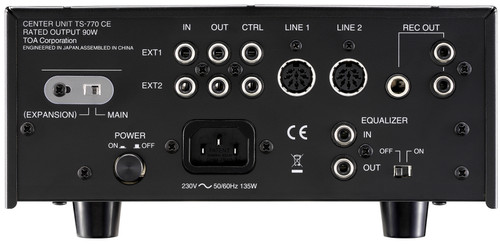

TOA TS 770 Central Unit:

Easy to set up and operate
Up to 70 Chairperson/Delegate stations per TS-700 Central Unit
Supports system expansion up to (3) TS-700 Central Units for a total of 210 Chairperson/Delegate stations in one system
All Microphones ON Record function
External source inputs and PA/record outputs
System Test function
Supports up to (70) TS-771 Chairperson and TS-772 Delegate Stations
Aux, Line and Mic inputs
Up to six simultaneous speakers
All mics open record function
PA/Record output
System Test function
Person speaking automatic Time-Out function (selectable):

OFF
20 seconds
40 seconds

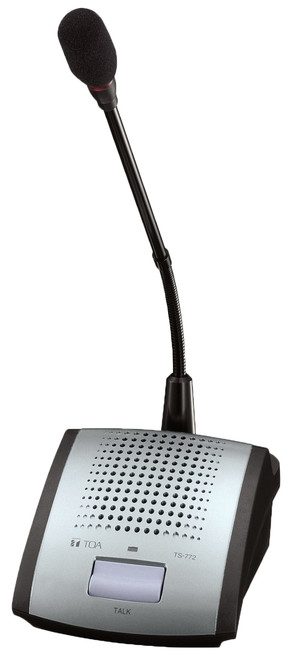

TOA TS 772 Delegate Station:

Easy to set up and operate
All Microphones ON Record function
External source inputs and PA/record outputs
System Test function
Uses (Optional) TS-773 or TS-774 Gooseneck Microphone
3.5mm Headphone and Record Output with volume control
Built-in speaker
Push to talk control
Contact closure output when microphone is active
Can be used for camera call-up, tally or other devices

TOA TS 773 Standard Microphone:

Unidirectional - Electret condenser microphone
Red LED ring light active speech indicator
14.49" Length
Use with TS-771 or TS-772

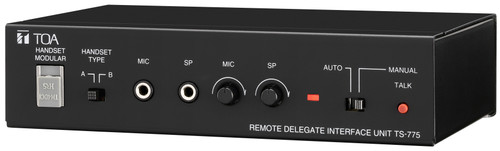

TOA TS 775 Delegate Station:

Easy to set up and operate
Telephone or PC Remote Delegate station operation using the TS-775
All Microphones ON Record function
External source inputs and PA/record outputs
System Test function
Audio Input/Output for local PC connection to a remote PC participant:

PC to PC call connection over network uses third party software/service not provided by TOA
RJ-11 connection provided to connect with handset connector on telephone base unit for calls connected to a remote telephone participant
