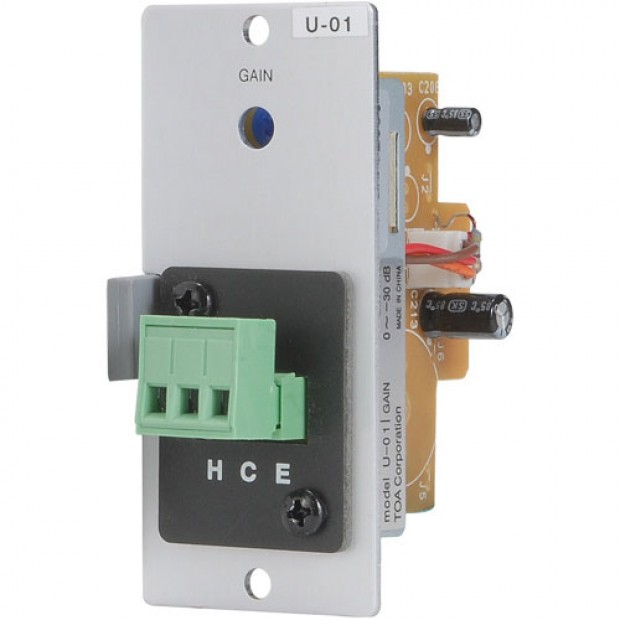

TOA U-01S Unbalanced Line Input Module for unbalanced and line level audio equipment. The U-01S is a line input module to be used in conjunction with the 900 series components and other TOA's equipment. It has an unbalanced line input with removable block connector, and gain control.
| Performance Input | 220 k ub |
|---|---|
| Input Sensitivity | -18 ~ +12 dBu |
| Gain (Adjustable) | -30 ~ 0 dB |
| Maximum Input | +18 dB |
| Signal to Noise (S/N) | 90 dBu (S/N) |
| Physical Connector | Removable Terminal Block |
| Power Source | 24 V DC |
| Current Consumption | 4 mA |
| Input Sensitivity | -20 dB* (Rated output: -20 dB*), adjustable -20 to +10 dB* |
| Input Impedance | 220 kΩ, unbalanced |
| Frequency Response | 20 Hz - 20 kHz ±1.0 dB |
| Distortion | 0.05% or less (1 kHz, output: 0 dB*) |
| Noise Level | -106 dB* (20 Hz - 20 kHz BPF) |
| Connector | Removable Terminal Block (3P) |
| Dimensions (W x H x D) | 1.38" x 3.07" x 3.64" |
| Weight | 0.17 lbs (75 g) |
