Retail Store Audio Solution for Travel Centers
This commercial business sound system solution is perfect for applications that may require indoor-outdoor multi-zone background or foreground music with paging capabilities. This easy to use BGM (background music) system is custom designed for travel centers, food courts, stopping centers, travel plazas, and larger convenience stores, as well as other locations that have fueling stations, parking areas, and attached restaurants. Provide loud and clear announcements and paging at the gas pumps, parking lot or covered outdoor sitting areas, and with the three included wall volume controls you can easily adjust the degree of loudness for 3 separate areas to accommodate your unique space.
This pre-configured convenience store speaker system includes four Yorkville CM5/70 5" 70V in-ceiling speakers, two C120/70 5" 70V surface mount loudspeakers, two C180 weatherproof outdoor paging horns, a Yorkville CA1 70V public address amplifier, one Speco DM520P push-to-talk CB handheld paging microphone, three Atlas Sound AT100D volume controls and the speaker wire needed for installation.
Yorkville CM5/70 Coliseum Mini Series 5" In-Ceiling Speakers
The CM5/70 is a 30W 5" high-performance in-ceiling mount loudspeaker. Ideal for any background music or paging system where superior sound quality is a priority, this speaker is made for louder club or restaurant / retail environments. Includes built-in 70V taps at 5, 10 or 20W as well as optional 8 ohm (30W) operation which means that virtually any amplification or paging system, including the Coliseum CA1 or CA1T can drive the CM5/70.

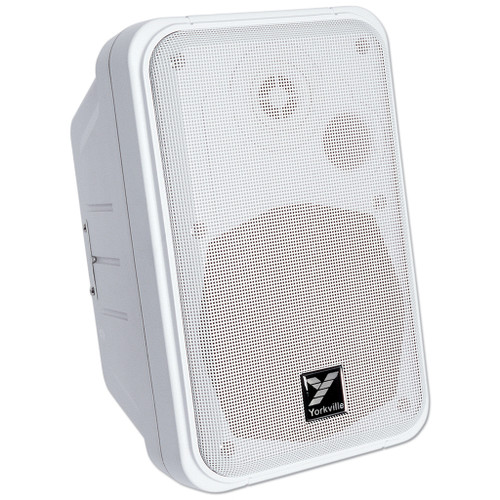

Yorkville C120/70 Coliseum Mini Series 5" Installation Loudspeakers
The Yorkville C120/70 coliseum mini series 5" installation loudspeaker is a high-end, water-resistant speaker featuring specially treated drivers and a sculpted ABS plastic enclosure. This compact speaker is ideally suited for commercial installations, home theatre, home stereo, mobile applications, reference monitor, personal stage monitor and can even be used outdoors. The C120 is a bass reflex enclosure with a tuned port and a 5" woofer, which provides improved bass performance over conventional 5" woofer enclosures. Removing the press-fit grille gives access to the eyeball tweeter, which can be swiveled to suit various listening positions. The C120 will handle 100 Watts of continuous music and is accurate from 75 Hz to over 19 kHz. The integrated 70V 'matching transformer' allows multiple C120/70's to be connected together without danger of overloading the power amplifier due to impedance drop. The user has a choice of three sensitivity settings (10W, 20W, 30W or bypass) selected via a rotary switch located on the rear panel of the speaker, allowing convenient adjustment of the relative volumes of multiple interconnected cabinets.
Yorkville C180 Coliseum Mini Series Outdoor PA Horns
The Yorkville C180 outdoor PA horn has been designed to be installed outdoors year round the C180 is an all weather or all season. These weatherproof, waterproof, high-efficiency horns offer excellent frequency response making them ideal for year round installations in marine environments, athletic events, public safety alert, outdoor marketing, school yards, car lots, background music, absolutely any outdoor event requiring high-quality sound in rain, snow or sun. The C180 is up to the challenge featuring a low reflectance gray plastic horn and is 70 Volt ready with wattage taps at 1, 3, 5, 10, 15 and 30 watts and comes ready to be installed with its own U-bracket.

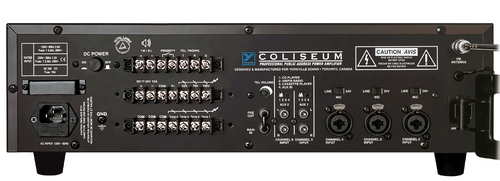

Yorkville CA1 Coliseum Amp Series Installation Public Address 70V Amplifier
Versatile input mixing capabilities make the CA1 the solution for small churches, boardrooms and conference rooms. Unlike most installation amplifiers in this class, user selectable phantom power is available on three channels to drive condenser microphones, the type most commonly used on podiums or as a lavaliere (tie clip) microphone. XLR / TRS balanced combi-jack inputs and attenuated RCA unbalanced inputs ensure that the CA1 system can interface with any source (CD, Cassette, Satellite Tuner, DVD or video system) that your installation may require. Capable of driving either a 4Ω speaker load, or four separate 70V speaker systems (one ‘system’ per zone), the CA1 system delivers 180W (mono). A pre-amp output is available to feed an auxiliary power amplifier or active subwoofer to enhance the system, or to feed video or audio recording equipment.
Speco Technologies DM520P Push-to-Talk CB Handheld Microphone
The Speco DM520P handheld microphone has a 1/4" phono plug for easy installation and is manufactured with 500 ohms impedance. Ideal for CB and professional communications.

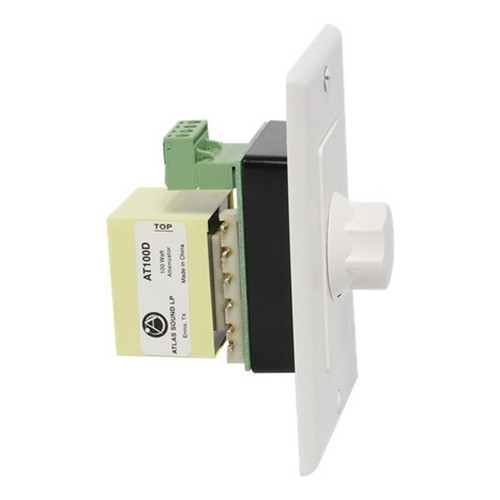

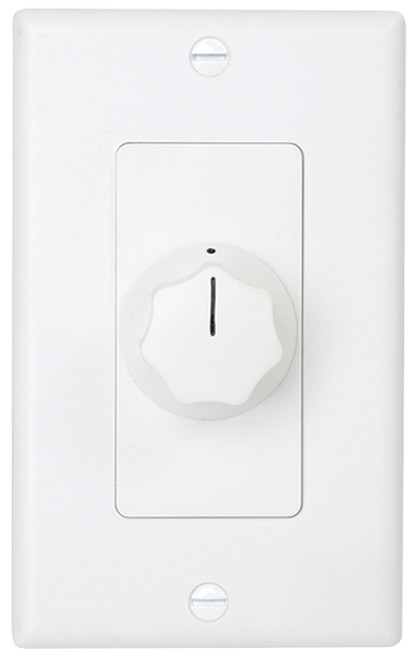

AtlasIED AT100D 100W Decora Plate Mounted Attenuators
The AtlasIED AT100D decora plate mounted attenuator is part of a high-quality auto transformer series that provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block, and comes complete with white and ivory plastic plates with matching skirted knobs.
Not sure if this is the right Retail Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.
